Line connection and line-side power components

3.8 Line reactors

Booksize Power Units

114 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

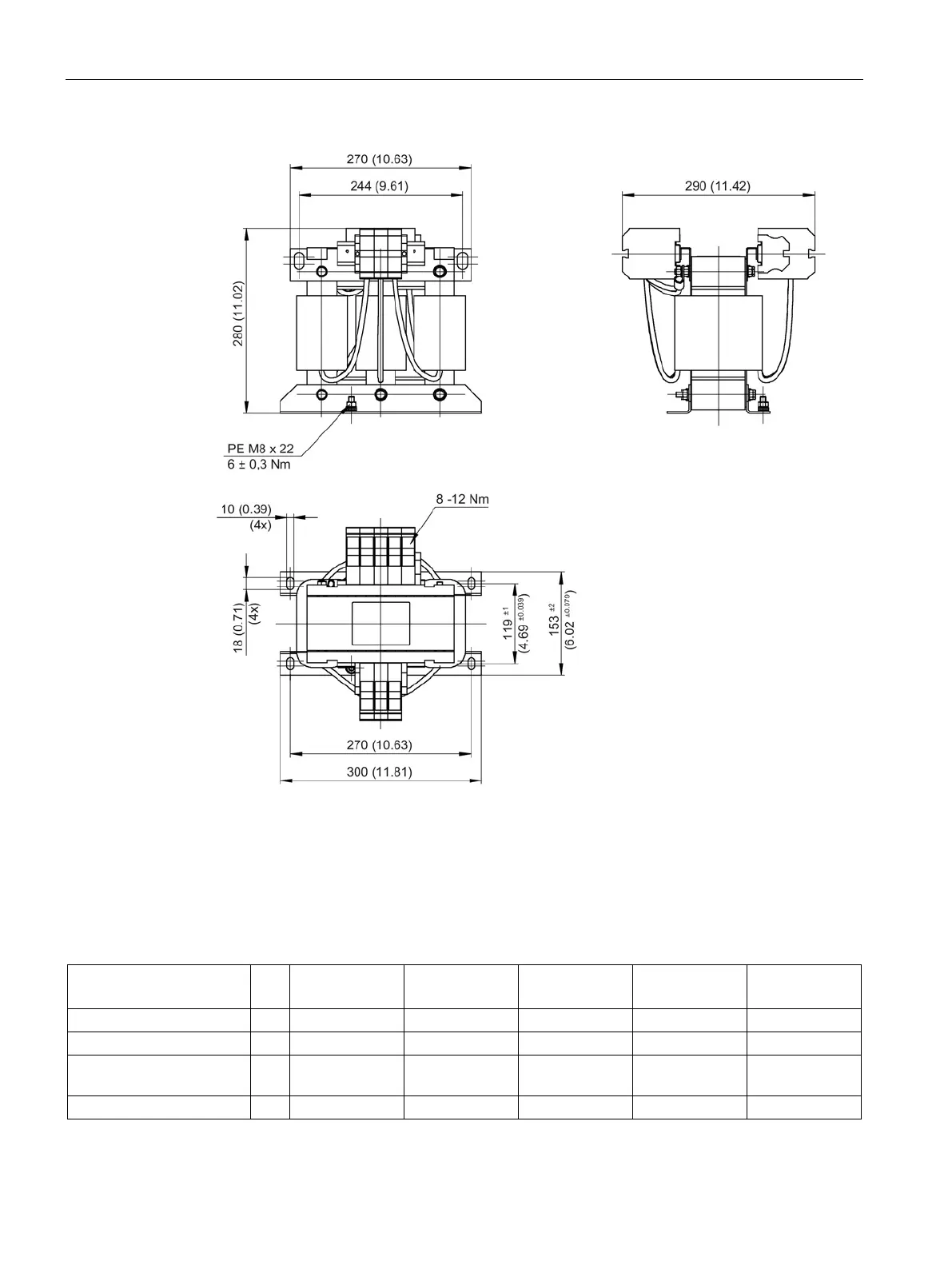

Figure 3-50 Dimension drawing of line reactor for Smart Line Module 55 kW, all dimensions in mm

and (inches)

3.8.6.3

Technical data

Table 3- 21 Technical data of line reactors for the Smart Line Module

6SL3000-

0CE15-0AA.

6SL3000-

0CE21-0AA.

6SL3000-

0CE21-6AA.

6SL3000-

0CE23-6AA.

6SL3000-

0CE25-5AA.

Power

Rated current

rms

103

Power loss (see power

loss tables (Page 756))

W 62 116 110 170 190

Weight

3.7

7.5

9.5
