Siemens SIROTEC User Manual

Line Modules Booksize
4.5 Active Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
199

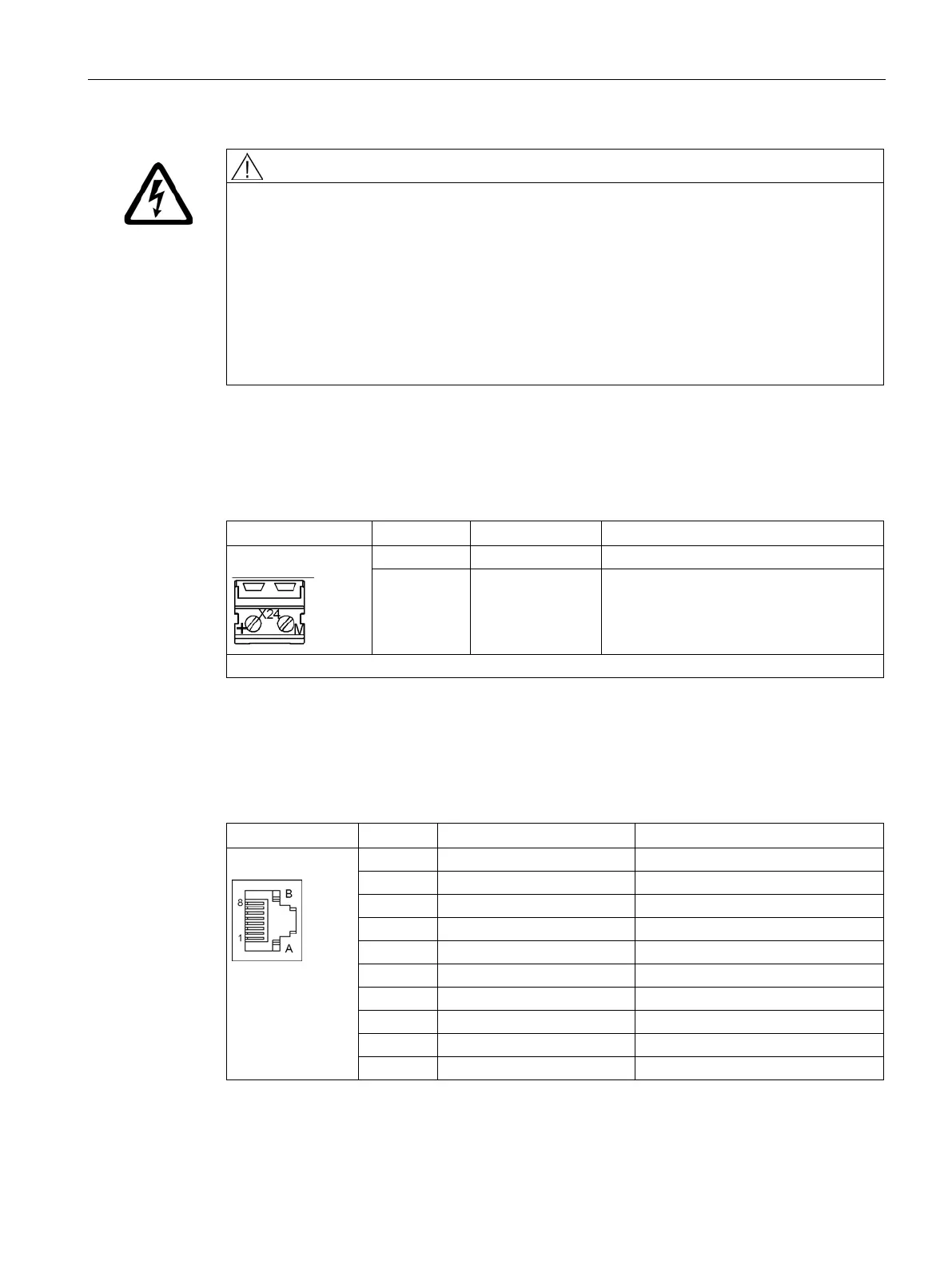

WARNING
Danger to life due to electric shock in the event of voltage flashovers at the temperature
sensor
Voltage flashovers in the signal electronics can occur in motors without safe electrical
separation of the temperature sensors.
• Use temperature sensors that comply with the specifications relating to protective
separation.
• If safe electrical separation cannot be guaranteed (for linear motors or third-party
motors, for example), use a Sensor Module External (SME120 or SME125) or Terminal
Module TM120.
4.5.2.4
X24 24 V terminal adapter
Table 4- 27 X24: 24 V terminal adapter
Terminal
Designation
Technical data
+
24 V power supply
24 V DC supply voltage
M Ground Electronics ground
Type: Screw terminal 5 (Page 730)
The 24 V terminal adapter is included in the scope of supply.
4.5.2.5
X200-X202 DRIVE-CLiQ interfaces
Table 4- 28 X200-X202: DRIVE-CLiQ interfaces
PIN
Signal name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+(24 V)
24 V power supply
B
M (0 V)
Electronics ground
T
he blanking covers for the DRIVE-CLiQ interfaces are included in the scope of delivery.
Blanking cover (50 pcs.) Article number: 6SL3066-4CA00-0AA0
