Siemens SIROTEC User Manual

Line Modules Booksize
4.6 Active Line Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
213
4.6.2.2

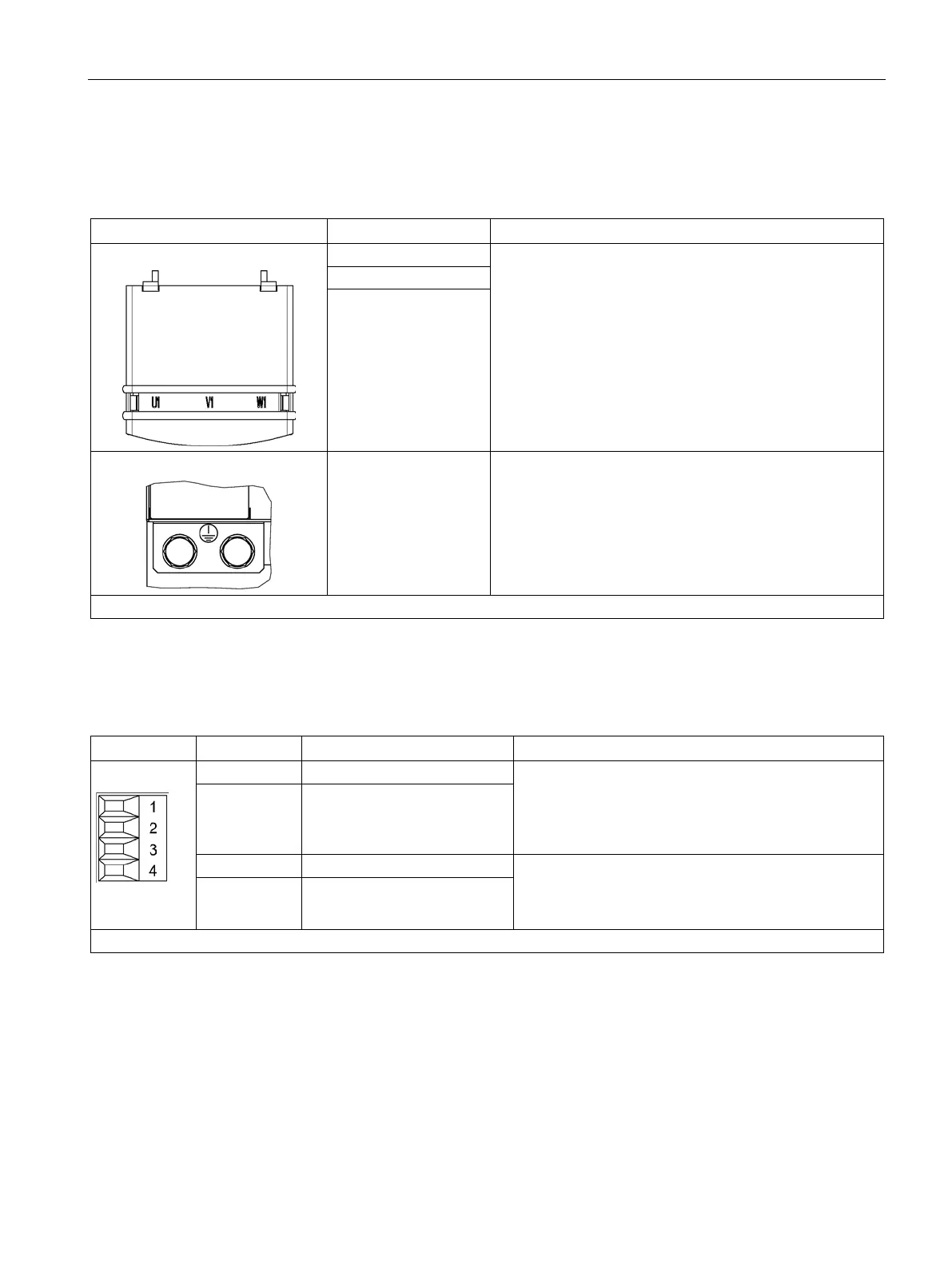

X1 line connection
Table 4- 34 X1 line connection
Terminals
Technical data
U1
Supply voltage:
3 AC 380 V … 480 V, 50 / 60 Hz
Threaded bolts M8 / 13 Nm
1)
V1
W1
PE connection Threaded hole M8 / 13 Nm
1)
1)
For ring cable lugs without insulation (Page 732)
4.6.2.3
X21 EP terminals
Table 4- 35 X21 EP terminal / temperature sensor
Terminal
Designation
Technical data
1
+ Temp
Temperature sensors
1)
: KTY84–1C130
2)
/ PT1000
2)
/
PTC
2)
/bimetallic switch with NC contact
If an Active Interface Module is used, the temperature
input must be connected to the Active Interface Module
sensor (bimetallic switch with NC contact).
2 - Temp
3
EP +24 V (pulse enable)
Voltage: 24 V DC (20.4 ... 28.8 V)
Current consumption, typical: 4 mA at 24 V
Isolated input
4 EP M (Enable Pulses)
Type: Screw terminal 1 (Page 730)
1)
The temperature s
ensor type and the temperature output can be selected by parameter (see the SINAMICS S120/S150
List Manual).
2)
Temperatures are detected but not evaluated in the Active Line Module.
Terminals X21.1 and X21.2
When using an Active Interface Module, its temperature output must be connected at
terminals X21.1 and X21.2.
