Cabinet design and EMC Booksize
12.7 Connection systems
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
729
The motor connector is coded using coding plugs. The coding plugs are included in the
scope of supply of the motor connector. Coding can be used to prevent motor cables being
incorrectly connected, particularly in the case of Double Motor Modules.
The coding of a motor connector is illustrated below, using the example of a connector with
screwed joint.

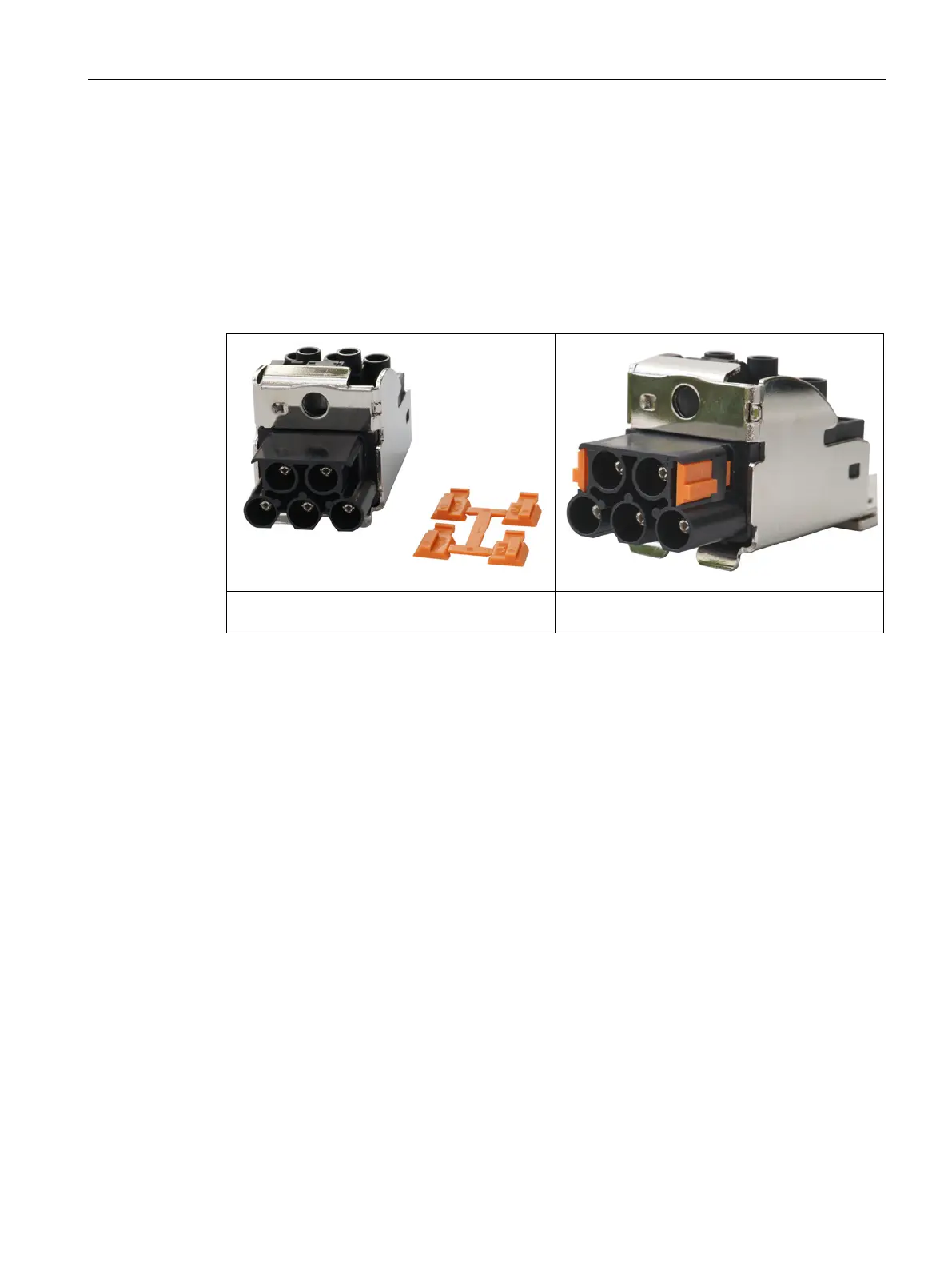

Table 12- 27 Coding of a motor connection plug
Motor connector with associated coding plugs
from the accessories pack
Motor connector with coding plugs inserted
