DC link components
8.4 Braking units for 100 kW Basic Line Modules
Booksize Power Units
522 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
8.4.6
Connection to the Basic Line Module 100 kW
Connecting the braking unit to the DC link
The following adapters can be used to connect the MASTERDRIVES braking unit to a
SINAMICS S120 line-up in booksize format:
DC link rectifier adapter, Article number 6SL3162-2BM00-0AA0
DC link adapter, Article number 6SL3162-2BM01-0AA0
The connecting cables used to connect the braking unit to the DC link rectifier adapter or DC
link adapter must be kept as short as possible.
Please observe the instructions contained in Chapters DC link rectifier adapter (Page 626)
and DC link adapter (Page 638).
DC link rectifier adapter
MASTERDRIVES braking unit
Cable routing to the braking resistor

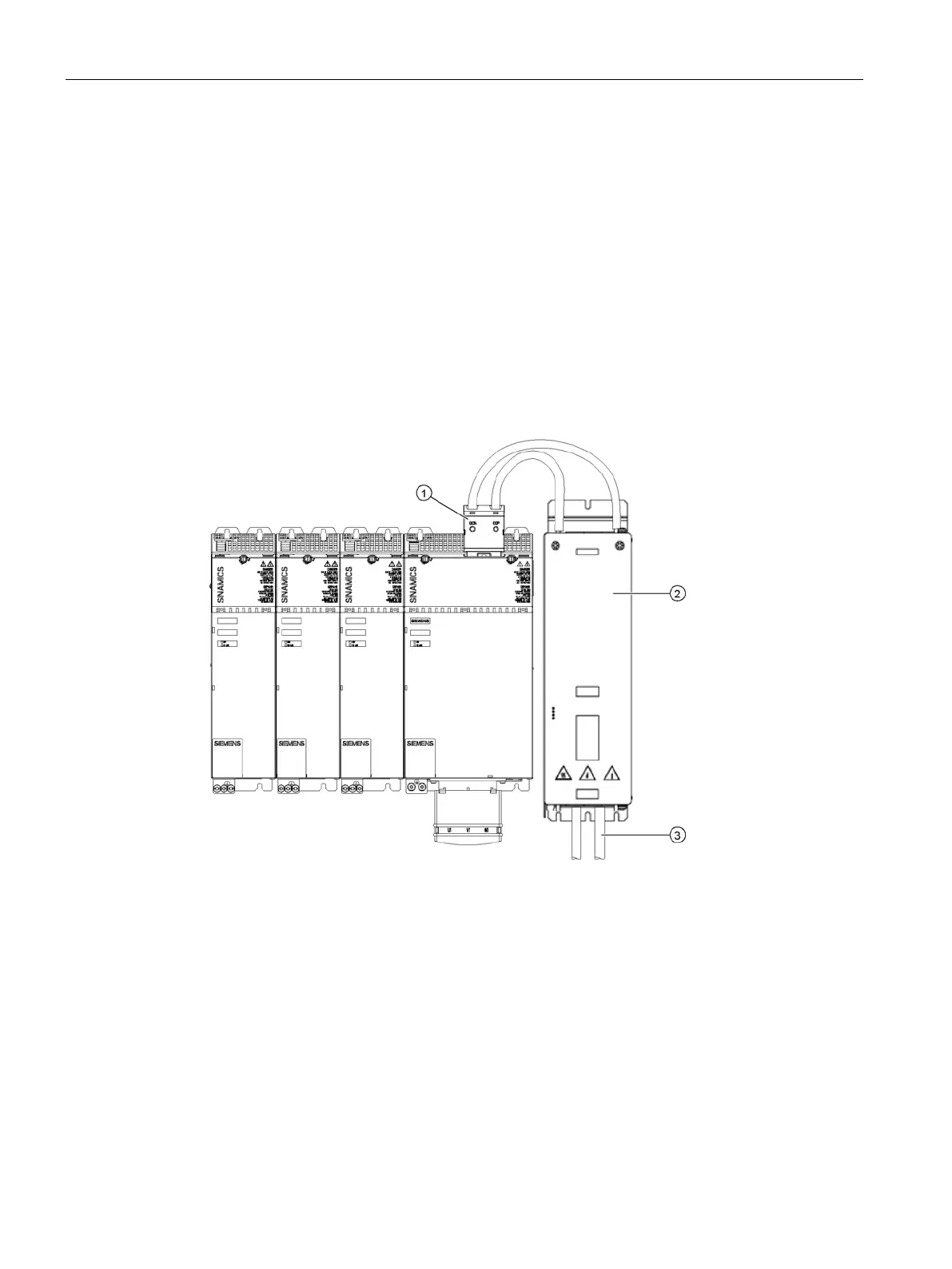

Figure 8-16 Connecting a MASTERDRIVES braking unit via a DC link rectifier adapter
