DC link components
8.4 Braking units for 100 kW Basic Line Modules
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
521
8.4.5
Dimension drawing

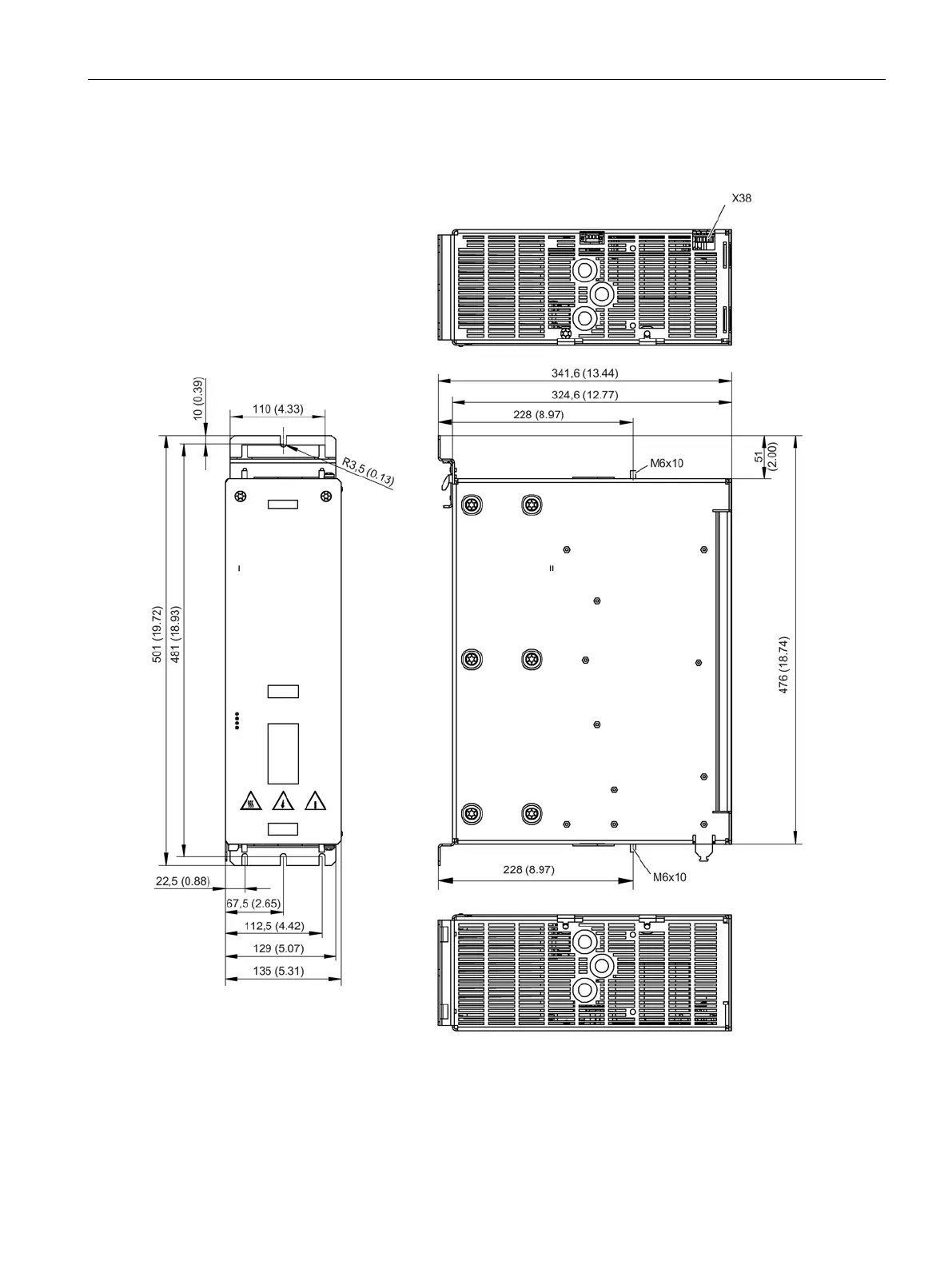

Figure 8-15 Dimension drawing of 100 kW and 170 kW MASTERDRIVES braking unit, all dimensions in mm and (inches)
