DC link components
8.3 Braking Module Booksize Compact
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
511
8.3.6
Dimension drawing

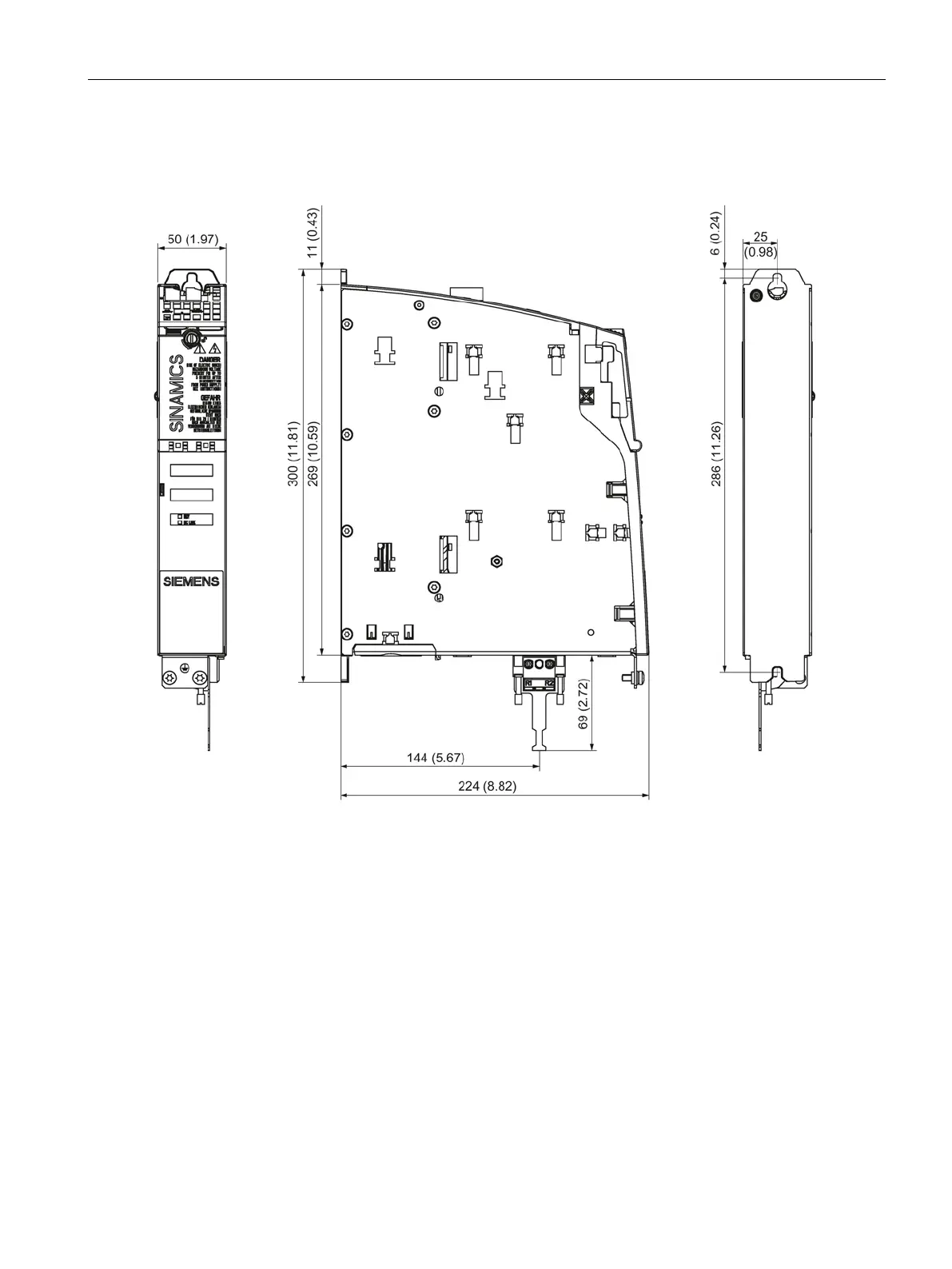

Figure 8-9 Dimension drawing of Braking Module Booksize Compact, all dimensions in mm and (inches)
