Line Modules Booksize
4.11 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
321
4.11.7
Dimension drawings

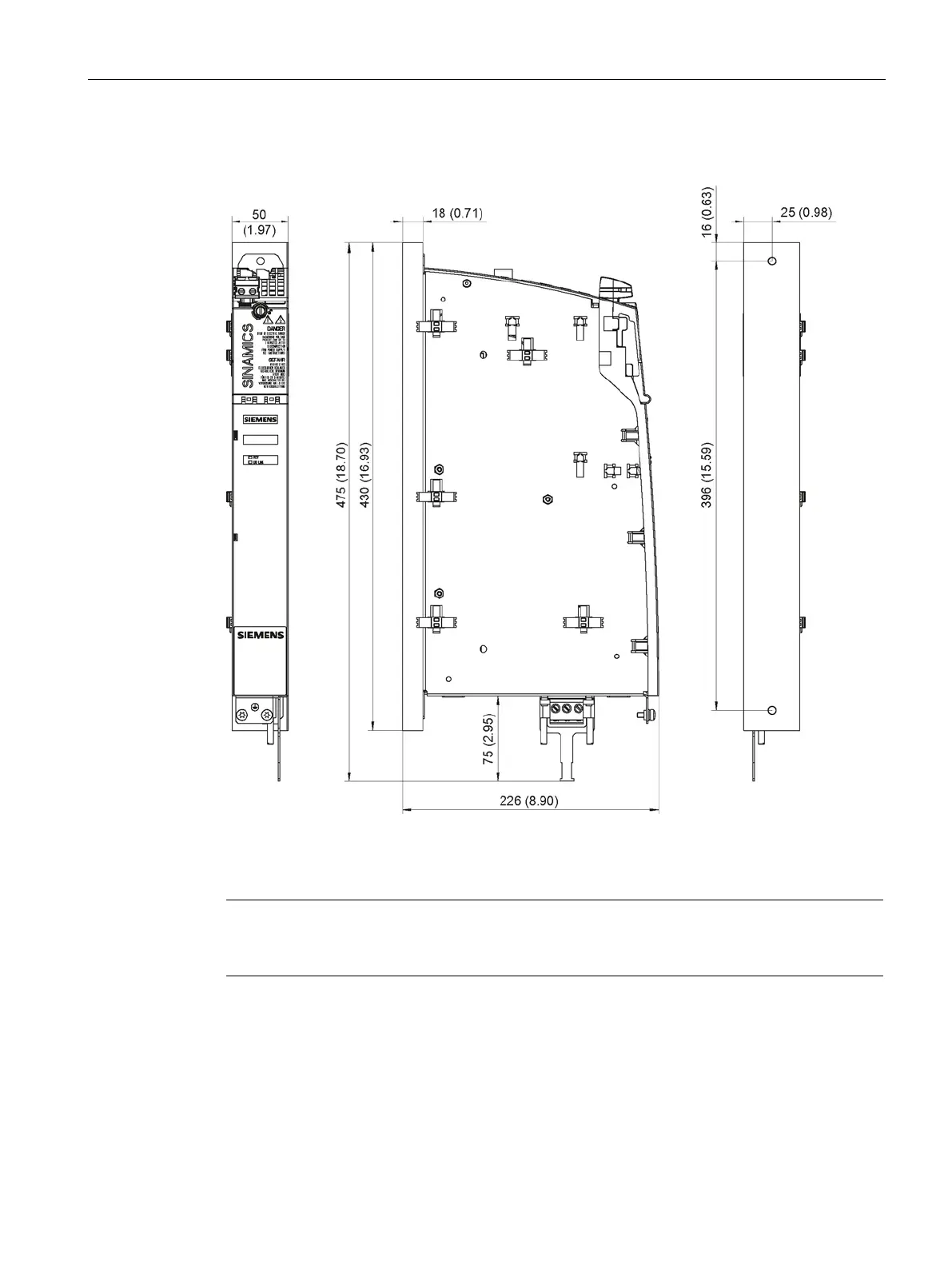

Figure 4-91 Dimension drawing of Smart Line Module with cold plate (5 kW and 10 kW), all
dimensions in mm and (inches)
Note
The shield connecting plate is integrated in the power supply connector of the 50 mm Smart
Line Modules.
