Accessories

11.4 DC link rectifier adapter for Booksize format

Booksize Power Units

630 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

11.4.3.2

DC link connection

Table 11- 15 DC link rectifier adapter – description of the terminals

Terminal

Function

Technical data

DCP

DC link positive

Supply voltage:

720 V-VDE/600 V-UL

DCN

DC link negative

11.4.4

Dimension drawings

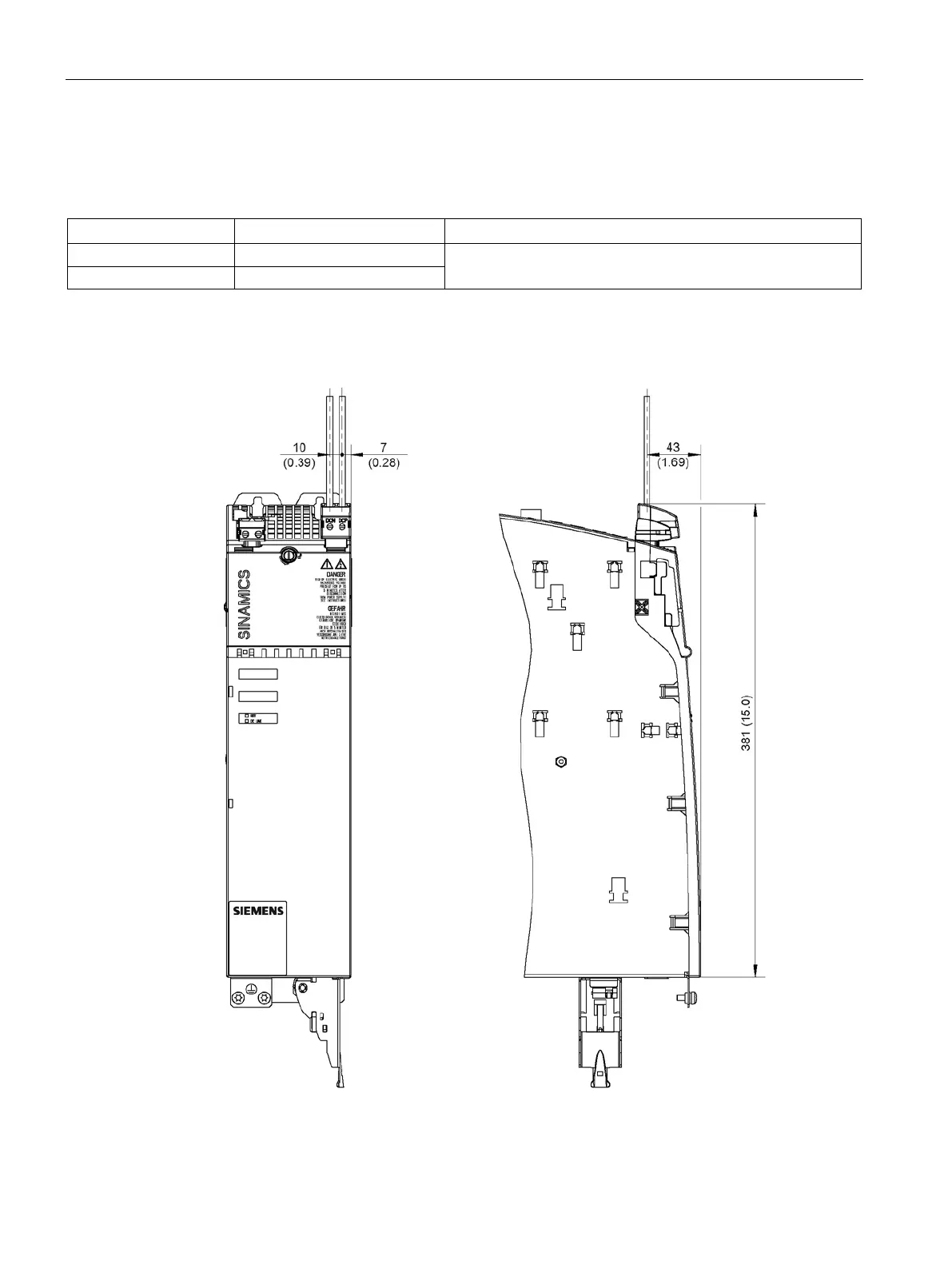

Figure 11-24 Dimension drawing of 100 mm wide component with DC link rectifier adapter for 0.5 to

10 mm², all dimensions in mm and (inch)
