Motor Modules Booksize

6.3 Motor Module with external air cooling

Booksize Power Units

384 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

6.3.2.2

Motor and brake connection

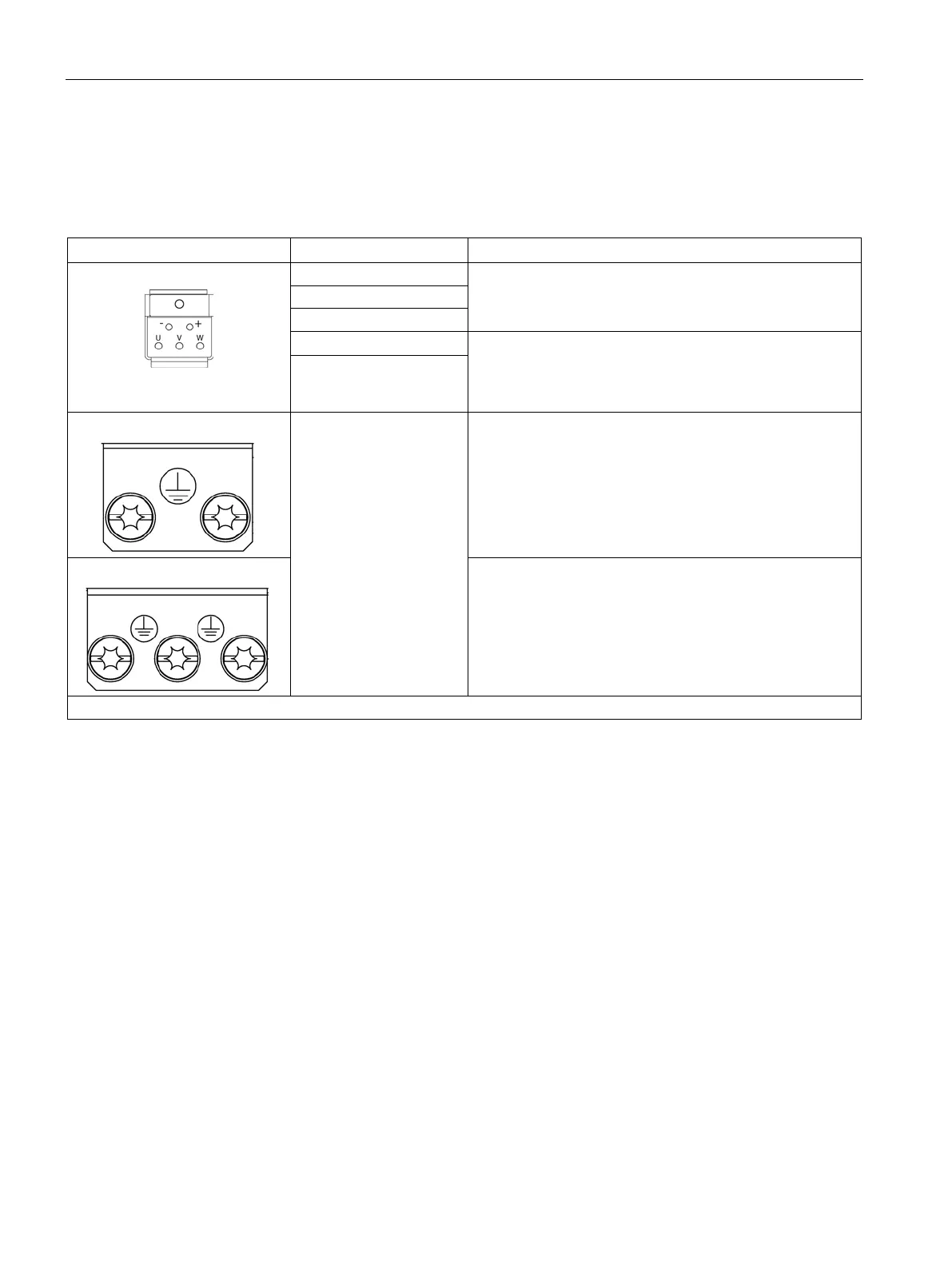

Table 6- 16 X1/X2 motor and brake connections for Single Motor Modules 3 A to 30 A and Double Motor Modules 2 x 3 A

to 2 x 18 A

Terminal

Technical data

U (U2)

Motor connection

V (V2)

W (W2)

+ (BR+)

Brake connection:

Supply voltage: 24 V DC ±10 %

Max. load current: 2 A

Minimum load current: 0.1 A

- (BR-)

PE connection

Single Motor Modules 3 ... 30 A:

Threaded hole M5 / 3 Nm

Double Motor Modules 3 ... 18 A:

Threaded hole M5 / 3 Nm

For ring cable lugs without insulation (Page 732)
