Motor Modules Booksize

6.2 Motor Modules with internal air cooling

Booksize Power Units

362 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

6.2.5

Dimension drawings

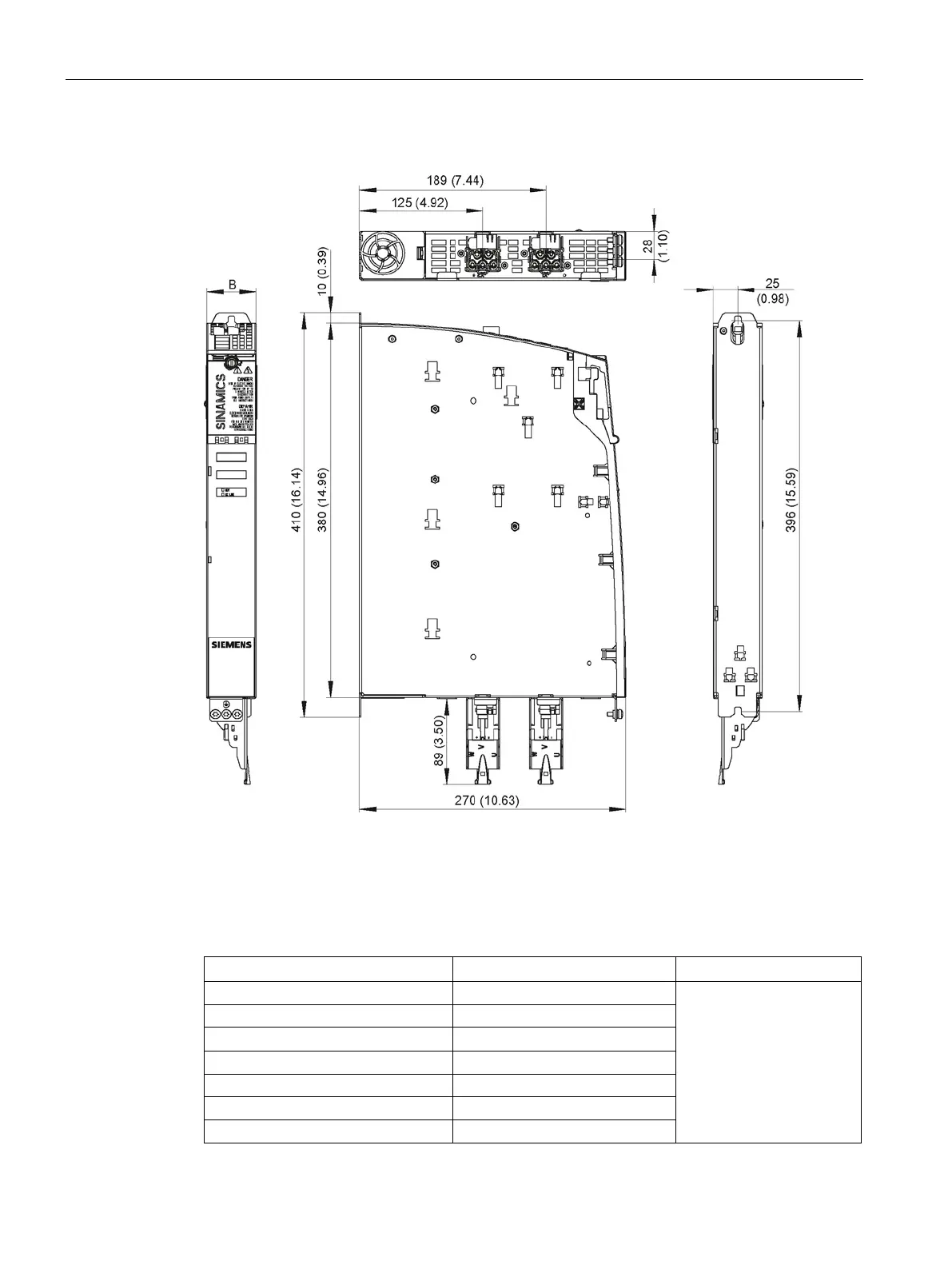

Figure 6-5 Dimension drawing of Motor Modules Booksize with internal air cooling 3 A to 18 A and

2 x 3 A to 2 x 9 A, all dimensions in mm and (inches); example: Double Motor Module

2 x 5 A

Table 6- 7 Dimensions of Motor Modules Booksize with internal air cooling 3 A to 18 A and 2 x 3 A

to 2 x 9 A

Motor Module

Article No.

B [mm] (inch)

Single Motor Module 3 A

6SL3120-1TE13-0AA.

50 (1.97)

Single Motor Module 5 A

6SL3120-1TE15-0AA.

Single Motor Module 9 A

6SL3120-1TE21-0AA.

Single Motor Module 18 A

6SL3120-1TE21-8AA.

Double Motor Module 2 x 3 A

6SL3120-2TE13-0AA.

Double Motor Module 2 x 5 A

6SL3120-2TE15-0AA.

Double Motor Module 2 x 9 A 6SL3120-2TE21-0AA.
