Braking resistors
9.3 Dimension drawings
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
553

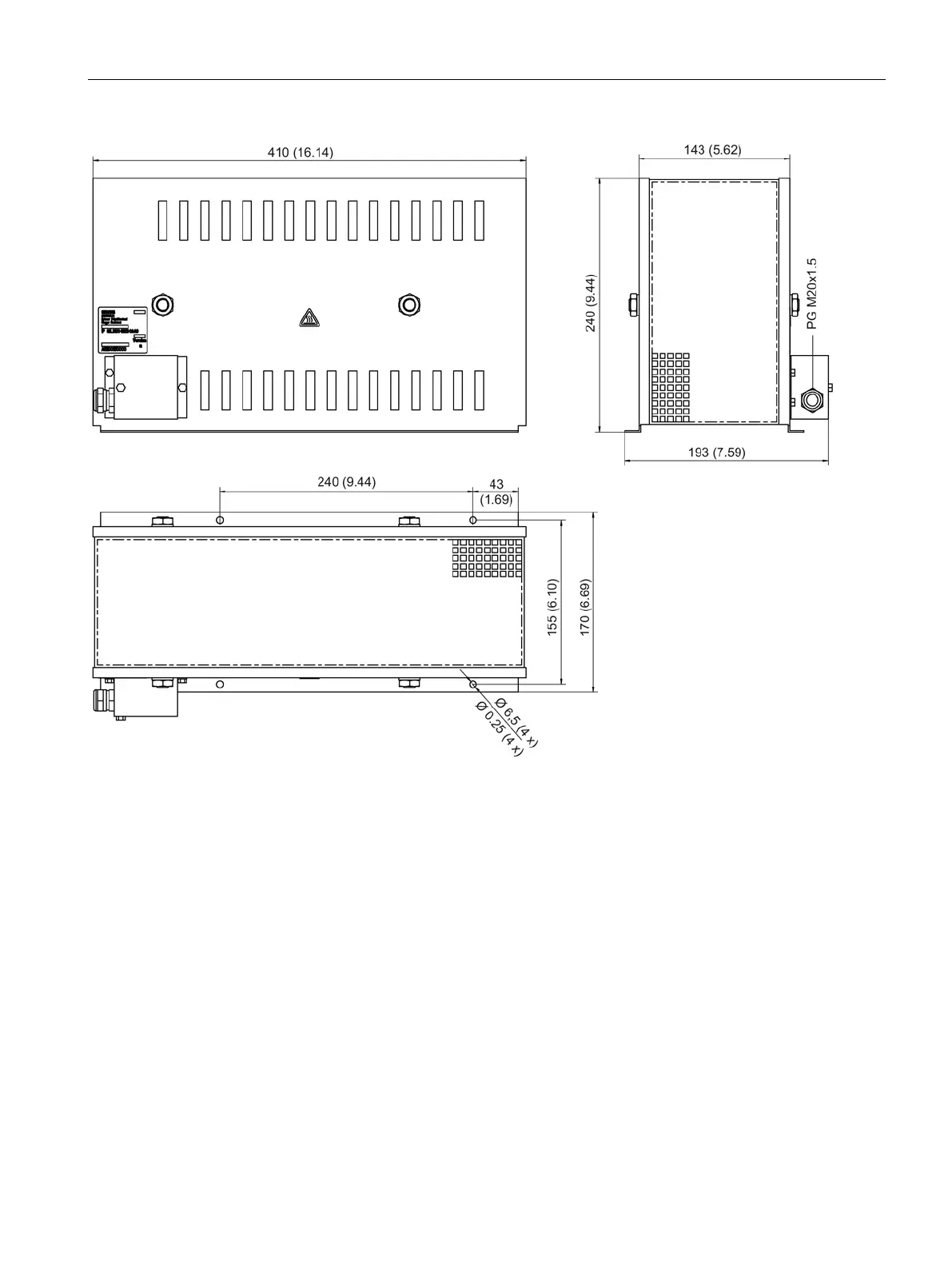

Figure 9-2 Dimension drawing of braking resistor 6SL3100-1BE31-0AA0 where P
n
/P
max
= 1.5 kW/100 kW, all dimensions
in mm and (inches)
