Braking resistors
9.3 Dimension drawings
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
557
Connection for thermostatic switch T1/T2 with conductor cross-section 2.5 mm
2
Connection for power cable, 2 x M6 bolts

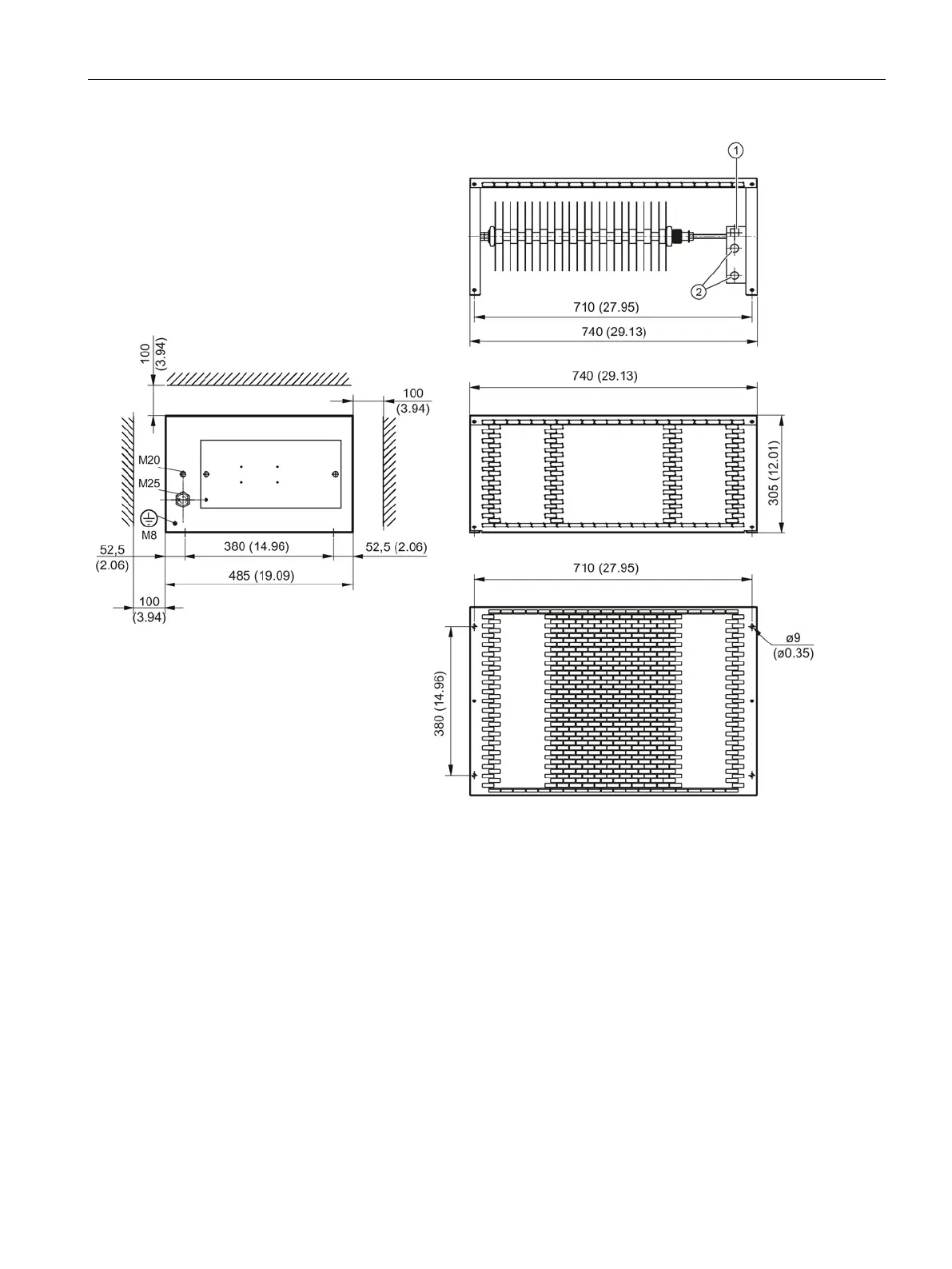

Figure 9-6 Dimension and installation drawing (floor mounting) of braking resistor 6SE7028-0ES87-2DC0 where
P
n
/P
max
= 12.5 kW/75 kW, all dimensions in mm and (inches)
