SDS1000CML+/SDS1000DL+ User Manual 99
2.13.8 Recorder
The waveform recorder is a kind of seamless and no-gap real time recording of
waveform, means oscilloscope can save and replay waveform every time it
captured. It is similar to waveform recording instrument, and the biggest recording
size of its internal memory is 6M
Table 2-62 waveform recording function menu：
option description
Record record the waveform persistently
Replay Replay recorded waveform, refer to table 2-64
Option Set the recorder properly, refer to table 2-65
Return Quit the recording function

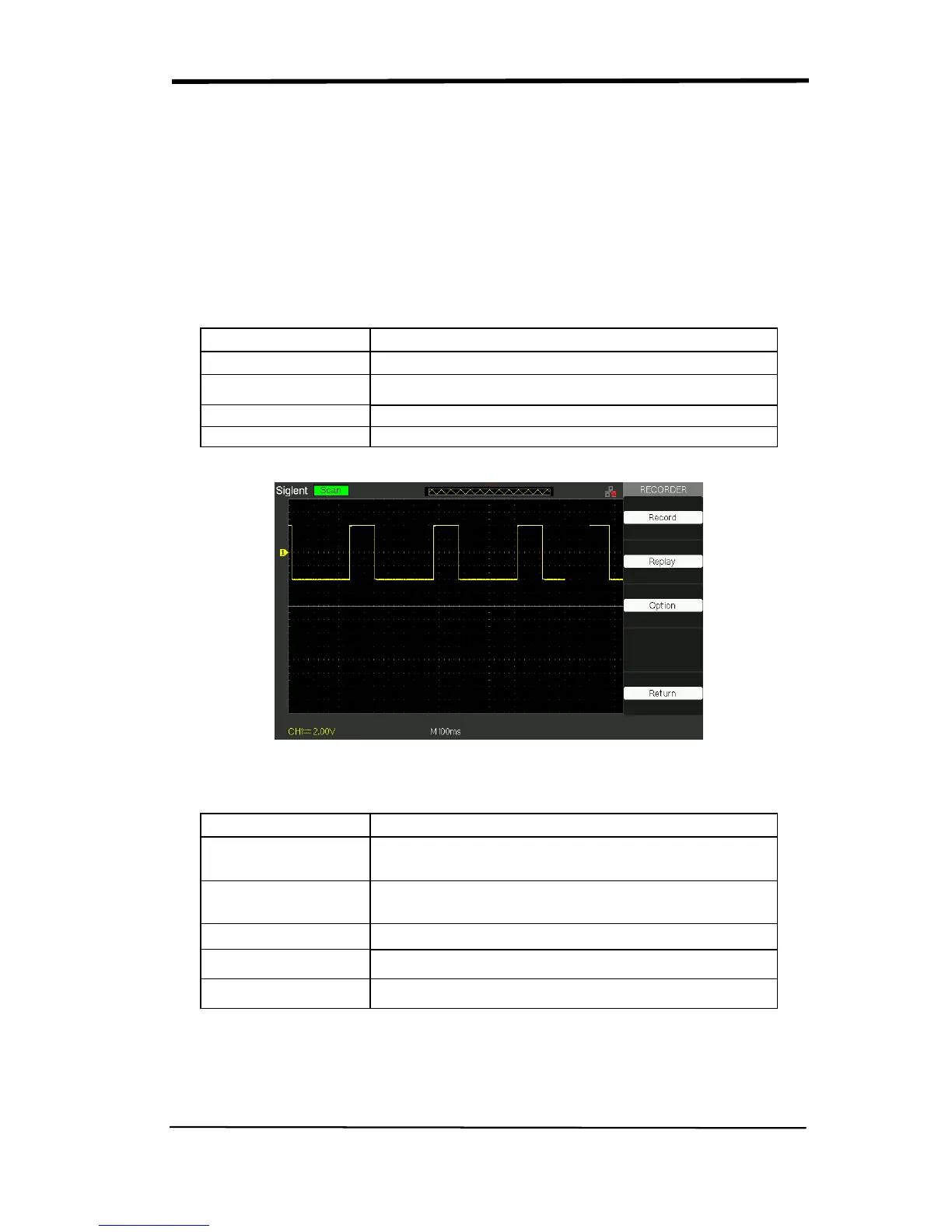

Picture 2.13-20
Table 2-63 waveform replay function menu
Option Description
Pause Pause the replay function
Restart Restart the replay function
Previous Recall the waveform again
Next Fast forward play the recalled waveform again
Return Quit the recalling interface
