2.13.7 Waveform Record

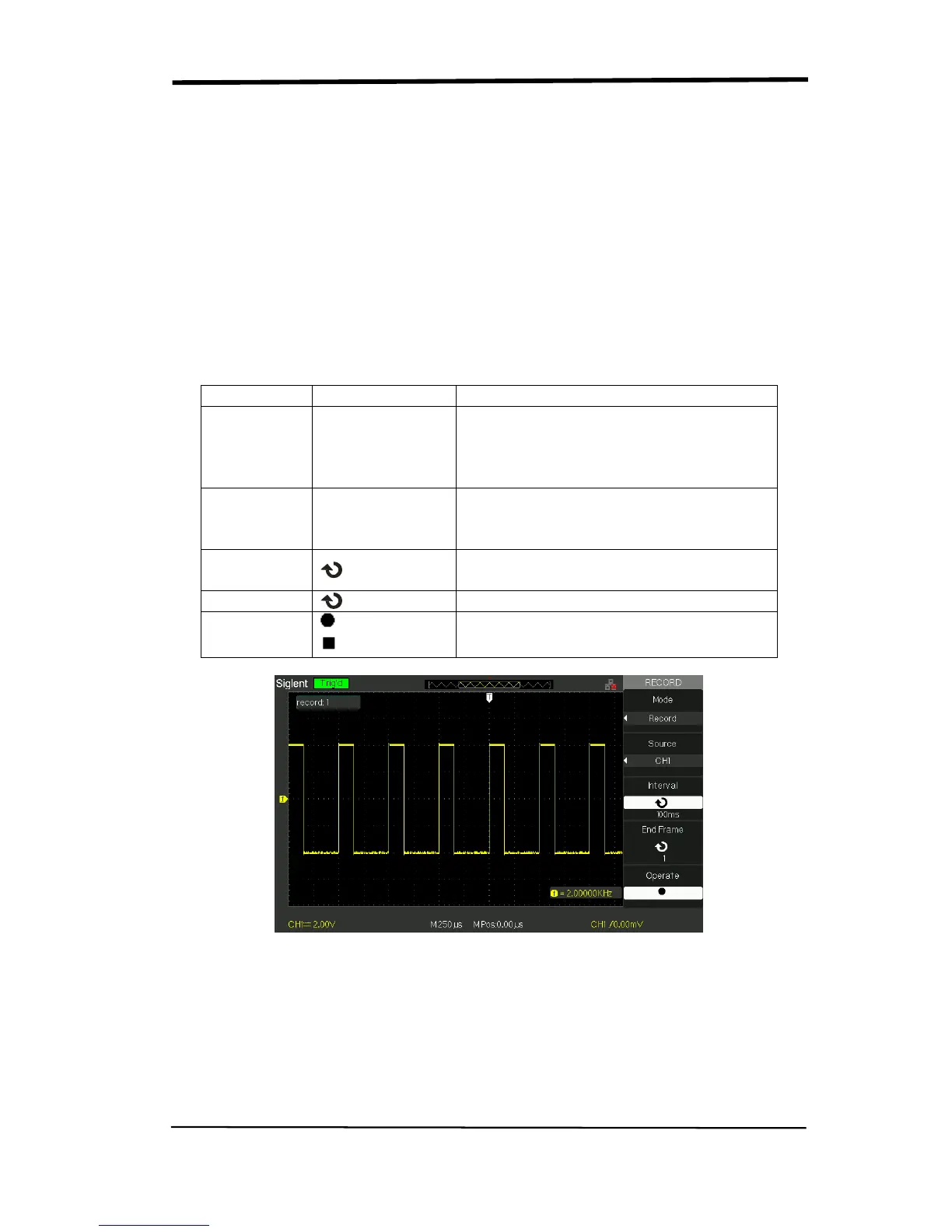

Waveform record can record input waveform from CH1 and CH2 with a maximum
record length of 2500 frames. This record behavior can also be activated by the
pass/fail test output, which makes this function especially useful to capture
abnormal signals in long term without keeping an eye watching it.
Waveform recorder: Record the waveforms with specified interval.
Table 2-59 Waveform recorder function menu:
Mode
Record
Play Back
Storage
Off
Set Record function menu.
Set Play Back function menu.
Set Storage function menu.
Turn off waveform recorder menu.
Source
CH1
CH2
P/F-OUT
Select record source channel.
Interval
Set time interval between record
frames.
End Frame
To Next Page
