SDS1000CML+/SDS1000DL+ User Manual 31
If you want to see a section of the waveform in detail, follow these steps:
(1) Press the “HORI MENU” button to enter the “Horizontal menu”.
(2) Turn the “S/div” knob to change the main timebase scale.
(3) Press the “Delayed” option button to select “On”.

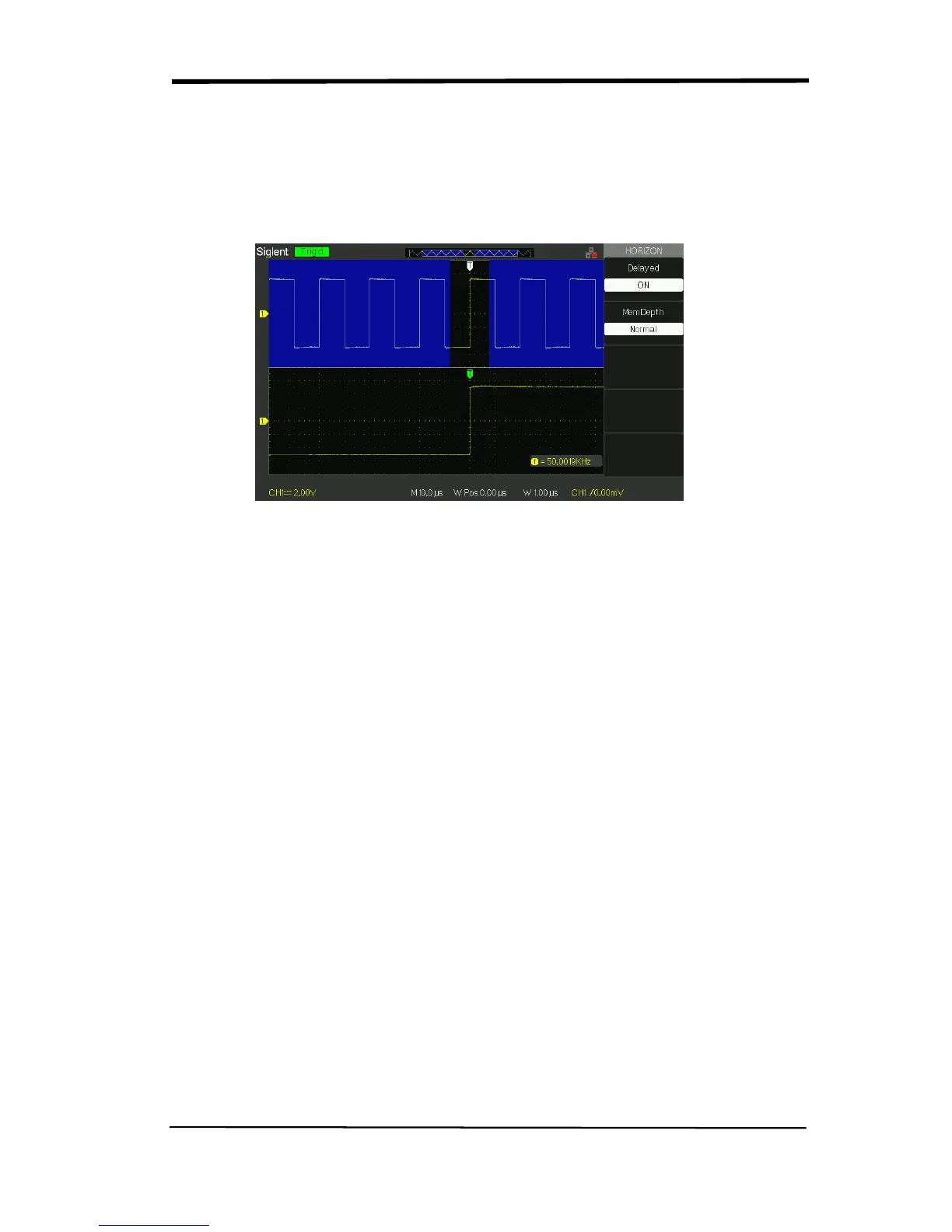

Picture2.7-2
(4) Turn the “Horizontal Position” knob (adjust window’s position) to select
the window that your need and expanded window waveform display on
the below half screen at the same time.
