occur between samples. This can result in aliasing may cause narrow pulses to be
missed. In these cases, you should use the Peak Detect mode to acquire data.
Picture 2.9-2 Sampling modes
■ Peak Detect: Peak Detect mode capture the maximum and minimum values of
a signal Finds highest and lowest record points over many acquisitions.
Advantage: In this way, the oscilloscope can acquire and display narrow pulses,
which may have otherwise been missed in Sample mode.
Disadvantage: Noise will appear to be higher in this mode.

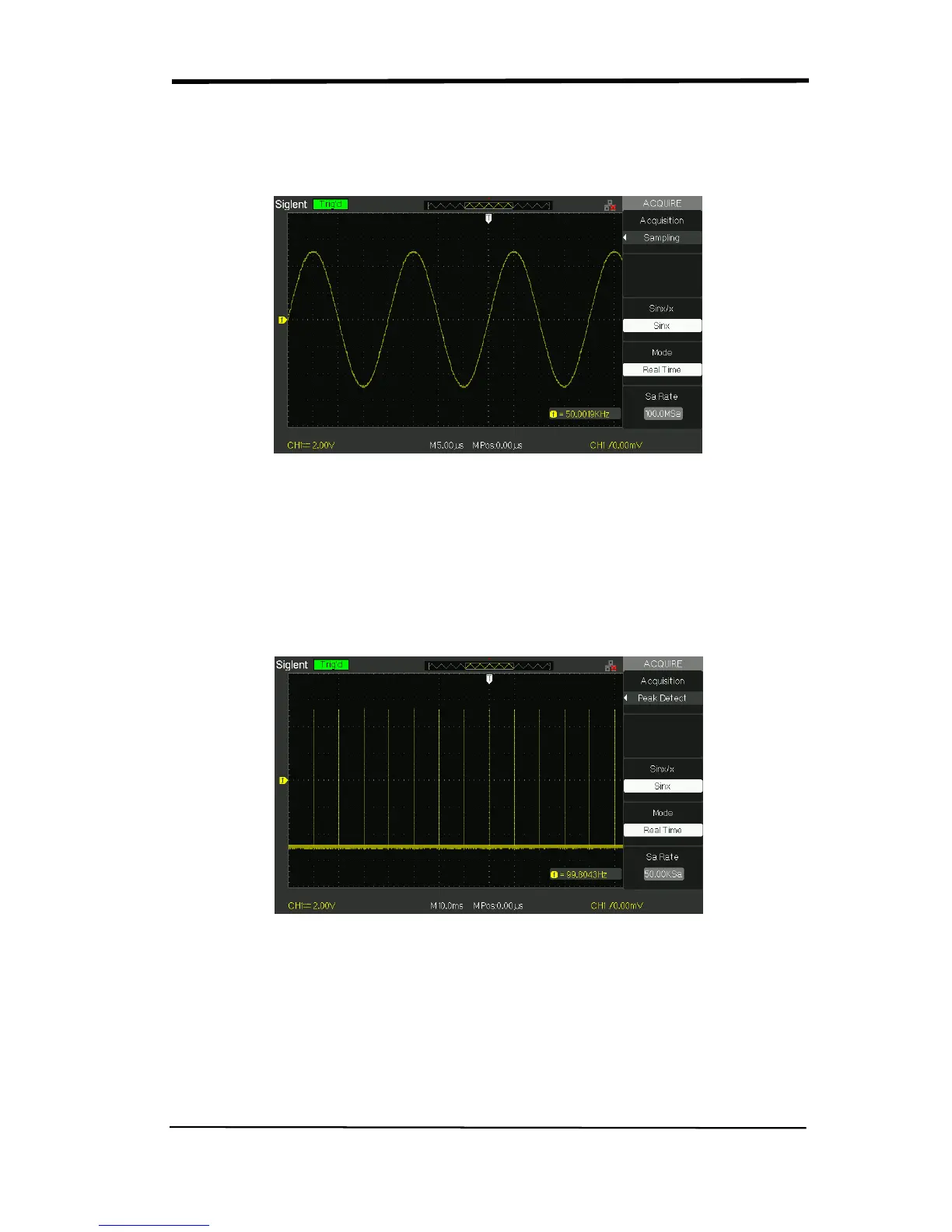

Picture 2.9-3 Peak Detect mode
