Chart symbols
All chart symbols used by the system can be displayed as follows:

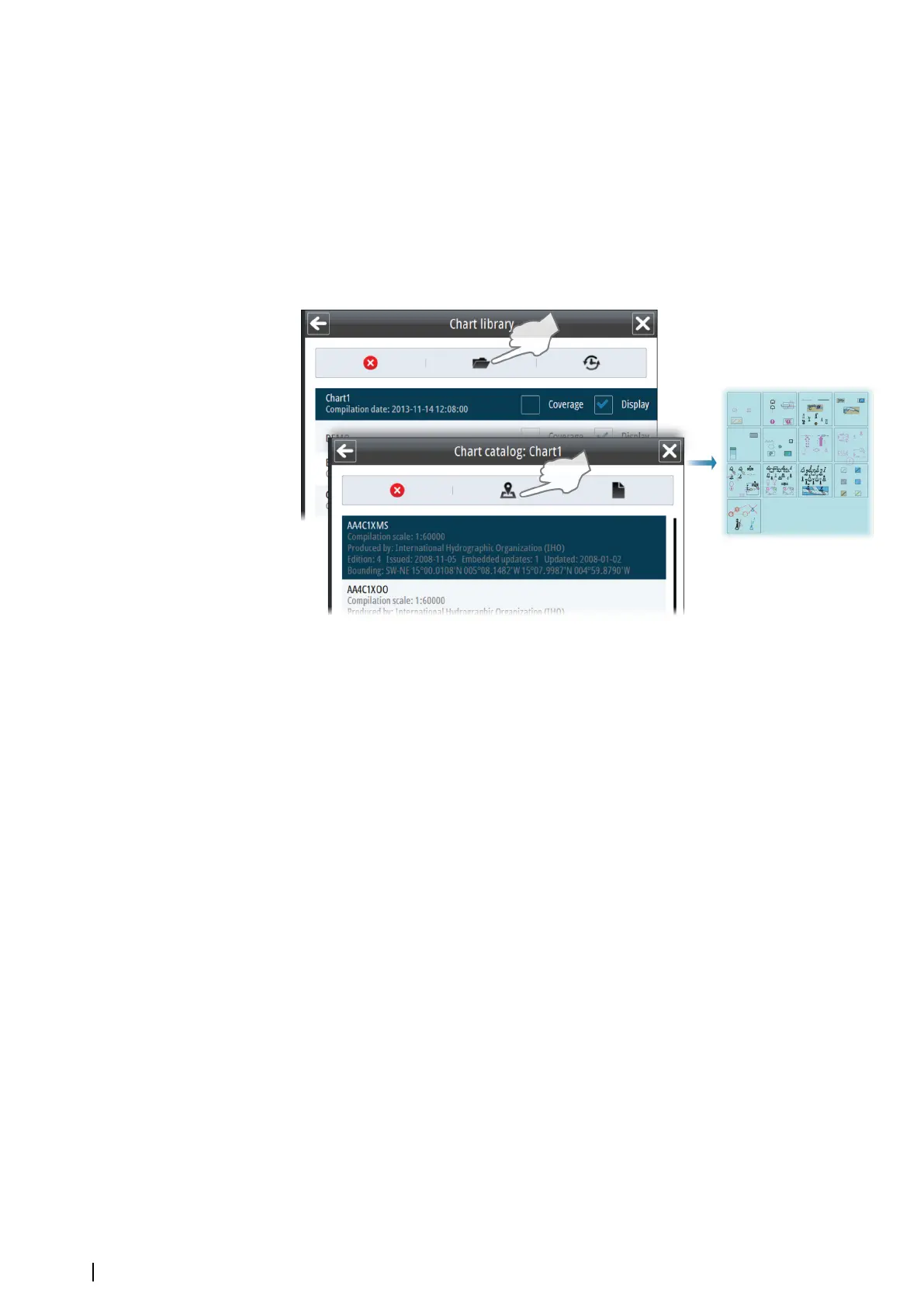

1. Open the Chart library panel
2. Open the chart catalog for the Chart1 database
3. Select the Display Object icon for one of the datasets included in the database
-
The display moves and scales the chart to show all symbols included in the selected
dataset
4. Right-click a symbol to display object information
5. Return to the Chart library panel and select your preferred chart database to go back to
normal operation
30
