Simrad E50 Series User Manual

Maintenance
Maintenance philosophy
All units in the system are “repair by replacement” units, and the operator is therefore
required to perform only a very limited amount of preventive maintenance.
Checking the connectors
The connectors should be checked by visual inspection only.
Push the connector plugs into the connector. If the connector plugs are equipped with a
lock, ensure that it is in the correct position.
Verifying the display color
The system includes a color test area to enable the user to detect the stage at which the
display can no longer be used to discriminate important features by color.

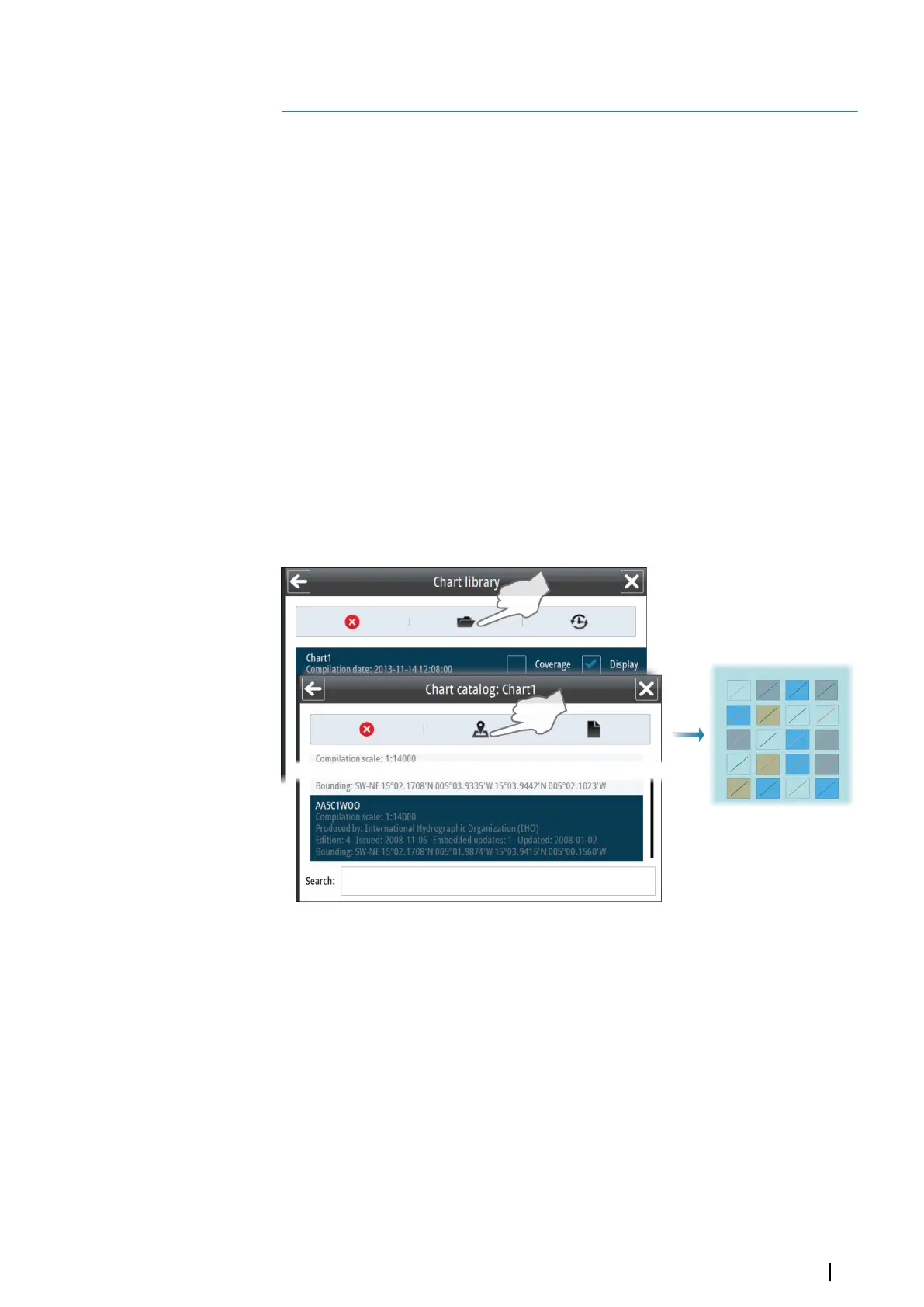

1. Open the Chart library panel
2. Open the chart catalog for the Chart1 database
3. Select the Display Object icon for the AA5C1WOO dataset
-
The display moves and scales the chart to 1:14 000. This scale should not be changed
4. Verify that the color for the diagonal lines can be clearly distinguished from the
background. If not, the monitor has to be sent to Simrad for recalibration
5. Return to the Chart library panel and select your preferred chart database to go back to
normal operation
13
Maintenance| E50xx ECDIS Operator Manual
65
