Simrad E50 Series User Manual

Modifying routes

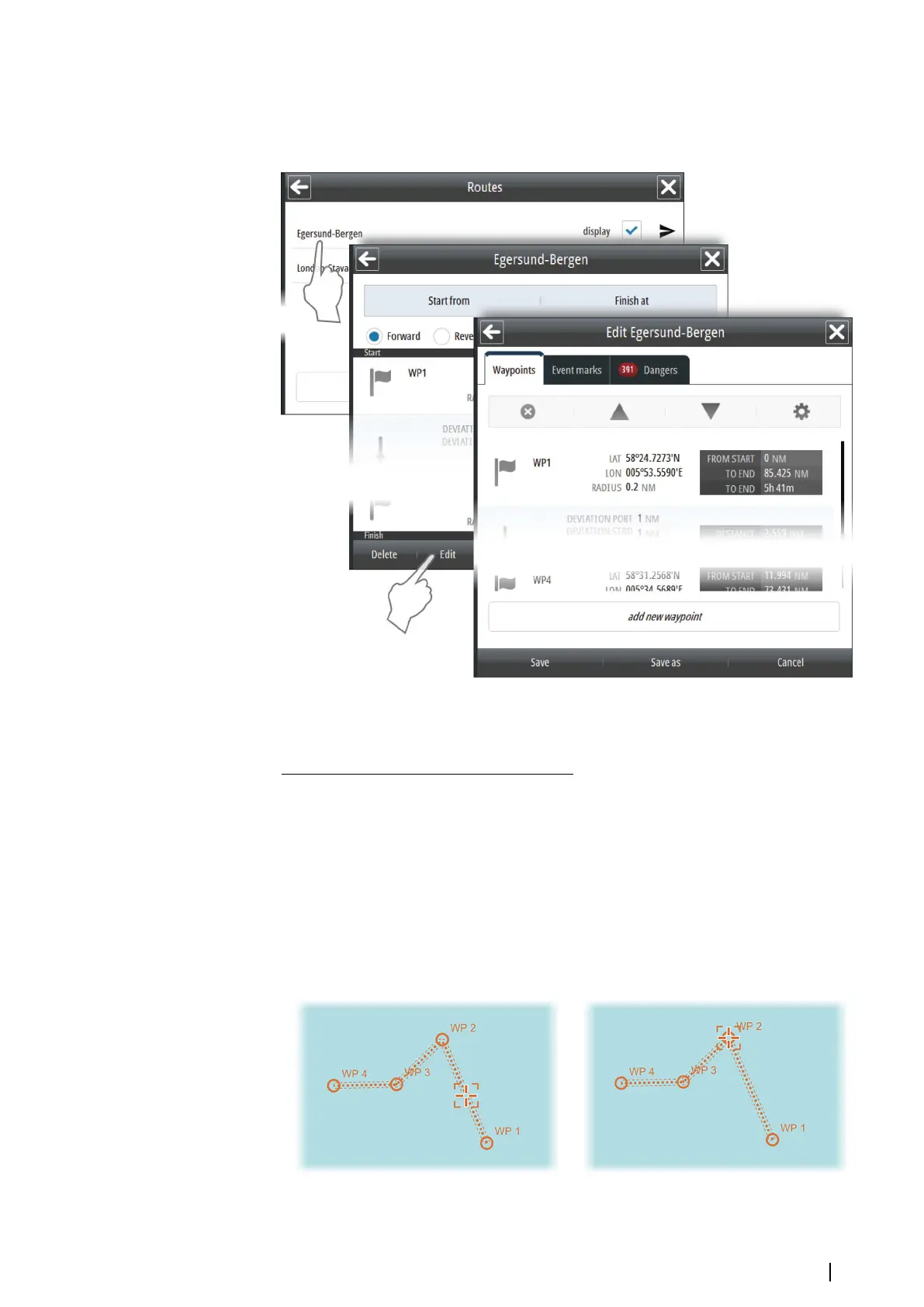

Some parameters in a route may be modified from the Route dialog when the route is
created or after the route has been saved.
Ú
Note: You need to select the Edit button to turn a saved route into edit mode.
Adding and moving waypoints
To add or move a waypoint by using the cursor
1. Move the cursor to the waypoint you want to move or to the leg where you want to
insert a new waypoint
-
A dotted square is displayed under the cursor to indicate edit mode
2. To add a new waypoint: press the left cursor key on the leg where you want to position a
new waypoint
Ú
Note: The new waypoint is added as the last waypoint in the route if the cursor is not
positioned on a leg when you press the left cursor key.
3. To move a waypoint: press the left cursor button on the waypoint to unfix it, move the
cursor to the new position, then repress the left cursor button to fix the waypoint to the
new position
New waypoint to be created on leg Movable waypoint
Route planning | E50xx ECDIS Operator Manual
49
