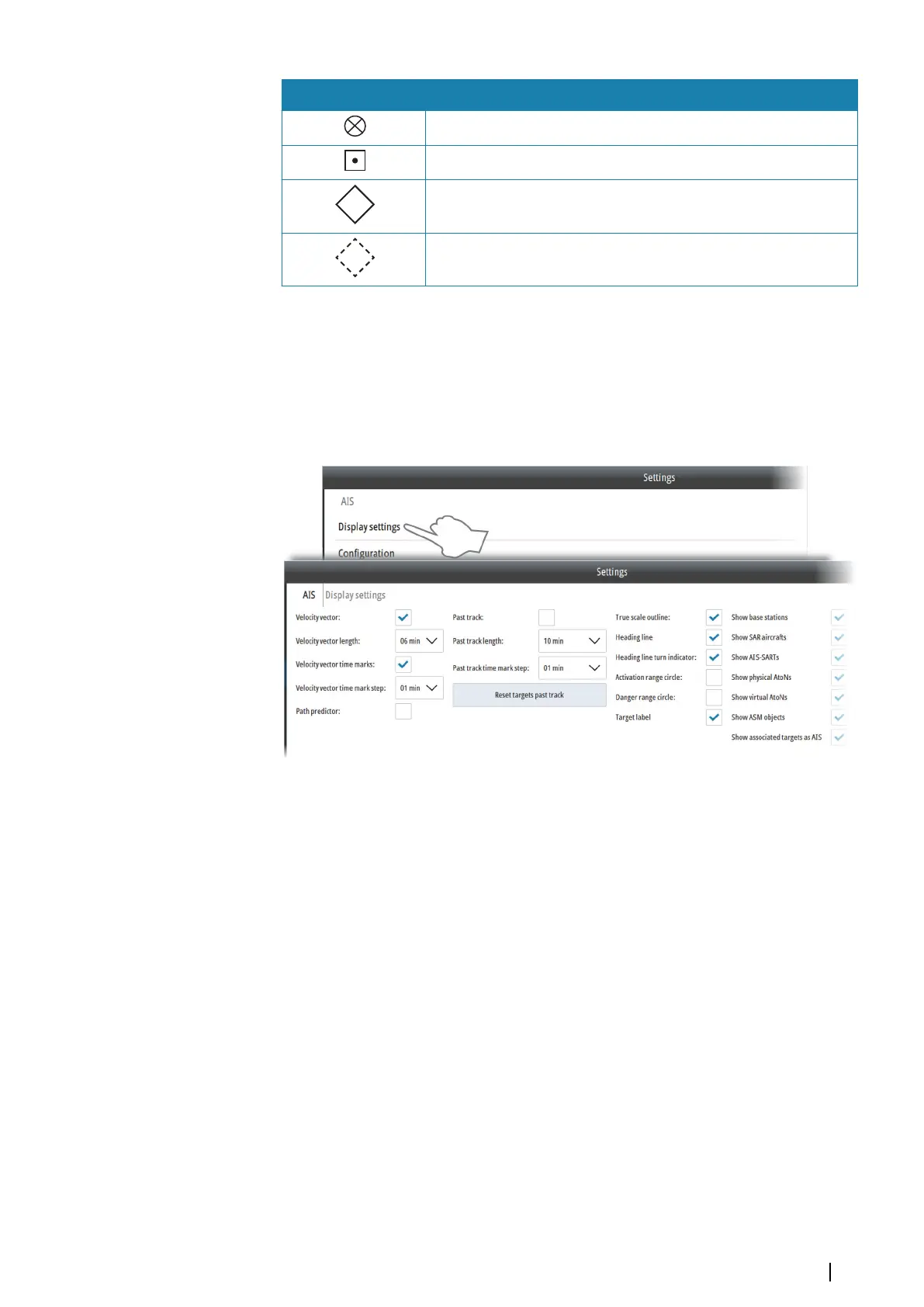

Symbol Description
AIS SART (AIS Search And Rescue Transmitter)
AIS Base station
Real AtoN (Aids To Navigation)
+
Virtual AtoN
For a complete list of AIS and AtoN symbols, refer to "Target symbols" on page 81.
Ú
Note: A symbol is drawn with a dotted line if the collision avoidance cannot be
calculated.
Display settings for AIS targets
You select how the AIS targets are displayed on the chart panel in the AIS Display settings
dialog.
Velocity vector: Predicted position of the target in a specified period of time based on
the target's current speed and course over ground (SOG and COG). Time marks and steps
between each mark can be defined and added to the view
Path predictor: Predicted vector based on speed over ground (SOG), course over ground
(COG) and rate of turn
Past track: The target's track over a set time period. Time stamps can be added to the
track line
True scale outline: Displays the targets as true scale symbols in large chart scale. The
displayed size is based on dimensions received in the target's AIS messages
Heading line: The target's heading and eventually turn direction pointing in the direction
of the turn
Range circles: Circles added relative to own vessel position to show the ranges where a
target is visible, active or defined as dangerous
Target label: Target name as received in the AIS message
Show AIS targets: Select to show specific AIS target types on the chart
Show associated targets as AIS: Displays associated Radar/AIS targets as AIS. To enable
AIS/Radar targets associations, refer to "Configuring Radar targets" on page 43.
Configuring AIS targets
You specify the distance for when an AIS target should be activated and considered
dangerous from the AIS Configuration dialog. From this dialog you also define when a lost
AIS target are removed from the chart view.
Other vessels on the chart panel | E50xx ECDIS Operator Manual
39
