Simrad NSS evo3S Installation Manual

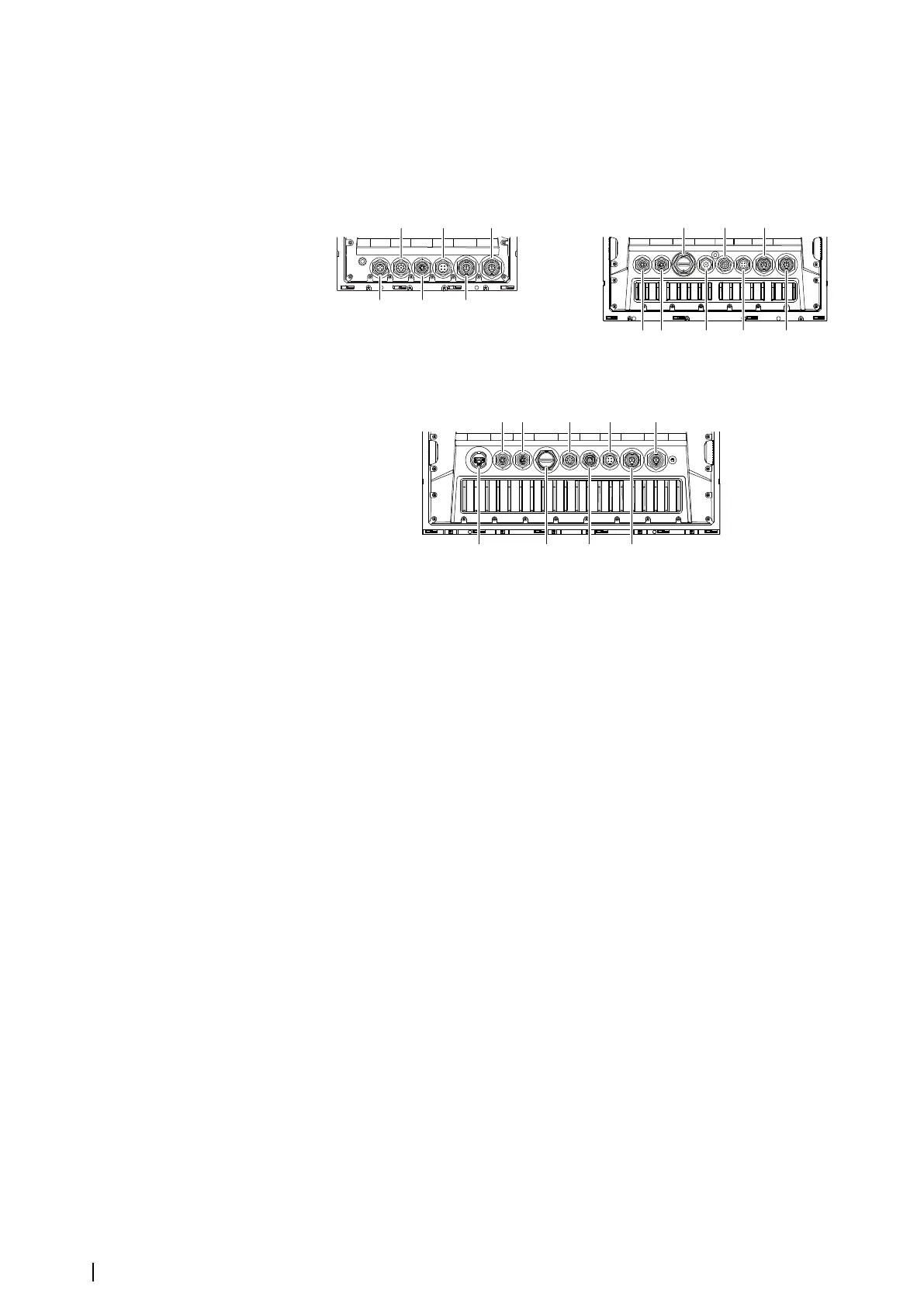

Connectors
Connectors
9" units
E
F
SONAR 2
SONAR 1
POWERE
THERNETVIDEONMEA2000
D
C
A
B
12" units
ETHERNET ETHERNET HDMI VIDEO NMEA2000
POWER
SONAR 1
SONAR 2
A A
G
B
C
D E
F
16" units
ETHERNET ETHERNETUSB HDMI
VIDEO NMEA2000 POWER SONAR 1 SONAR 2
AA
H
G
BC
D E
F
A Ethernet - Ethernet network
B Power - power, power control, and external alarm
C Video- composite video and NMEA0183
D NMEA 2000 - NMEA 2000 data
E Sonar CH1
F Sonar CH2
G HDMI - HDMI video output
H USB connector - mouse, keyboard or mass storage
10
Introduction | NSS evo3S Installation Manual

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
