Simrad NSS evo3S Installation Manual

Echosounder
About
The echosounder function provides a view of the water and bottom beneath your vessel,
allowing you to detect fish and examine the structure of the sea floor.
Requirements
The unit has a built-in echosounder. A compatible echosounder transducer is required.

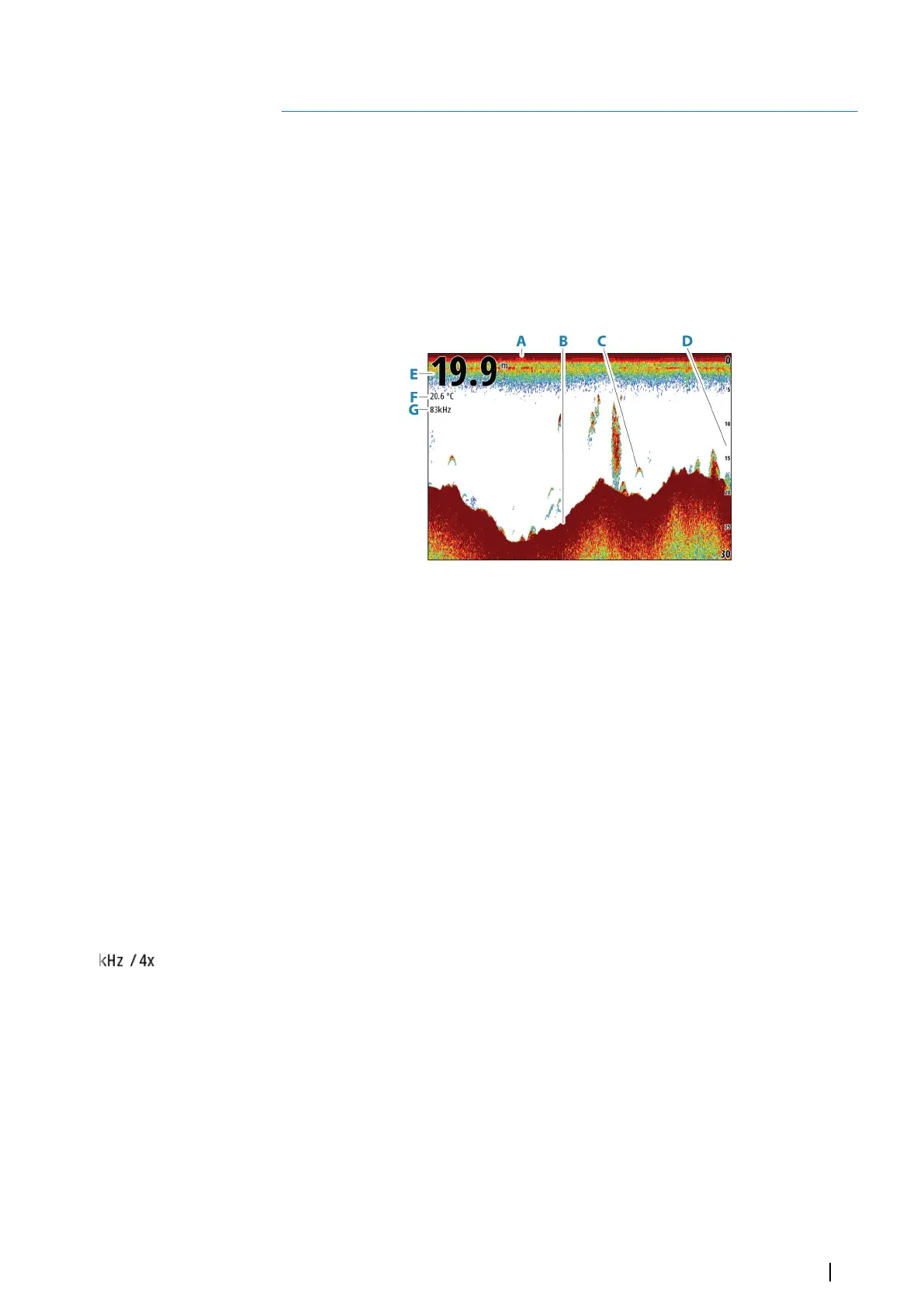

The image
A Surface
B Bottom
C Fish arches
D Range scale
E Depth
F Temperature
G Frequency
Multiple sources
You can specify the source for the image in the active panel. You can display different
sources simultaneously using a multi-panel page configuration.
For more information on how to select the source for a panel, refer to "Source" on page 72.
Zooming the image
You can zoom the image.
The zoom level is shown on the image. If the cursor is active, the system zooms in where the
cursor is positioned.
10
Echosounder | NSS evo3S Operator Manual
69

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
