U-bracket mounting
1 Place the bracket in the desired mounting location. Ensure that the chosen
location has enough height to accommodate the unit fitted in the bracket, and
allows tilting of the unit. Also adequate space is required on both sides to allow
tightening and loosening of the knobs.
2 Mark the screw locations using the bracket as a template, and drill pilot holes.
3 Screw down the bracket using fasteners that are suitable for the material you are
mounting the bracket on.
4 For metal brackets, install the plastic cover over the lower part of the bracket.
5 Mount the unit to the bracket using the knobs. Hand tighten only.

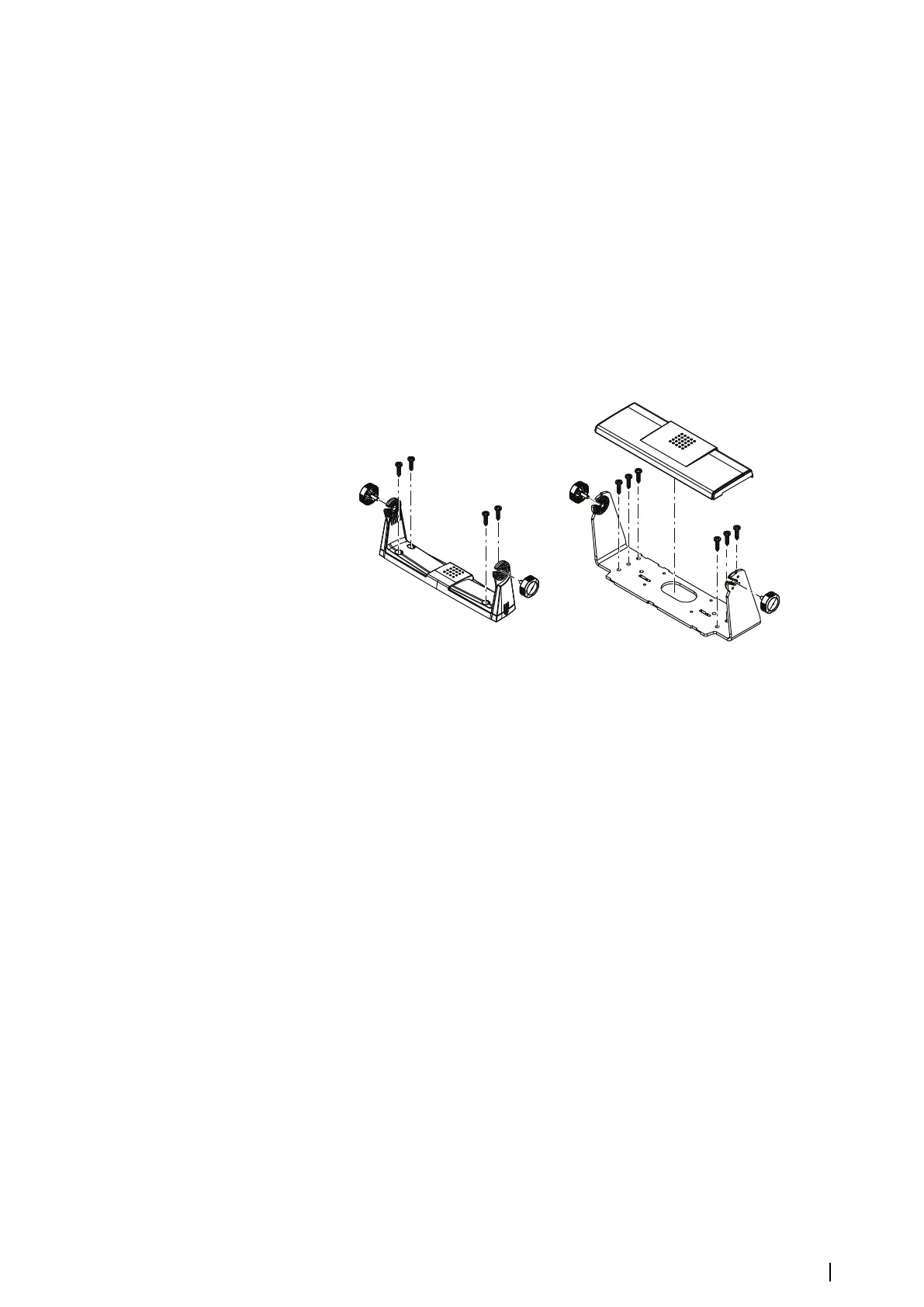

The screws shown below are for illustration purposes only. Use fasteners that are suitable for
the material you are mounting the bracket on.
Installation | NSS evo3S Installation Manual
13

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
