Simrad NSS evo3S - Dimensional Drawings

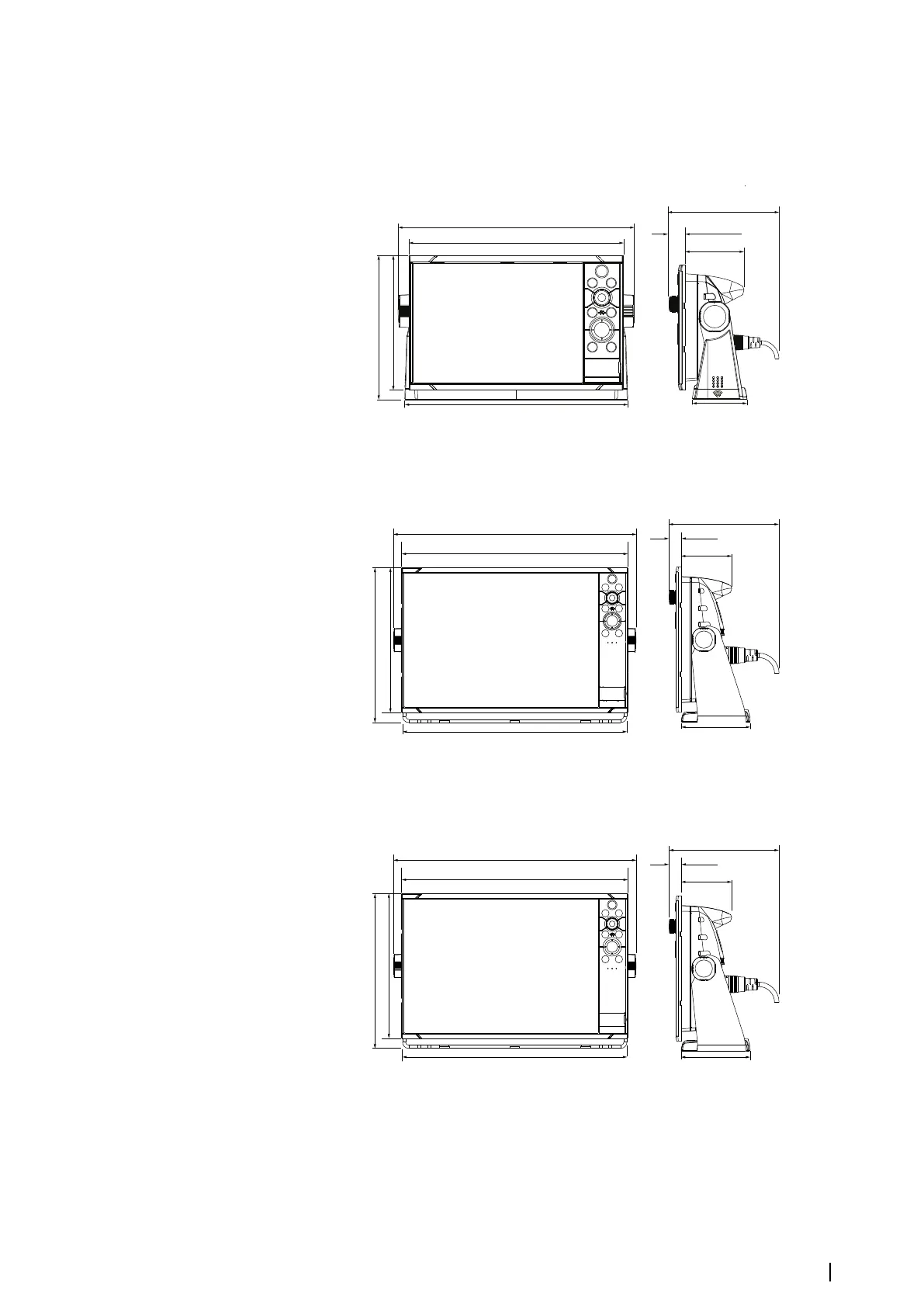

Dimensional drawings
9" unit
310.9 mm (12.24”)
287.0 mm (11.30”)
179.5 mm (7.07”)
166.3 mm (6.55”)
131.0 mm (5.15”)
(2.74”)
18.5 mm (0.73”)
69.6 mm
66.6 mm (2.62”)
296.2 mm (11.66”)
12" unit
377.1 mm (14.85”)
351.5 mm (13.84”)
240.6 mm (9.47”)
170.3 mm (6.70”)
78.1 mm
(3.07”)
225.3 mm (8.87”)
18.5 mm (0.73”)
349.0 mm (13.74”)
106.7 mm (4.
20”)
16" unit
462.1 mm (18.19”)
436.5 mm (17.19”)
263.9 mm (10.39”)
170.3 mm (6.70”)
79.6 mm
256.0 mm (10.08”)
434.0 mm (17.09”)
18.5 mm (0.73 ”)
(3.13”)
106.8 mm (4.21”)
Appendix | NSS evo3S Installation Manual
45
