Simrad NSS evo3S Installation Manual

Sonar CH1 - blue connector
Supports:
• Sonar / CHIRP Sonar
• DownScan
Ú
Note: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin
adaptor cable. However, if the transducer has a paddle wheel speed sensor, the water-
speed data will not be displayed on the unit.

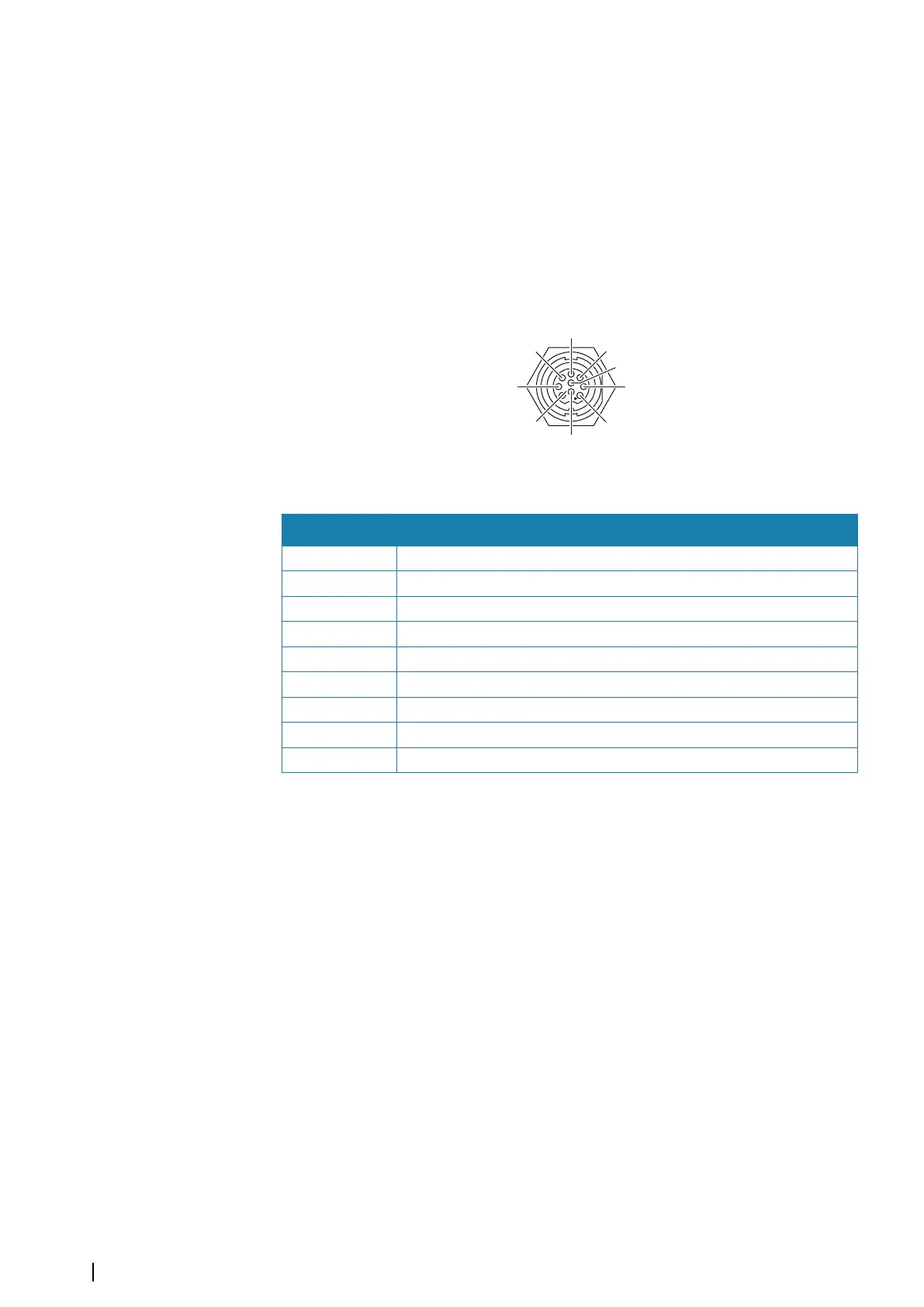

Connector details
6
7
9
1
3
4
5
2
8
Unit socket (female)
Pin Purpose
1 Drain/Ground
2 Not used
3 Not used
4 Transducer -
5 Transducer +
6 Not used
7 Not used
8 Temp +
9 Transducer ID
Sonar CH2 - black connector
Supports:
• Sonar / CHIRP Sonar
DownScan
SideScan
Active Imaging/Active imaging 3-in-1/TotalScan/StructureScan
ForwardScan
Ú
Note: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin
adaptor cable. However, if the transducer has a paddle wheel speed sensor, the water-
speed data will not be displayed on the unit.
Ú
Note: Channel 2 can do SideScan via an Active Imaging, Active Imaging 3-in-1,
TotalScan, or StructureScan HD transducer.
22
Wiring | NSS evo3S Installation Manual

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
