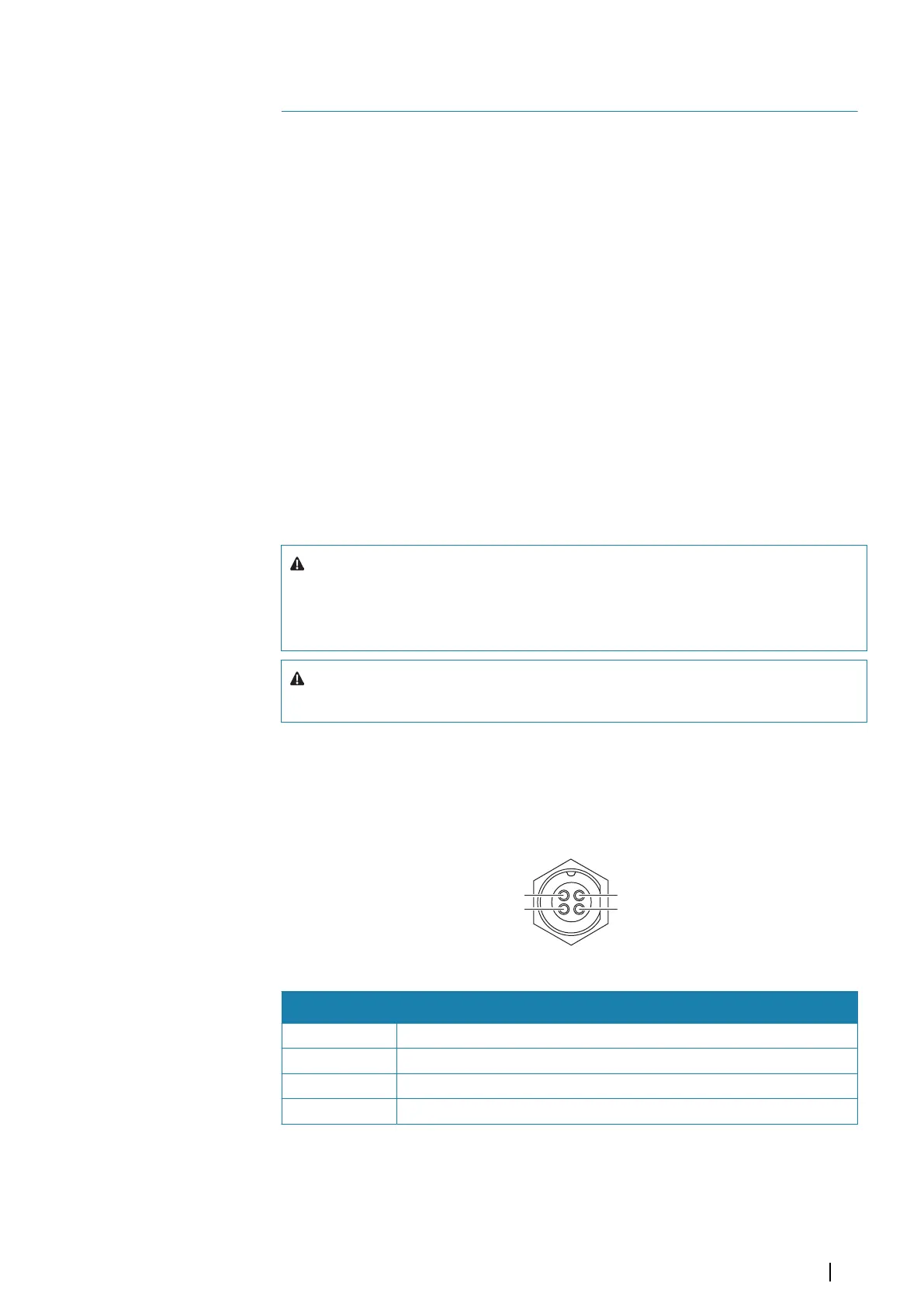

Wiring
Connectors
Different models have different connectors. For available connectors and connector layout
refer to "Connectors" on page
10.
Wiring guidelines
Don't:
• Make sharp bends in the cables.
• Run cables in a way that allows water to flow down into the connectors.
• Run the data cables adjacent to radar, transmitter, or large/high current carrying cables or
high frequency signal cables.
• Run cables so they interfere with mechanical systems.
• Run cables over sharp edges or burrs.
Do:
• Make drip and service loops.
• Use cable-ties on all cables to keep them secure.
• Solder/crimp and insulate all wiring connections if extending or shortening the cables.
Extending cables should be done with suitable crimp connectors or solder and heat
shrink. Keep joins as high as possible to minimize possibility of water immersion.
• Leave room adjacent to connectors to ease plugging and unplugging of cables.
Warning: Before starting the installation, be sure to turn electrical power
off. If power is left on or turned on during the installation, fire, electrical
shock, or other serious injury may occur. Be sure that the voltage of the
power supply is compatible with the unit.
Warning: The positive supply wire (red) should always be connected to
(+) DC with a fuse or a circuit breaker (closest available to fuse rating).
Power
The power connector is used for power, power control and for external alarm output.
Power connector details
Unit socket (male)
Pin Purpose
1 DC negative
2 External alarm
3 Power control
4 +12/24 V DC
Power connection
The unit is designed to be powered by 12 or 24 V DC system.
3
Wiring | NSS evo3S Installation Manual
