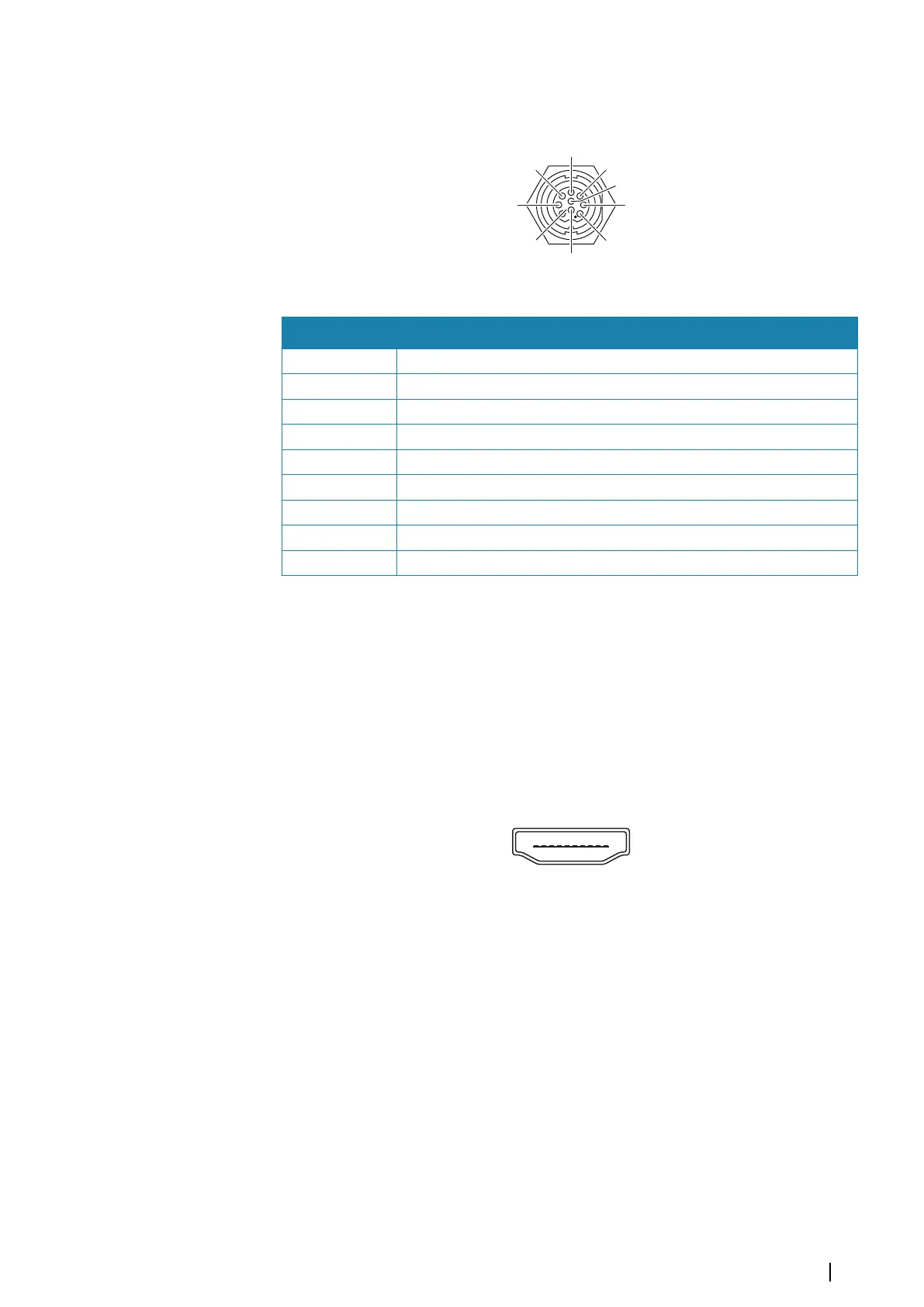

Connector details
Unit socket (female)
Pin Purpose
1 Drain/Ground
2 Starboard +
3 Starboard -
4 Transducer -
5 Transducer +
6 Port +
7 Port -
8 Temp
9 Transducer ID
HDMI out
The unit can be connected to an external monitor to replicate video at a remote location.
The image is shown on the external monitor at the units own native resolution, so the
external monitor should support the same resolution or be able to scale.
Ú
Note: Some HDMI TV displays may apply over-scan, which will in effect crop the image
possibly causing loss of important content. Check the display manual for an option to
disable over-scan or adjust scaling.
HDMI connector details
Unit socket (female)
The unit is equipped with standard HDMI (Type A) connector(s).
HDMI cable requirements
Ú
Note: The unit should be turned off prior to connecting or disconnecting an HDMI cable.
While the HDMI standard does not state maximum cable length, signal may be
compromised on long runs. Only use Navico or other high quality HDMI certified cables. 3rd
party cables should be tested before installation. On runs over 10 m it may be required to
add an HDMI amplifier or use HDMI-CAT6 adaptors.
USB port
The USB port can be used to:
• Connect a keyboard.
• Connect a mouse.
Wiring | NSS evo3S Installation Manual
23
