Radar
About radar
Several radar sensors are supported.
This chapter describes features and options for a variety of supported radars. The features
and options available to you are dependent on the radar antenna(s) connected to your
system.

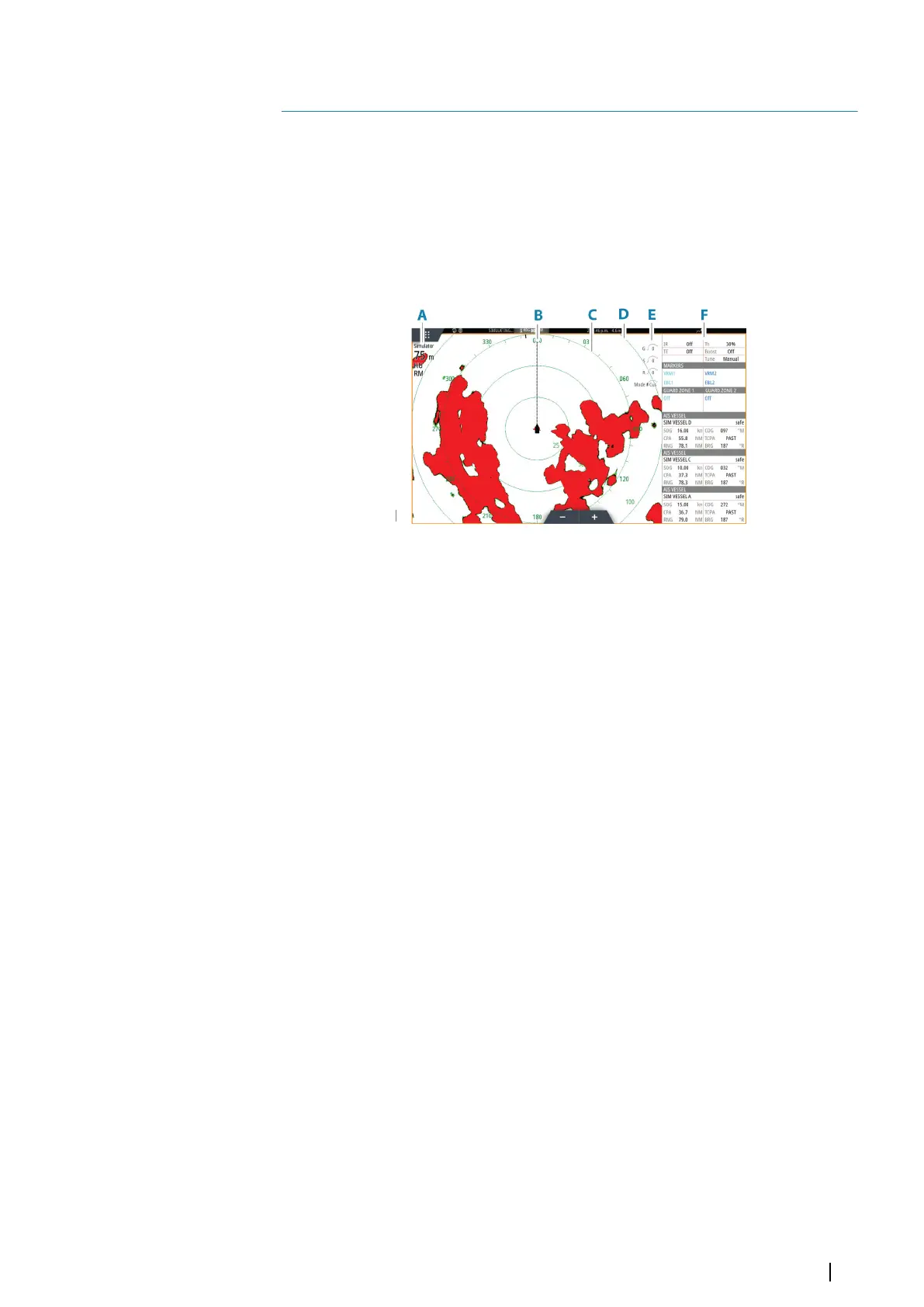

The Radar panel
A Radar information window
B Heading line*
C Compass*
D Range rings *
E Quick image controls
F Data bar**
* Optional radar symbology. Radar symbology can be turned ON/OFF collectively from the
radar menu, or individually as described in radar settings dialog.
** You can show or hide the data bar using the data bar option in the radar settings dialog.
Dual radar
You can connect to any combination of two supported radars and see both radar images at
the same time.
Ú
Note: Interference will be seen on the Broadband Radar on most ranges when a pulse or
Halo radar, and a Broadband radar are transmitting at the same time on the same boat.
We recommend to only transmit on one radar at a time. For example, transmit
Broadband radar for typical navigational usage, or pulse or Halo radar to locate weather
cells, defined coastlines at a distance and to trigger Racons.
You can select a dual radar panel by pressing and holding the Radar application button on
the home page, or by creating a favorite page with two radar panels.
Selecting the radar source
You specify the radar in the Radar panel by selecting one of the available radars in the radar
source menu option. If you have a multiple Radar panel, the radar is set individually for each
radar panel. Activate one of the radar panels, and then select one of the available radars in
the radar source menu option. Repeat the process for the second radar panel, and select an
alternative radar for this panel.
Ú
Note: The 3-digit radar source number is the last 3 digits of the radar's serial number.
