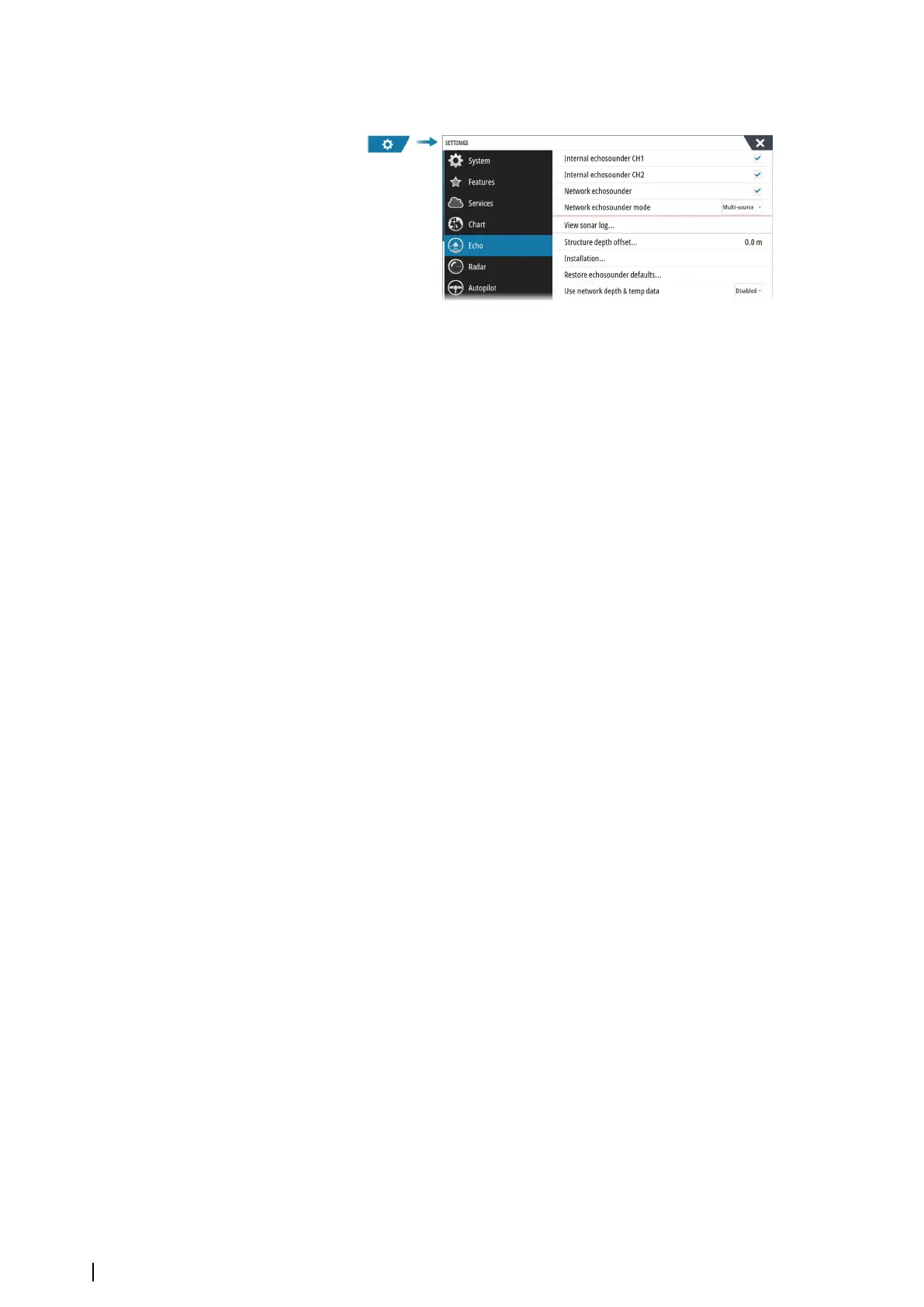

Echosounder settings
Internal echosounder CH1 and CH2
When selected, the internal echosounder channel is available for selection in the
echosounder panel menu.
When unselected, this option disables the internal echosounder channel in the unit. It will
not be listed as an echosounder source for any unit on the network. Unselect this option for
channels with no transducer connected.
Network Echosounder
Select to share transducers from this unit with other units connected on the Ethernet
network. In addition, the setting must be selected in order to see other enabled sonar
devices on the network.
When unselected, transducers connected to this unit cannot be shared with other units
connected on the network, nor can it see other sources on the network that have this feature
enabled.
For more information about how to setup the echosounder, refer to the separate Installation
manual.
Network echosounder mode
The network echosounder mode setting selects whether only one or multiple echosounder
sources can be selected at the same time.
Ú
Note: Single source is automatically selected if there are older legacy echosounders on
the network. You cannot change this setting if older legacy echosounders are on the
network. Multi-source mode should be selected if no legacy echosounder is connected
to the network.
Ú
Note: When changing the mode to multi-source you must wait 30 seconds and then
power down all sources for. Wait 1 minute, then restart all connected sources.
View sonar log
Used to view recordings. The log file is displayed as a paused image, and you control the
scrolling and display from the menu.
You can use the cursor on the image, measure distance, and set view options as on a live
image. If more than one channel was recorded in the selected log file, you can select which
channel to display.
Structure depth offset
All transducers measure water depth from the transducer to the bottom. As a result, water
depth readings do not account for the distance from the transducer to the lowest point of
the boat in the water or from the transducer to the water surface.
78
Echosounder | NSS evo3S Operator Manual
