Simrad NSS evo3S Installation Manual

A
B

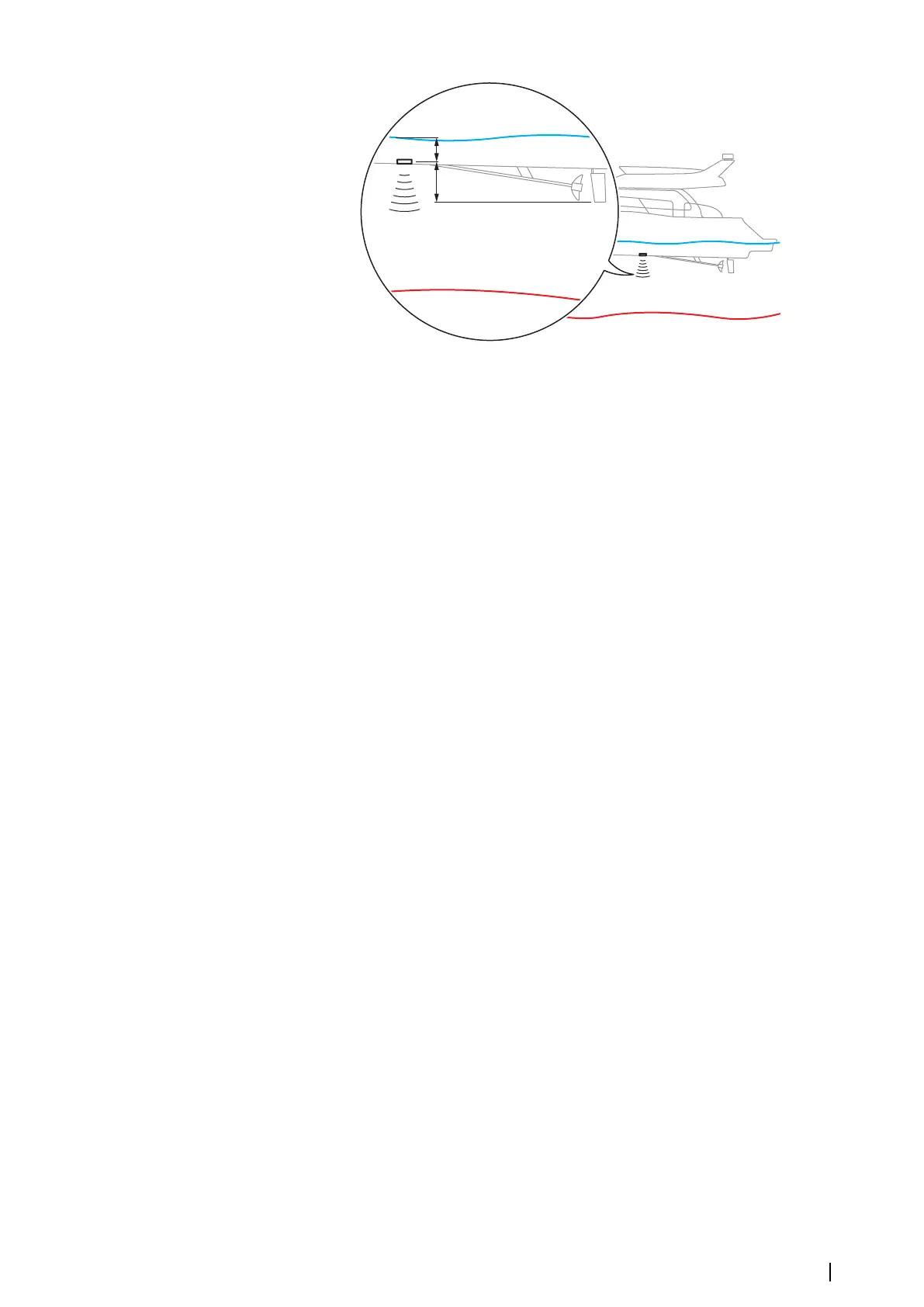

• To show the depth from the lowest point of the vessel to the bottom, set the offset equal
to the vertical distance between the transducer and the lowest part of the vessel, A
(negative value).
• To show the depth from the water surface to the bottom, set the offset equal to the
vertical distance between the transducer and the water surface, B (positive value)
• For depth below transducer, set the offset to 0.
Use network depth and temp data
Selects from which network source depth and temperature data is shared on the NMEA 2000
network.
Installation
Used for installation and setup. See the separate Installation manual.
Restore echosounder defaults
Restore echosounder settings to the factory supplied defaults.
ForwardScan installation
Available when the ForwardScan feature is connected.
For setup information, refer to "ForwardScan installation settings" on page 94.
Echosounder | NSS evo3S Operator Manual
79

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
