ForwardScan
About ForwardScan
ForwardScan sonar is a navigational aid that helps you monitor the underwater environment
in front of your vessel while carrying out slow speed maneuvers.
To use the ForwardScan feature you must have a ForwardScan transducer mounted on your
vessel.
With dual sonar capability a sonar/CHIRP and a ForwardScan transducer can be connected
directly to the unit.
The ForwardScan transducer must be connected to a compatible sonar module (or another
unit which has built-in sonar shared over the network).
If you have both a sonar/CHIRP and a ForwardScan transducer connected to different sonar
modules (or another unit which has built-in sonar shared over the network), you can view
both simultaneously on a single device.
Warning: Do not rely on this equipment as your principle source of
navigation or hazard detection.
Warning: Do not use this equipment to gauge depth or other conditions
for swimming or diving.

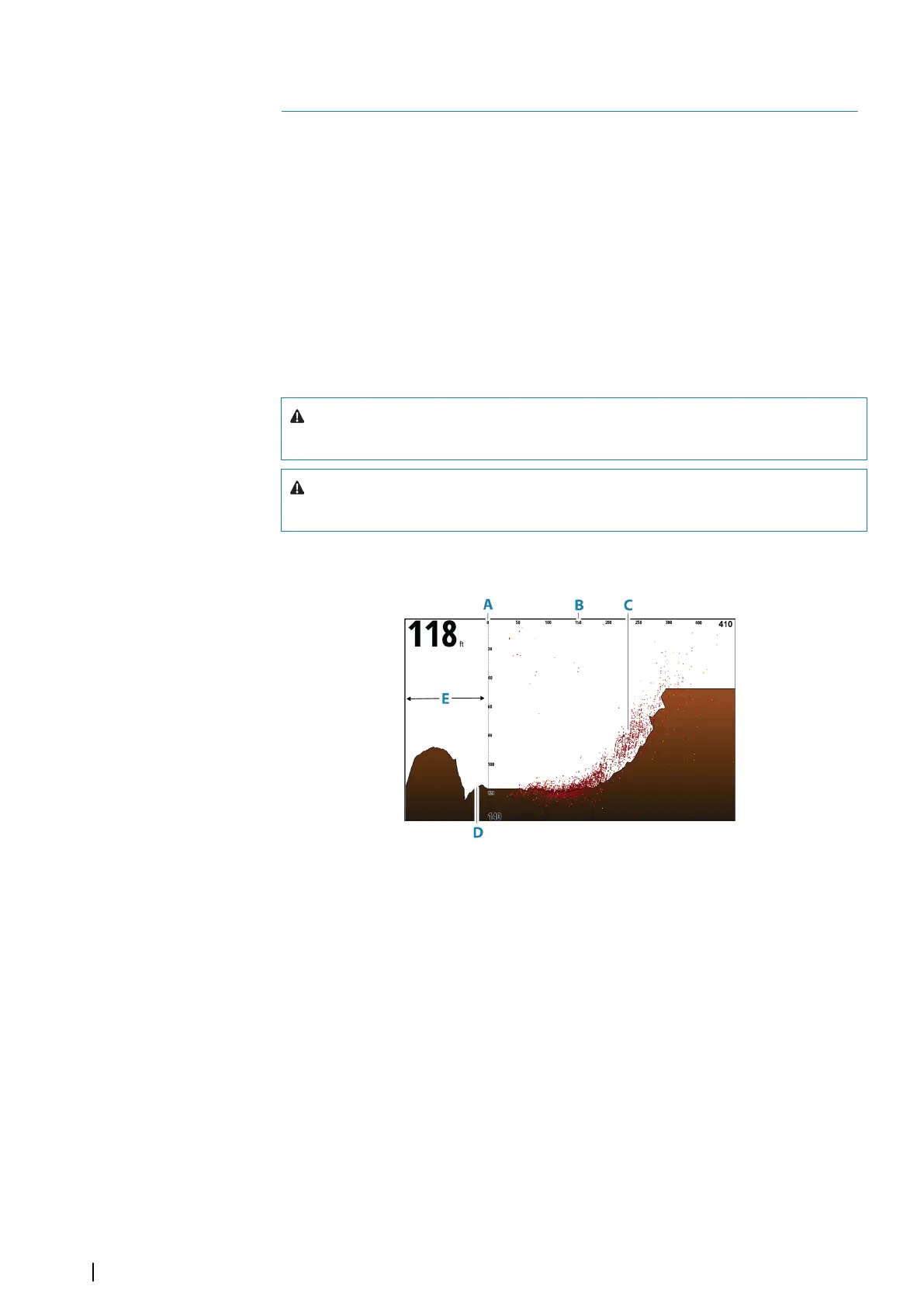

The ForwardScan image
A Depth range scale and vessel position
B Forward range scale
C Point data
D Bottom
E Depth history
15
92
ForwardScan| NSS evo3S Operator Manual

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
