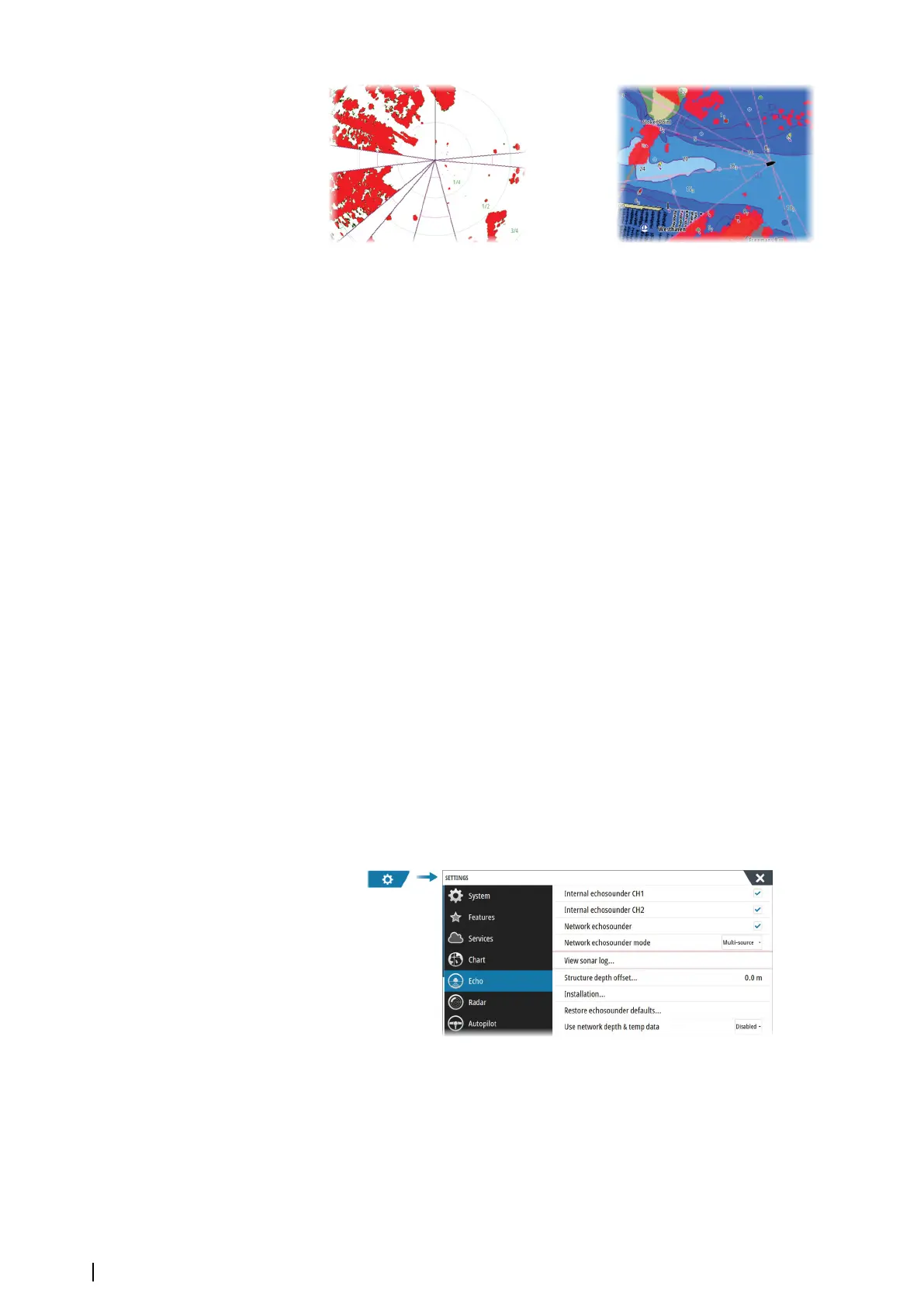

Main radar PPI Radar overlay on a chart
Adjust open array park angle
The park angle is the final resting position of the antenna relative to the heading line of the
radar when the radar is set to standby. The antenna will stop rotating at the desired offset.
Adjust local interference reject
Interference from some onboard sources can interfere with the Broadband radar. One
symptom of this could be a large target on the screen that remains in the same relative
bearing even if the vessel changes direction.
Halo light
Controls the levels of the Halo Radar blue accent lighting. The accent lighting can only be
adjusted when the radar is in standby mode.
Ú
Note: The blue accent pedestal lighting might not be approved for use in your boating
location. Check your local boating regulations before turning the blue accent lights ON.
Tune
The automatic tuning will work well in most installations. The manual tuning is used if it is
required to adjust the result from an automatic tuning.
Reset radar to factory defaults
Clears all user and installer settings applied to the selected radar source, and restores factory
settings.
Ú
Note: Use this option with caution. Take note of current settings first, especially those set
by the operator if radar has already been in active service.
Echosounder settings
Internal echosounder CH1 and CH2
When selected, the internal echosounder channel is available for selection in the
echosounder panel menu.
When unselected, this option disables the internal echosounder channel in the unit. It will
not be listed as an echosounder source for any unit on the network. Unselect this option for
channels with no transducer connected.
30
System setup | NSS evo3S Installation Manual
