Simrad NSS evo3S Installation Manual

Introduction

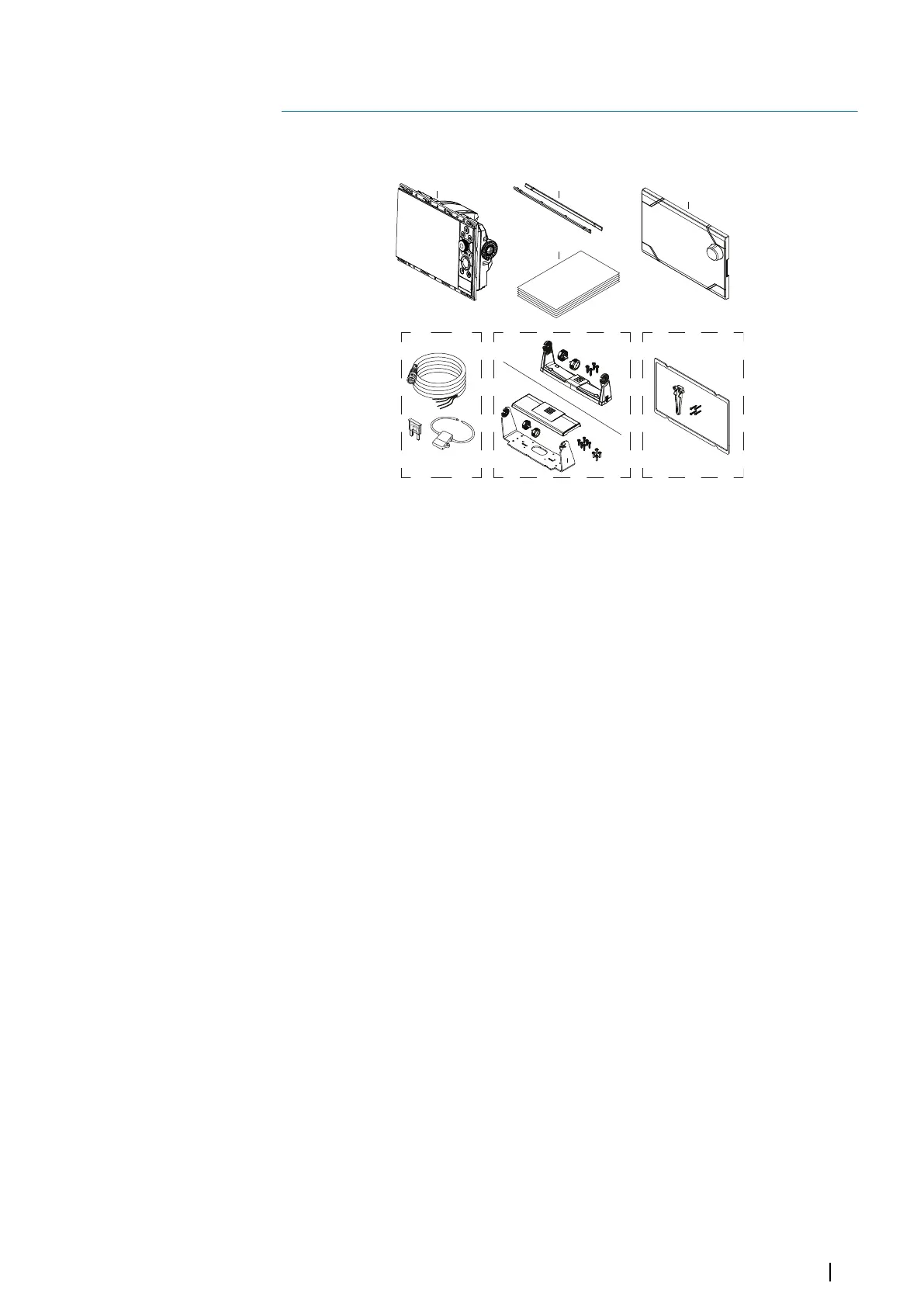

Parts included
A
C
B
D
E
Fa
G
Fb
A Display unit
B Bezel trim
C Documentation pack
D Sun cover
E Power cable kit
• Power cable
• Fuse
• Fuse holder
Fa U-bracket kit - 9" units
• Plastic U-bracket
• Bracket knobs
• Mounting screws
- 4x #10x3/4" self-tapping pan head
Fb U-bracket kit - 12" units
• Metal U-bracket
• Bracket cover
• Bracket knobs
• Mounting screws
- 6x #14x1" self-tapping pan head
- 4x M4x12 pan head
G Panel mounting kit
• Gasket
• Screw jig
• Mounting screws
- 9" and 12" units: 8x #4x1/2" self-tapping pan head
- 16" units: 12x #4x1/2" self-tapping pan head
Ú
Note: U-bracket kit for 16" units is sold separately.
1
Introduction | NSS evo3S Installation Manual
7

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
