Simrad NSS evo3S Installation Manual

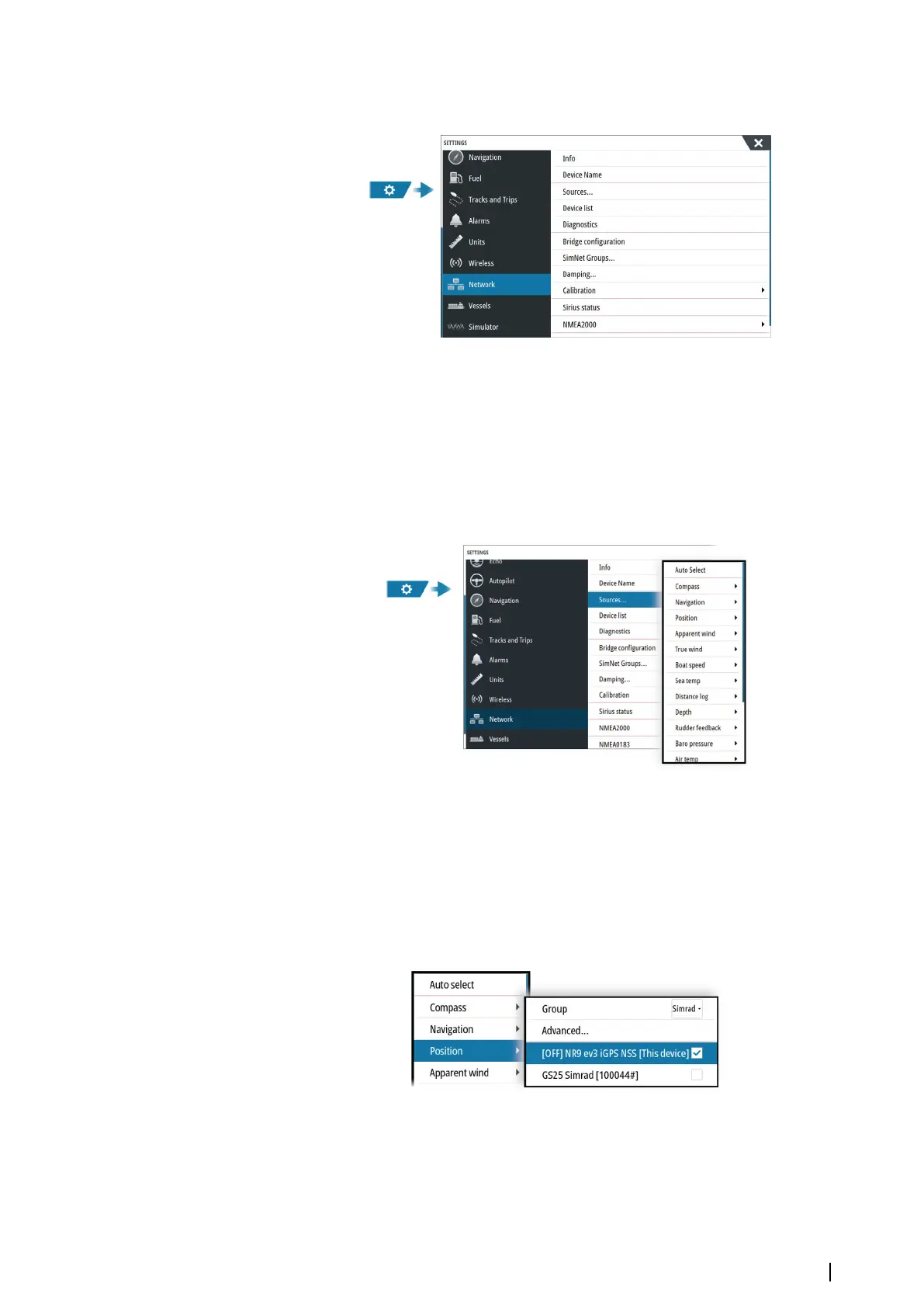

Network settings
Device name
Assigning a name is useful in systems using more than one device of the same type and size.
Sources
Data sources provide live data to the system.
When a device is connected to more than one source providing the same data, the user can
choose the preferred source. Before commencing with source selection make sure all
external devices and networks are connected and turned on.
Auto Select
The Auto Select option looks for all sources connected to the device. If more than one source
is available for each data type, selection is made from an internal priority list. This option is
suitable for the majority of installations.
Manual source selection
Manual selection is generally only required where there is more than one source for the same
data, and the automatically selected source is not the one desired.
Group source selection
The unit can use the same data sources that all other products on the network use, or
alternatively use a data source independently from other units.
If the unit is part of a source group, all source selection changes will affect all units belonging
to the same group.
System setup | NSS evo3S Installation Manual
37

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
