Simrad NSS evo3S Installation Manual

SideScan
About SideScan
SideScan provides a wide coverage in high detail of the seabed to the sides of your boat.
The SideScan panel is available when a SideScan capable transducer is connected to the
system.

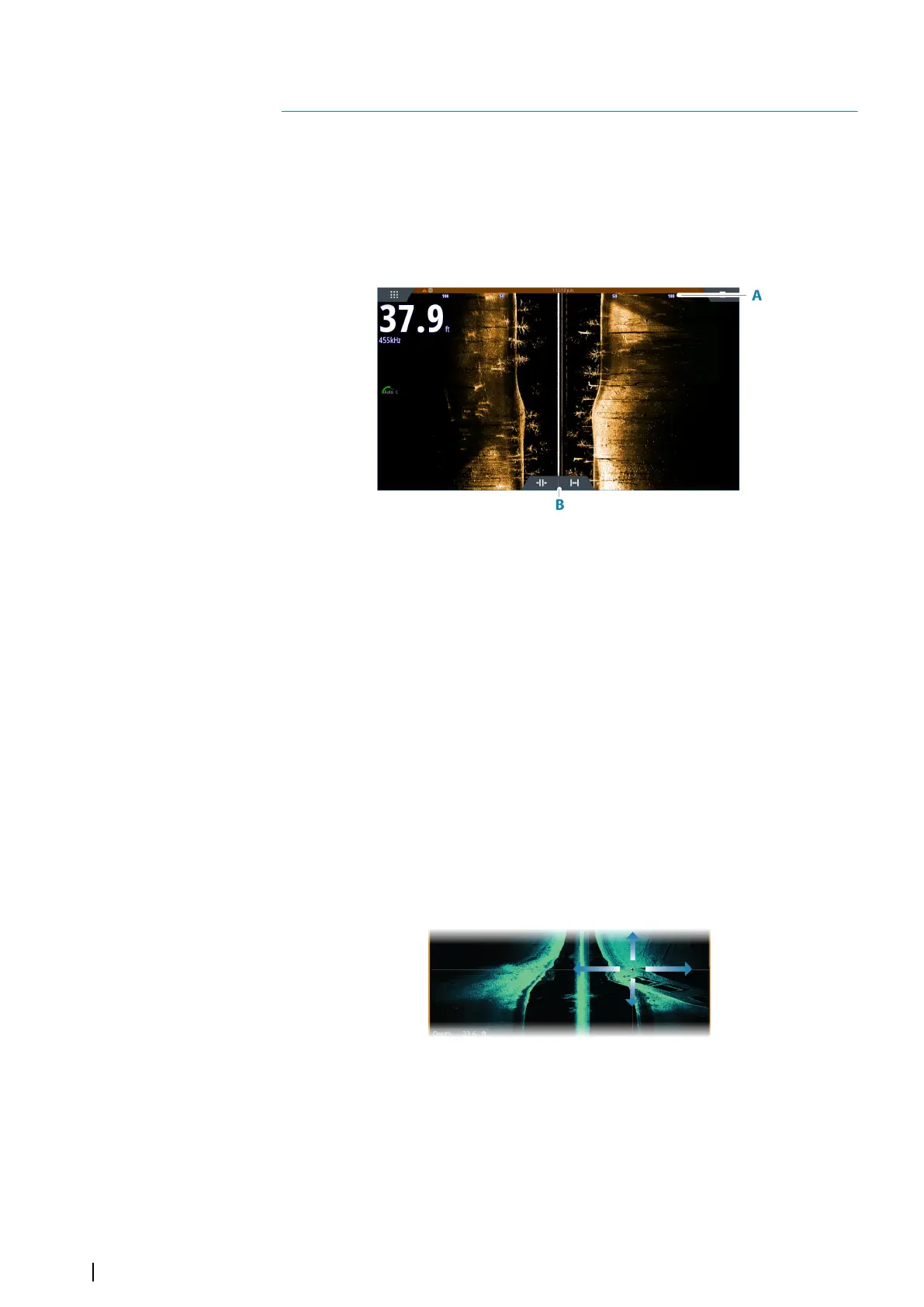

The SideScan panel
A Range scale
B Range icons
Zooming the image
Use the range icons or change the range menu setting to specify the distance out to the left
and right of the center displayed in the image. A change in the range causes a zoom in or
out of the image.
Using the cursor on the panel
When you position the cursor on the panel, the image pauses and the cursor information
window is activated. The left/right distance from the vessel to the cursor are shown at the
cursor position.
Viewing history
In a SideScan view, pan the image to see sides and history by maneuvering the image left,
right, and up.
To resume normal SideScan scrolling, select the clear cursor option.
Recording SideScan data
Displays the record log dialog. SideScan data can be recorded by selecting the correct file
format (xtf) in the record dialog. For more information, refer to "Recording log data" on page 70.
11
80
SideScan | NSS evo3S Operator Manual

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
