Simrad NSS evo3S Installation Manual

A
B

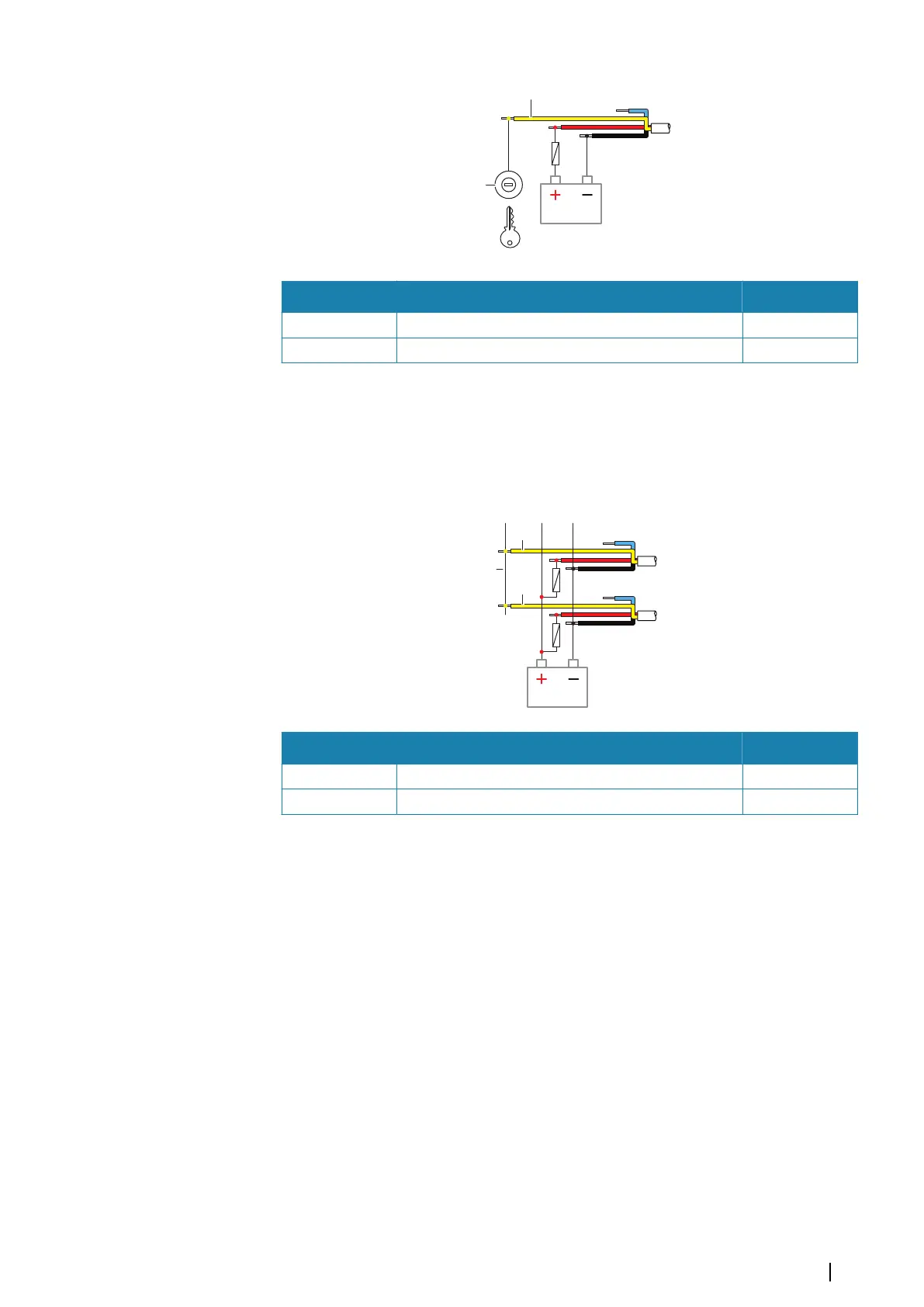

Key Purpose Color
A Power control wire Yellow
B Ignition switch
Power controlled by power bus
The yellow power control wire can either be an input that will turn on the unit when power
is applied, or an output that turns on other devices when the unit is powered on. It can be
configured at the installation stage to control the power state of displays and compatible
devices. When commissioning the system, the unit can be set to be a power control slave or
power control master.
A
B
A
Key Purpose Color
A Power control wire Yellow
B Power control bus
If a unit is configured as power control master and turned on by the power key, it will output
voltage on the power bus. This will power on both other power master units and power
slave units. If a unit is set to power control slave, it cannot be powered down using its own
power key while a power control master unit is turned on. Pressing the power key will set the
unit to standby. If all power control masters are off, power control slaves can be turned on
and off using their own power key. However, this will not turn on any other units connected
to the power bus.
Wiring | NSS evo3S Installation Manual
17

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
