Simrad NSS evo3S Installation Manual

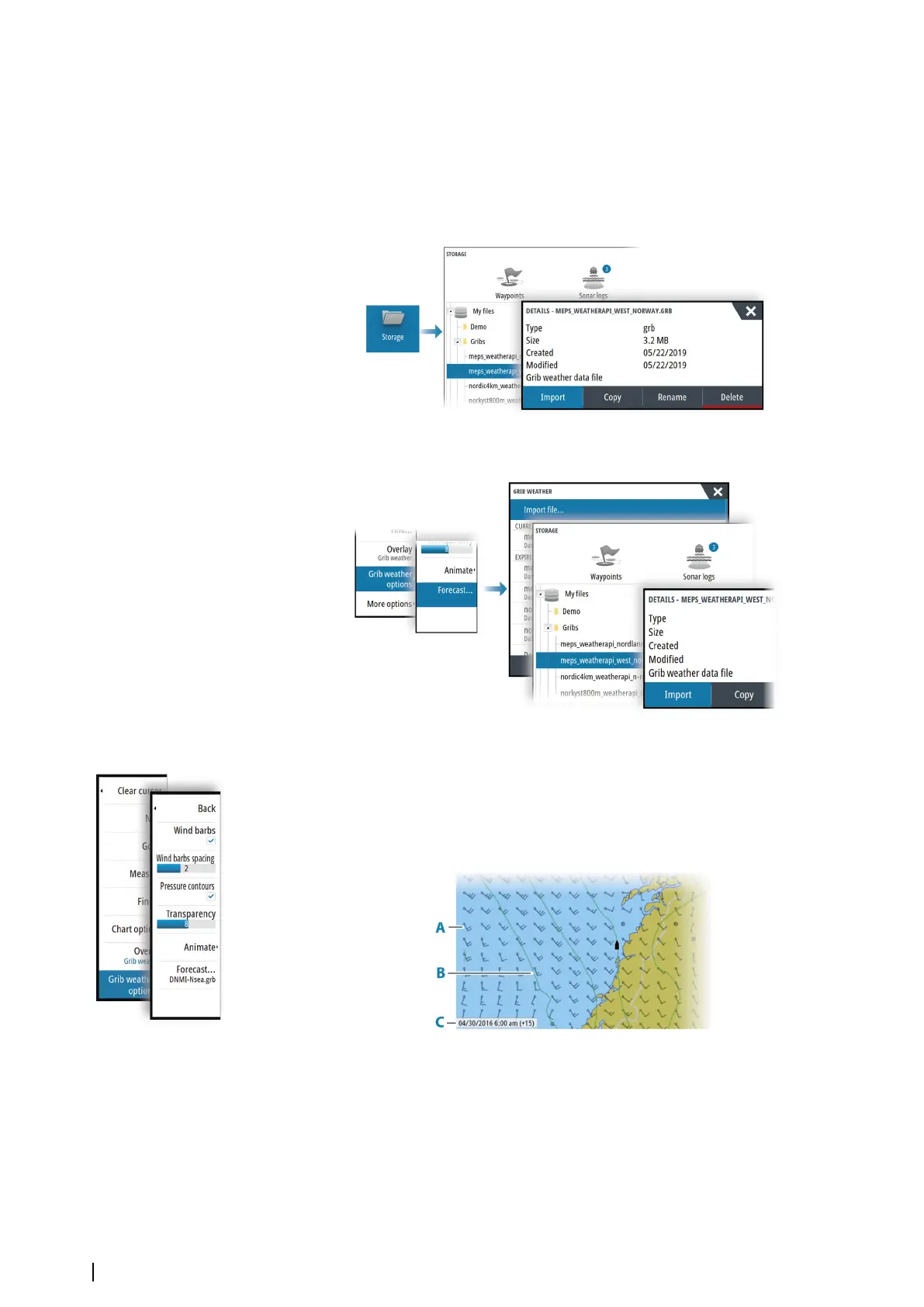

Importing GRIB data
GRIB data imported into memory can be displayed as chart overlay. The file can be imported
from any location that can be seen in the storage manager.
Ú
Note: GRIB data that is imported overwrites the GRIB data in memory.
You can import the GRIB files:
• From the storage manager
• From the forecast menu option on the chart panel. The Grib weather option is only
available if Grib weather is set as the overlay on the chart.
Displaying GRIB weather as overlay
Imported GRIB weather data can be displayed as an overlay on your chart panel.
When the GRIB weather overlay option is selected, the chart menu increases to show GRIB
weather options. From this menu you can select which weather symbols you want to display,
set the distance between the barbs, and adjust the opaqueness of the weather symbols.
A Wind barbs
B Pressure contours
C GRIB information window
126
Weather| NSS evo3S Operator Manual

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
