Pin Purpose
1 Video 1 Ground
2 Video 1 (+)
3 Video 2 Ground
4 Video 2 (+)
5 NMEA 0183 TX_B
6 NMEA 0183 TX_A
7 NMEA 0183 RX_A
8 NMEA 0183 RX_B

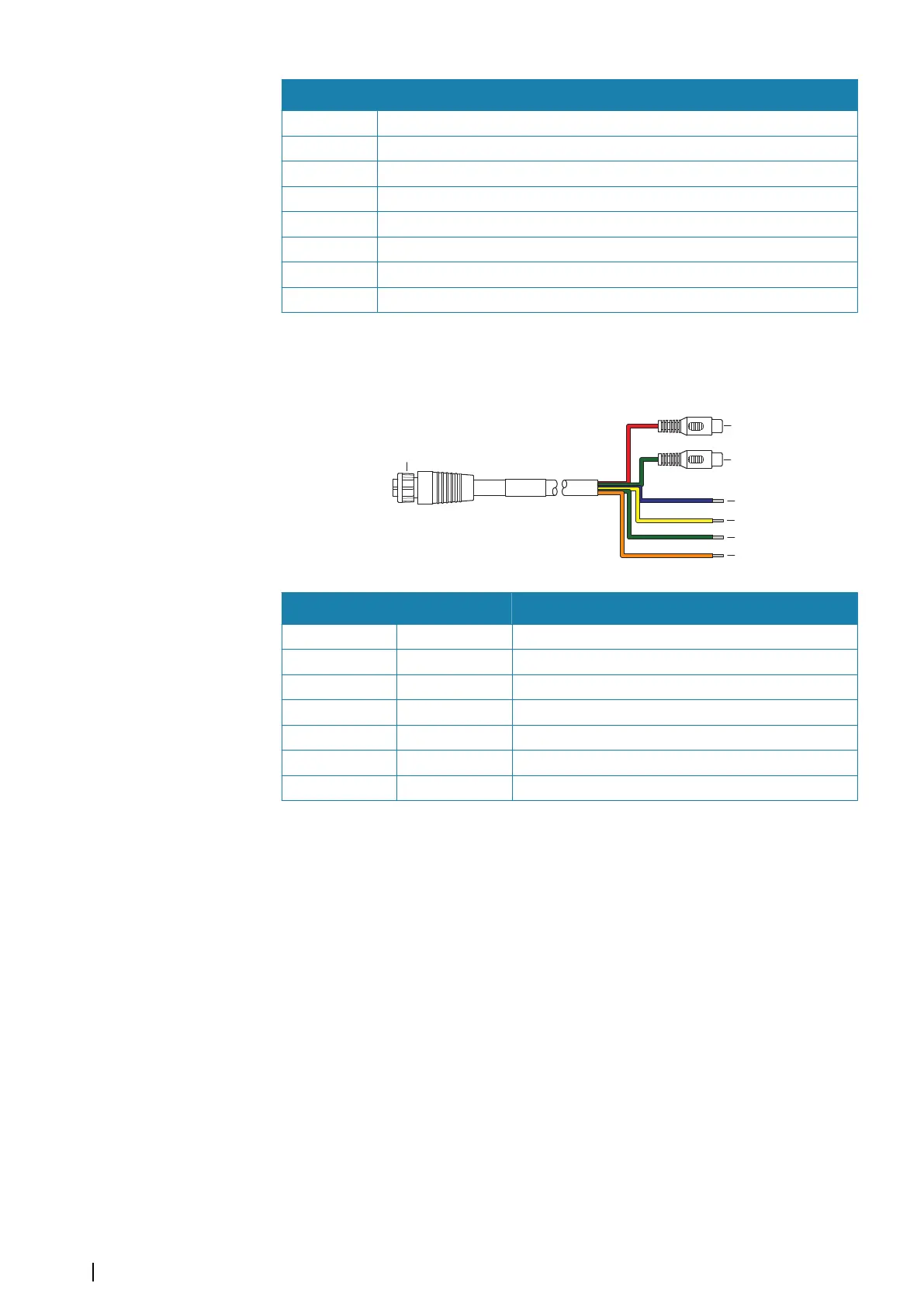

VIDEO IN/NMEA 0183 cable
Ú
Note: This cable (part number 000-00129-001) is not included with the unit.
Key Color Purpose
A Video in/data cable connector to unit
B Red Camera input 1 (RCA coaxial connector)
C Green Camera input 2 (RCA coaxial connector)
D Blue NMEA 0183 TX_B
E Yellow NMEA 0183 TX_A
F Green NMEA 0183 RX_A
G Orange NMEA 0183 RX_B
Video input
The unit can be connected to a composite video source, and display video images on its
display.
Ú
Note: Camera cables are not supplied, and will need to be selected to suit termination -
RCA at the unit, and typically BNC or RCA plug at the camera end.
Ú
Note: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
Ú
Note: Both NTSC and PAL formats are supported.
Video input configuration
Configurations to video input are made in the video panel. Refer to the Operator Manual for
more information.
NMEA 0183
The unit has a built in NMEA 0183 serial interface, providing both input and output. The
port(s) uses the NMEA 0183 (serial balanced) standard, and can be configured in the software
for different baud rates up to 38,400 baud.
20
Wiring | NSS evo3S Installation Manual
