REPAIR PROCEDURES
TB24 Plus&26J Plus Maintenance Manual 6-15 © Jun 2022
Hydraulic Generator
The hydraulic generator is optional. Please confirm
whether the hydraulic generator can be installed on the
machine before installation.
Installation

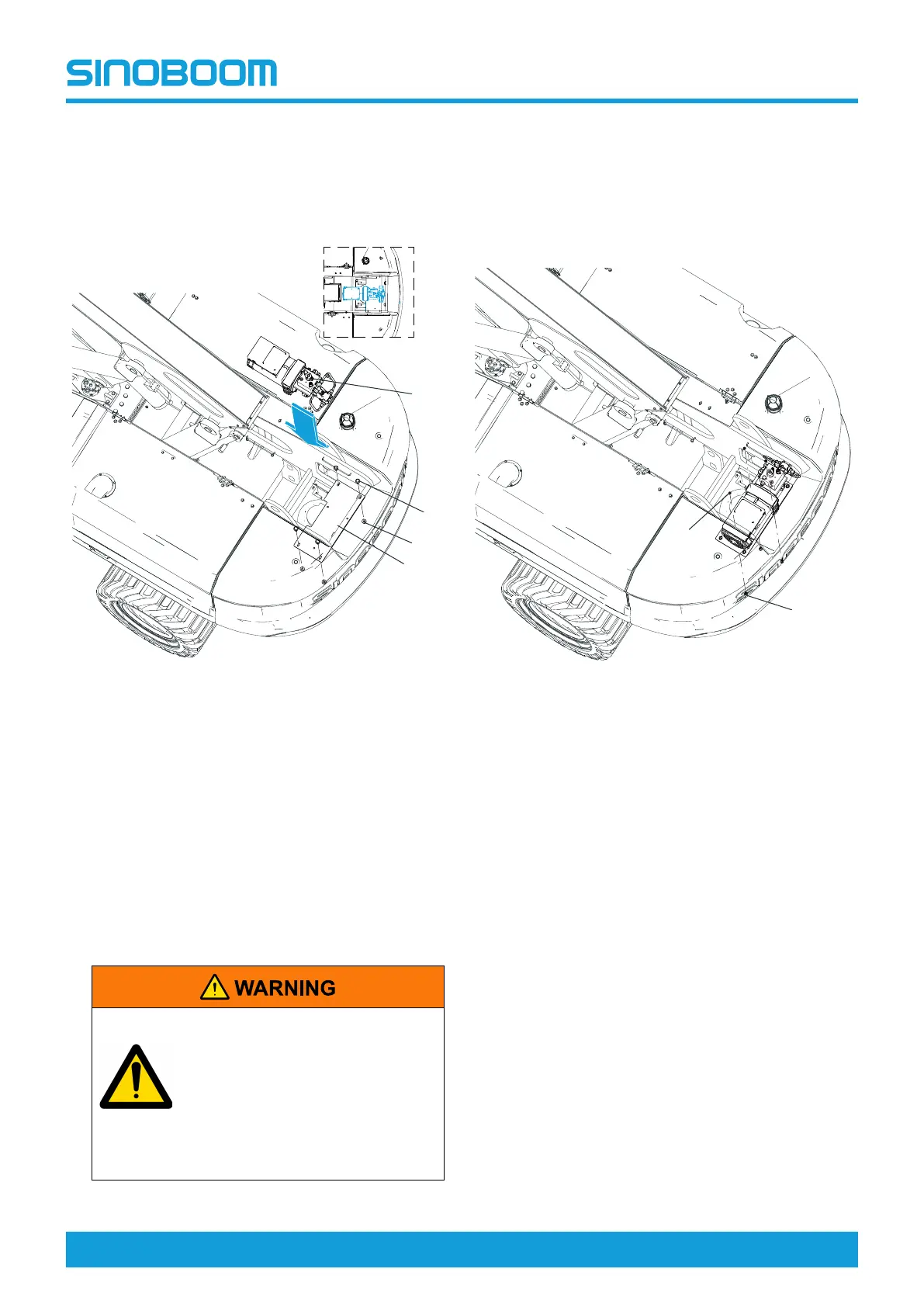

Figure 6-24
1. Raise the boom to the position at about 45° above
the horizontal plane to leave enough space for the
installation of the hydraulic generator.
2. Install the mounting plate #1 of the hydraulic
generator and fix it with the bolt #2 and nut #3.
3. Lift the hydraulic generator #4 to be above the
turntable counterweight with a suitable lifting
device, and adjust the direction (refer to the
placement position in the dotted box “A” above), so
that the hydraulic generator can enter the turntable
structure normally.
MACHINE DAMAGE HAZARD
Pay attention to the position of
the hydraulic generator during
installation to ensure that the
hydraulic generator does not
interfere with other parts of the
machine during the whole
process.
4. After the hydraulic generator safely enters the
turntable structure shown in the figure above, adjust
the direction again by rotating the hydraulic
generator 90° (refer to the placement position “C”
on the right side of the figure above).
5. Align the mounting hole of hydraulic generator with
that of the mounting plate #1.
6. Install and tighten the hydraulic generator with bolt
#5 and nut #6.
Debugging
After the hydraulic generator is installed, the machine
needs to be debugged. Please contact the after-sales
personnel of Sinoboom.
