Proportional configuration
1. On the ADVANCED SETTING interface, select
Proportional Configuration through
and , and
press
to enter PROPOR. CONFIG 1 interface.

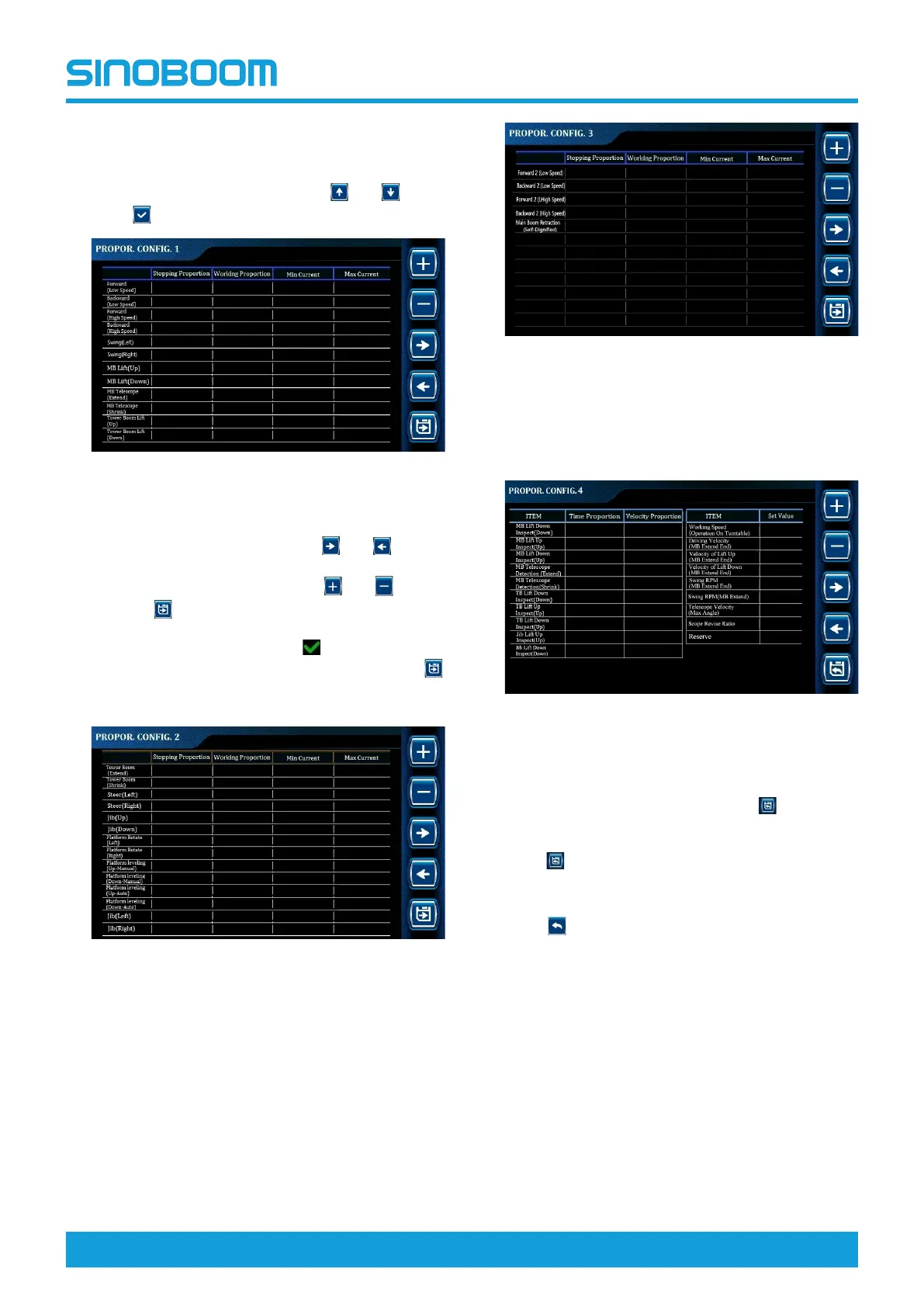

Figure 7-15 PROPOR. CONFIG 1 interface
2. On the PROPOR. CONFIG 1 interface, select the
parameter to be adjusted through
and (the
selected option will be flashing), change the
selected parameter value through
and , press
and hold
for 3s to save the parameters on the
current page and jump to PROPOR. CONFIG 2
interface (there will be the icon
in the top middle
of the interface after successful saving), or press
to jump to PROPOR. CONFIG 2 interface without
saving the parameters on the current page.
Figure 7-16 PROPOR. CONFIG 2 interface
3. Similarly, on the PROPOR. CONFIG 2 interface,
follow the above operations to change the
parameters requiring adjustment, and jump to the
PROPOR. CONFIG 3 interface.
Figure 7-17 PROPOR. CONFIG 3 interface
4. Similarly, on the PROPOR. CONFIG 3 interface,
follow the above operations to change the
parameters requiring adjustment, and jump to the
PROPOR. CONFIG 4 interface.
Figure 7-18 PROPOR. CONFIG 4 interface
5. On the PROPOR. CONFIG 4 interface, follow the
above operations to change the parameters
requiring adjustment. Press and hold
for 3s to
save the parameters on the current page and return
to the previous ADVANCED SETTING interface, or
press
to return to the previous ADVANCED
SETTING interface without saving the parameters
on the current page.
6. Press
successively to return to the main
interface, and power off the machine as required.
Notes:
The maximum current, minimum current, working
proportion, and stopping proportion are only valid for
actions controlled by proportional valves. For actions
not controlled by proportional valves, please adjust the
working proportion and stopping proportion to within 10,
otherwise the action response will be delayed.
• Minimum current: refers to the starting current of
actions, which affects the starting and inching
performance of actions. The minimum current
should be set to a value that allow the action to just
