© Jun 2022 7-14 TB24 Plus&26J Plus Maintenance Manual
REXROTH CONTROL SYSTEM
Figure 7-27 OUTPUT INFO 2 interface
Proportional information
• The proportional information option is mainly used
to query the output status of the proportional valve
output points configured on the machine, thus
assisting in determining the trouble causes
• The configuration of proportional valves is subject to
the actual machine configuration.

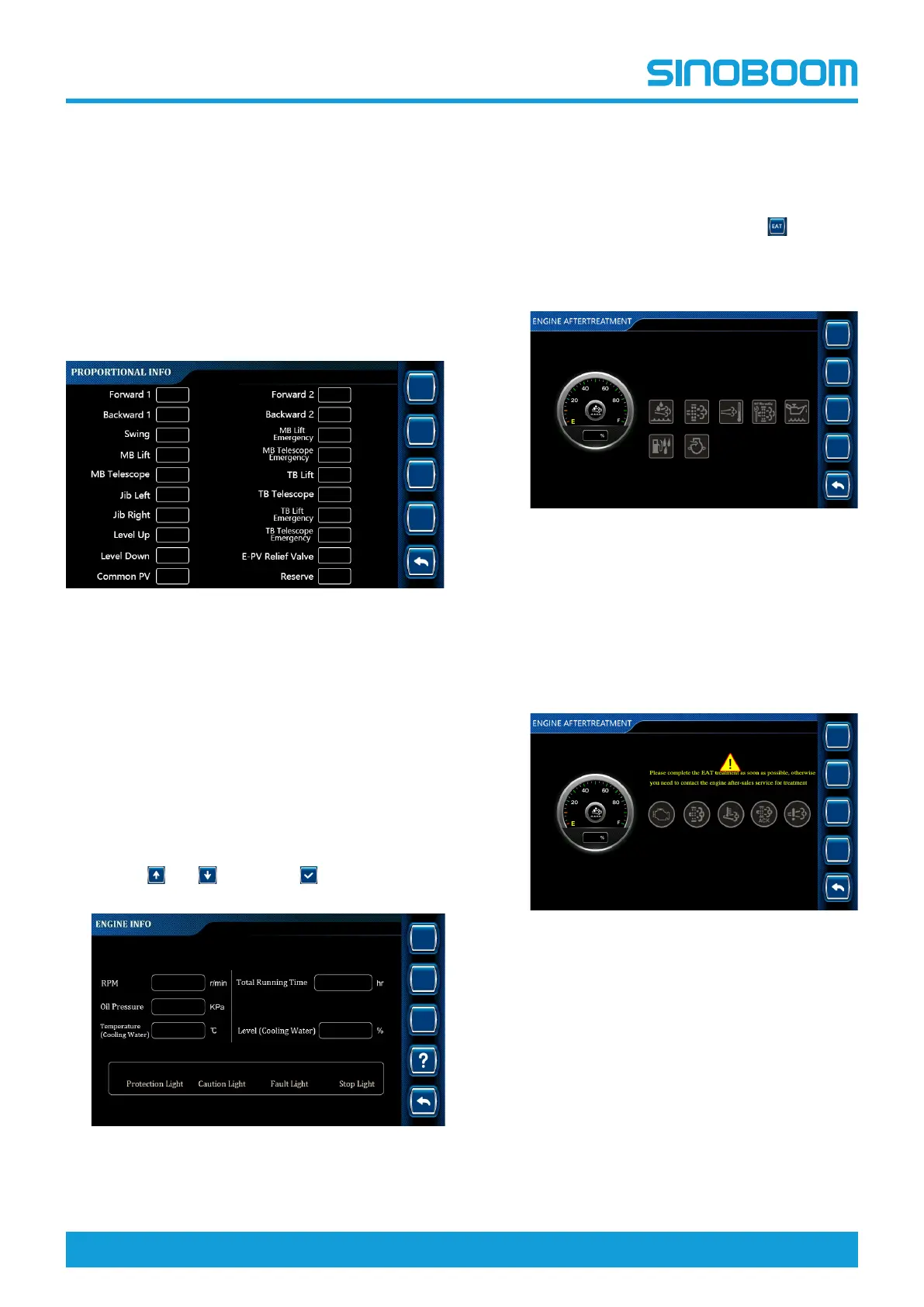

Figure 7-28 PROPORTIONAL INFO interface
Engine information
• The machine information option is mainly used to
query the status and fault information of the engine
configured on the machine, so as to determine
whether the engine is working normally.
• The configuration of engine is subject to the actual
machine configuration.
1. On the SYSTEM INFO interface, select Engine Info
through
and , and press to enter ENGINE
INFO interface.
Figure 7-29 ENGINE INFO interface
2. On the ENGINE INFO interface, users can query
the engine RPM, oil pressure, temperature (cooling
water), total running time, level (cooling water),
protection light, caution light, fault light and stop
light.
3. On the ENGINE INFO interface, press
to enter
EAT INFO interface.
1) If the machine does not need EAT, the status
indicator will be off.
Figure 7-30 EAT INFO interface (-
without requiring EAT)-Equipped with
Deutz engine
2)
For machines requiring EAT, if a yellow warning
appears on the EAT INFO interface, and the
status indicator light flashes, please perform
EAT as indicated by the flashing indicator light
as soon as possible.
Figure 7-31 EAT INFO interface (with
EAT not started)-Equipped with Yuchai
or Yanmar engine
3)
If EAT is not completed within the specified
time, a red warning will appear on the EAT
INFO interface, and the status indicator light will
be on. At this time, it is necessary to contact the
engine manufacturer for EAT.
To Next Page
