REXROTH CONTROL SYSTEM
TB24 Plus&26J Plus Maintenance Manual 7-15 © Jun 2022

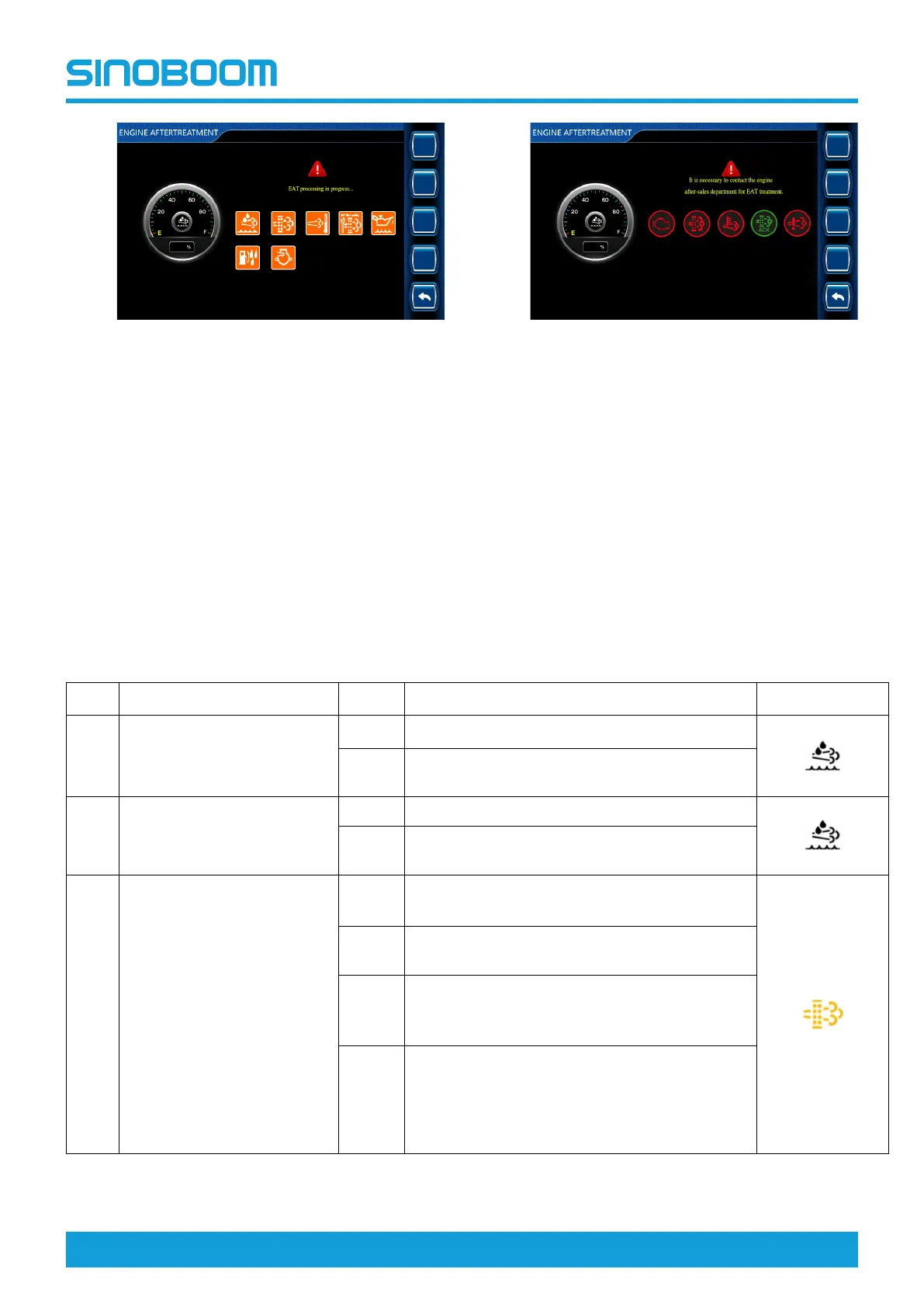

Figure 7-32 EAT INFO interface (with
EAT started)-Equipped with Deutz
engine
Figure 7-33 EAT INFO interface (with
EAT started)-Equipped with Yuchai or
Yanmar engine
Table 7-3 Descriptions of indicator lights for Deutz engine
No.
Indicator light
Status
Description Symbol
1
SCR fault warning
indicator light
Off
SCR system is working normally
Solid
on
SCR system is faulted
2
DEF level indicator light
Off DEF level is normal
Solid
on
DEF level is too low
3
Standstill regeneration
indicator light
Off
Standstill regeneration is not performed or
requested
Solid
on
Standstill regeneration is being performed
Slow
flashi-
ng
Standstill regeneration is requested
Fast
flashi-
ng
Standstill regeneration is requested, but
since the driver has ignored the request for a
long time, the standstill regeneration can
only be completed through the DEUTZ
diagnostic tool.
