A-11 Inspect Fuel Strainer (fuel-water
separator)
NOTICE
Shut off the engine before inspection.
Inspecting the fuel strainer (fuel-water separator) is vital
to proper functioning of engine. Failure to perform this
inspection procedure will result in engine working
improperly or component damage.
EXPLOSION AND FIRE HAZARD
• Diesel is an inflammable material.
This procedure must be
performed outdoors in well-
vented area and far away from
flames.
• Ensure that a conforming fire
extinguisher is readily accessible
when performing this inspection
procedure.
1. Open the right turntable cover.
2. Locate the fuel strainer.

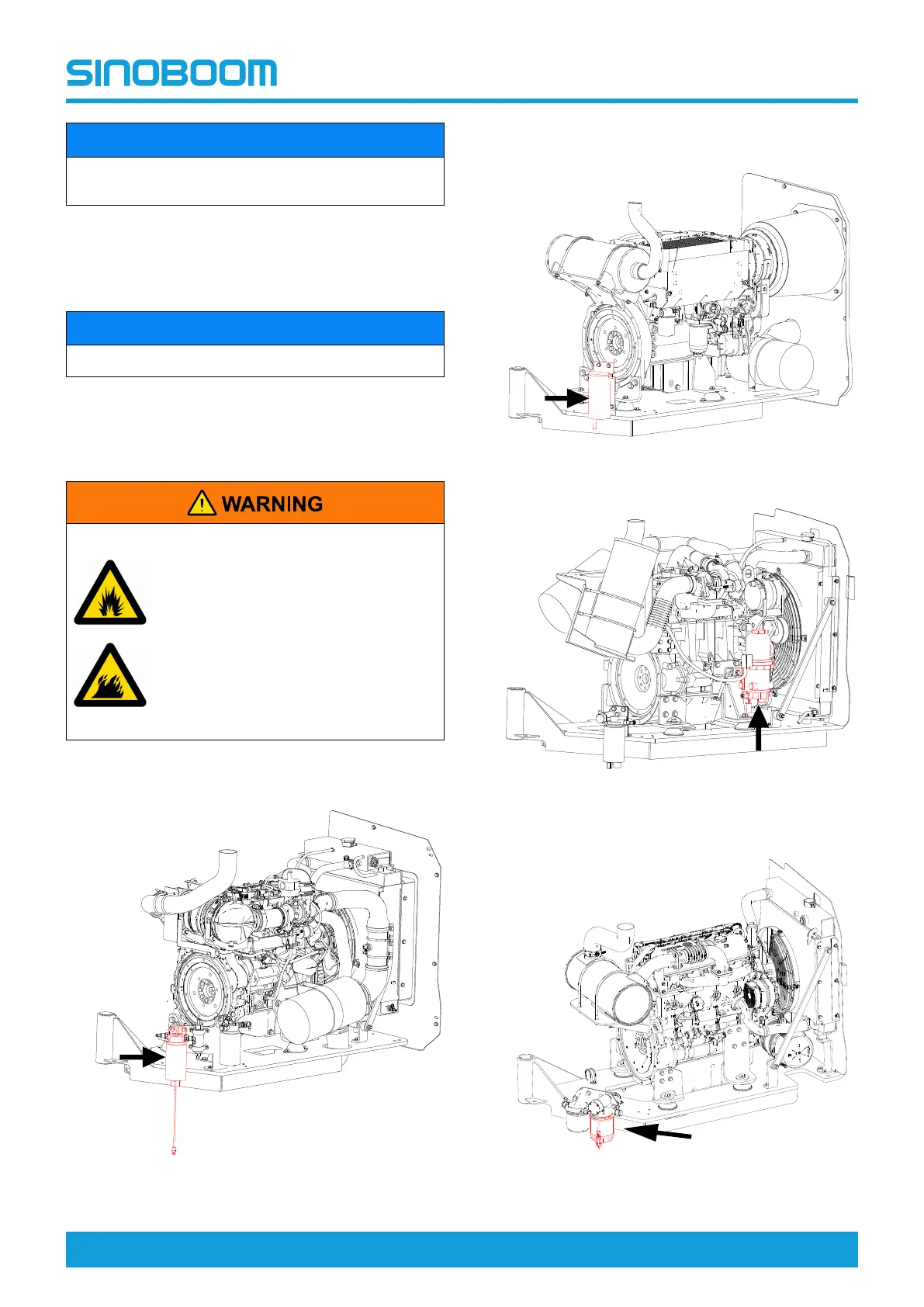

Figure 5-6 Deutz TD2.9 L4 fuel strainer
Figure 5-7 Deutz TD2011L04i fuel strainer
Figure 5-8 Cummins QSF2.8t3TC72 fuel-
water separator
