© Jun 2022 7-18 TB24 Plus&26J Plus Maintenance Manual
REXROTH CONTROL SYSTEM

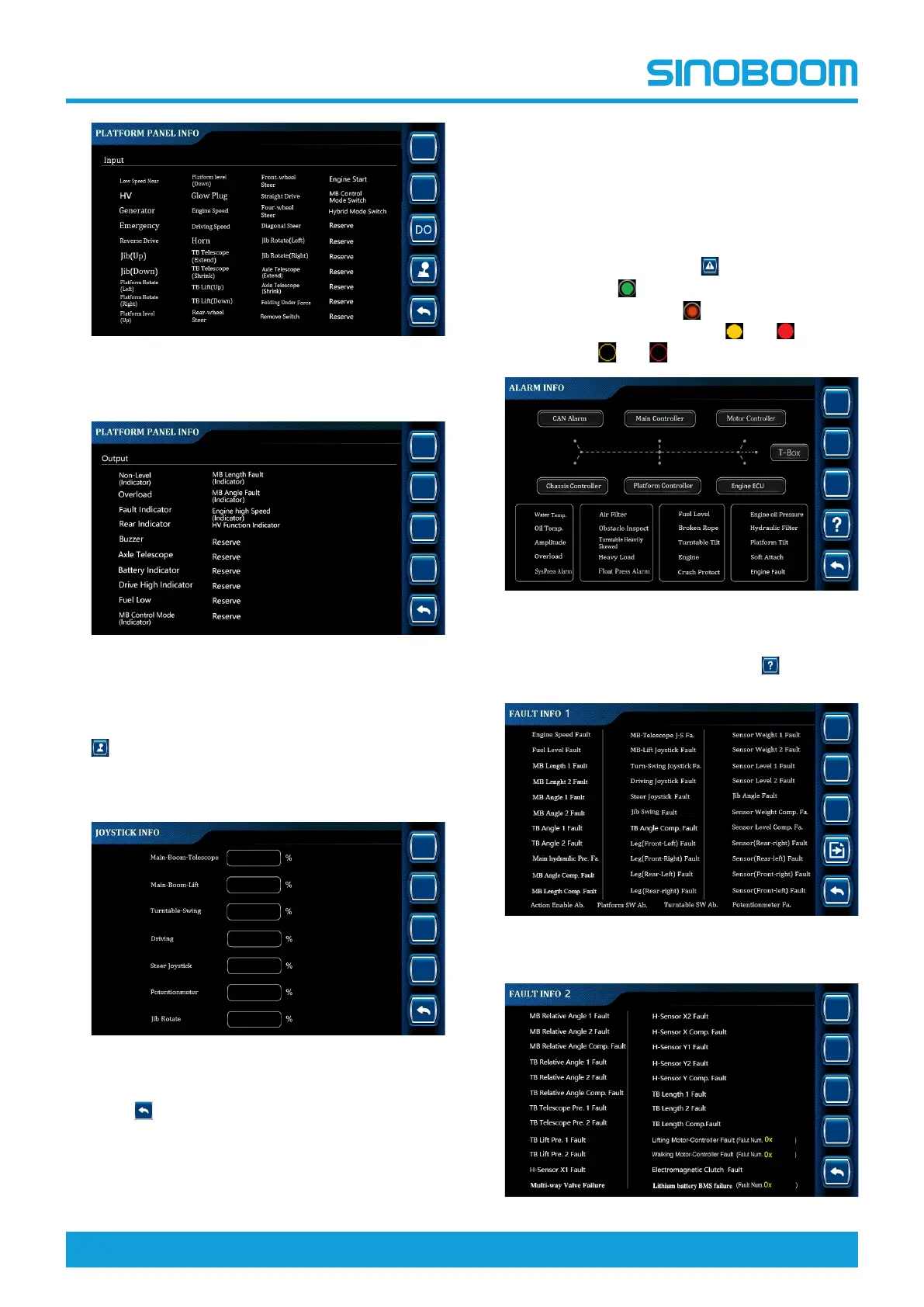

Figure 7-36 PLATFORM PANEL INFO
interface-input
Figure 7-37 PLATFORM PANEL INFO
interface-output
2. On the PLATFORM PANEL INFO interface, press
to enter the JOYSTICK INFO interface to query
the actual value of joystick/potentiometer, so as to
check whether the position status of joystick/
potentiometer is normal.
Figure 7-38 JOYSTICK INFO interface
3. Press successively to return to the main
interface, and power off the machine as required.
ALARM INFORMATION
The alarm information option is mainly used to query
the alarm or fault status of the control system, so as to
determine the cause of fault and facilitate
troubleshooting.
1. On the main interface, press
to enter the ALARM
INFO interface. (
indicates that the CAN
communication is normal,
indicates that the CAN
communication alarm is normal,
and indicate
other alarms,
and indicate no input).
Figure 7-39 ALARM INFO interface
2. On the ALARM INFO interface, press to enter
FAULT INFO interface.
Figure 7-40 FAULT INFO interface 1
To Next Page
