REPAIR PROCEDURES
TB24 Plus&26J Plus Maintenance Manual 6-51 © Jun 2022

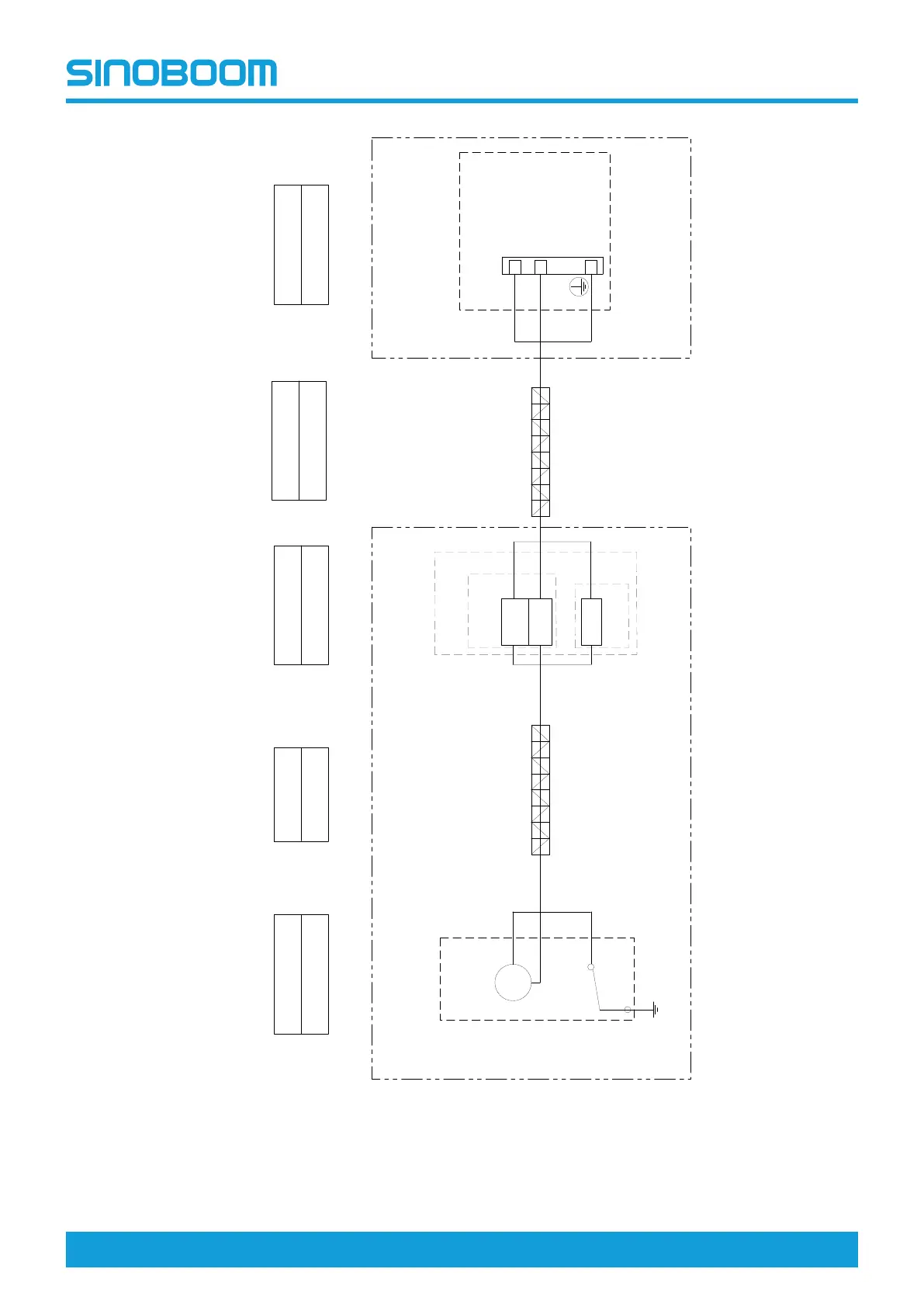

Figure 6-52 Electrical schematic of hydraulic generator (Australia)
12kW,1P
CF34.UL 100.04.D 4×10
Hydraulic Generator
50Hz
230VAC
Wire Connecting Terminal
Leakage Protector
Leakage Protector Assembly
63A
230V Socket(AC)
Hydraulic Generator
Drag Chain of Cable(4×10)
Leakage Protector Assembly
Drag Chain of Cable(4×10)
Socket
1-Phase
Turntable Side
Platform Side
CF34.UL 100.04.D 4×10
Do wire harness only do not
connect the real object
Do wire harness only do not
connect the real object
L
L
PE
N
L
N
N
L
PE
N
Shell GND
PE
L
N
PE
