Section 5 – Procedures Mast Chain Visual Inspection
9. From a position outside of the work platform,
remove the mast cover.

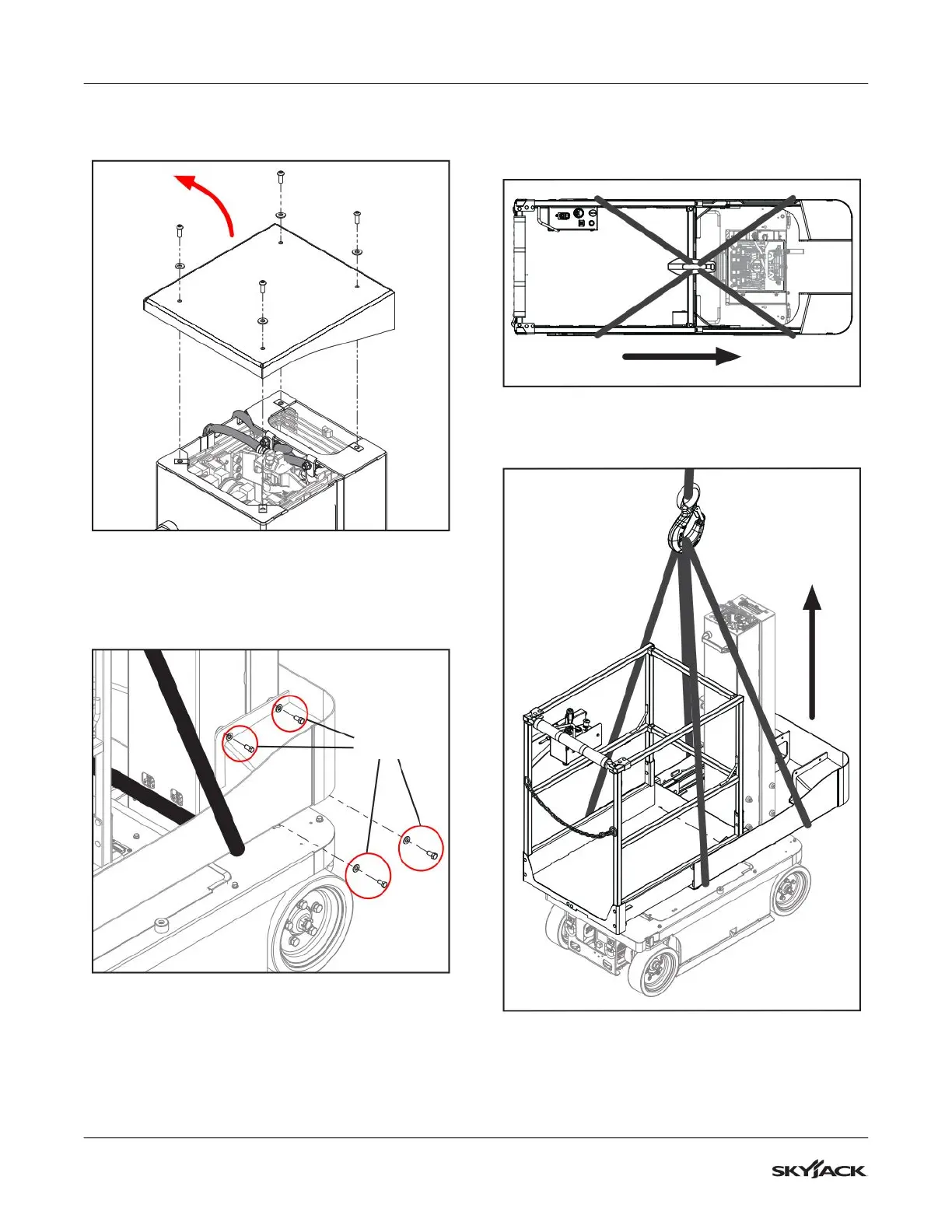

Figure 16 Top Cover Removal
10. Support the platform using suitable lifting straps.
Remove the hardware securing the platform to
the mast. Set aside.
Remove
Figure 17 Platform Hardware Removal
11. Raise the platform slightly then carefully and
slowly slide the platform towards the back of the
machine to clear the mast.
Figure 18 Platform Positioning
12. Raise the platform over the mast and set aside.
Figure 19 Platform Removal

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
