Skyjack SJ16 Service Manual

125
SJ12, SJ16
213558ADA
Mast Roller Replacement Section 5 – Procedures
5.14-3 Mast Section 3 Installation

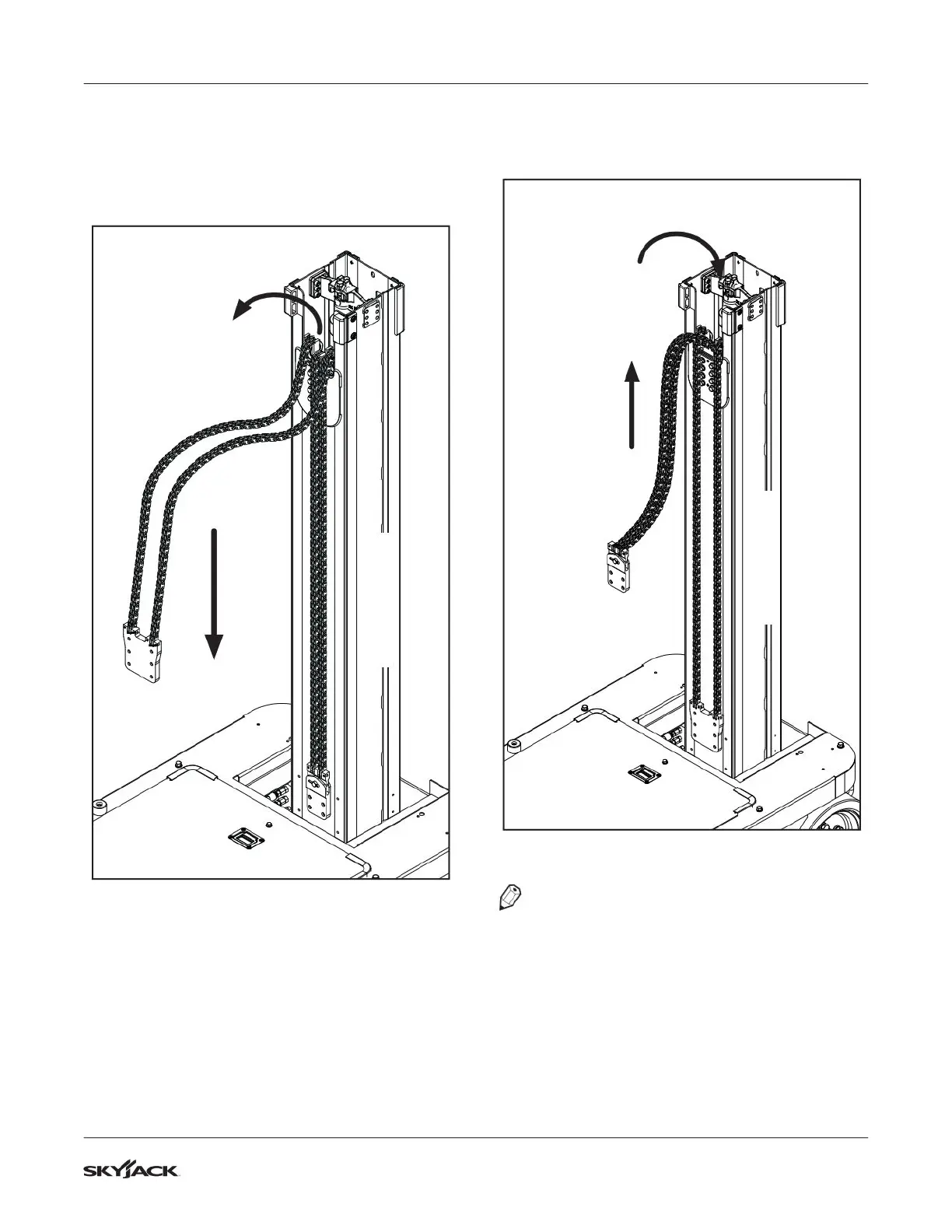

1. Pull the chains attached to mast section 1 out of
the mast column and lay them against the front
of mast section 2.
Section 2
Figure 52 Section 1 to Section 3 Chains
2. Pull the chains attached to mast section 2 up
and over the double rollers so they drop into the
mast column. Make sure they do not tangle.
Section 2
Figure 53 Section 2 Chains
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 3 for a
straight, even lift.

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
