Skyjack SJ16 Service Manual

113
SJ12, SJ16
213558ADA
Mast Chain Visual Inspection Section 5 – Procedures
13. On the side of the mast disconnect the AC
power supply cable from the weatherproof outlet
box, then loosen strain relief and remove the
harness (ANSI/CSA Only).
14. Remove the 3 harness clamps at the top of the
mast assembly. Secure the harnesses to the
cylinder mounting bracket with cable ties.
Cable Wrap
Clamp

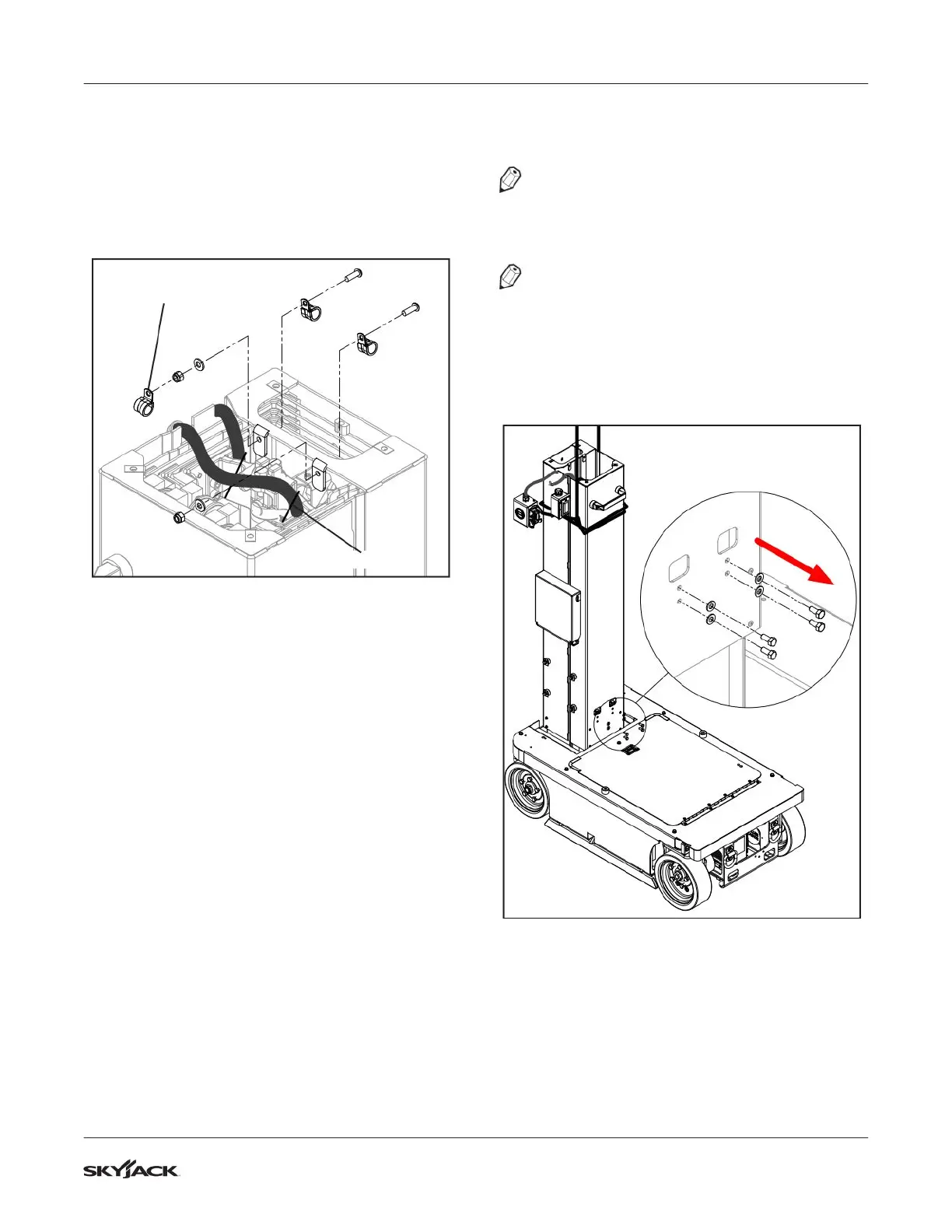

Figure 20 Harness Clamps
5.12-2 Mast Section 5 Removal (SJ16
Only)
NOTE
It is recommended that 2 lifting straps (or similar)
be attached evenly to mast section 5 for a
straight, even lift
NOTE
Attach lifting straps away from mast grab handle
and receptacle box.
1. Disconnect the chains by removing the
hardware securing the chain mounts inside mast
section 5 as shown.
Figure 21 Chain Tensioner Disconnection (Section 5)

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
