Skyjack SJ16 Service Manual

32
213558ADA
SJ12, SJ16
Section 2 – Maintenance Tables and Diagrams Floor Loading Pressure ANSI/CSA
2.6 Floor Loading Pressure ANSI/CSATable
Model
Total MEWP
Weight
Total MEWP Load
Wheel** LCP*** OFL***
SJ12
min* 863 kg (1905 lb) 275 kg (610 lb) 647 kPa (94 psi) 7.8 kPa (162 psf)
max* 1090 kg (2405 lb) 430 kg (950 lb) 891 kPa (129 psi) 9.8 kPa (205 psf)
SJ16
min* 980 kg (2160 lb) 355 kg (783 lb) 774 kPa (112 psi) 8.8 kPa (184 psf)
max* 1207 kg (2660 lb) 510 kg (1125 lb) 1010 kPa (146 psi) 10.8 kPa (226 psf)
1836AB*
Min: Minimum MEWP weight (Unloaded platform, no options/attachments)
Max: Maximum MEWP weight (Platform loaded to capacity with options/attachments)
**
Wheel is the weight that can be experienced on one wheel
Note: This is more than 25% of the machine weight due to possible weight distribution over the machine and
platform.
***
LCP: Local Concentrated Pressure is a measure of how hard the MEWP presses on the area in direct contact
with the floor/tire.
OFL: Overall Floor Load (Pressure) is a measure of the average load the MEWP imparts on the whole
surface directly underneath the chassis. This has been calculated by dividing the MEWP weight by the
overall floor area occupied by the MEWP (on wheels).
Note: The floor covering (e.g., tile, carpet, etc.) or the structure (e.g., beams) of the operating surface must
be able to withstand more than the values indicated above.
NOTE
The LCP or OFL that an individual surface can withstand varies from structure to structure and is
generally determined by the engineer or architect for that particular structure.

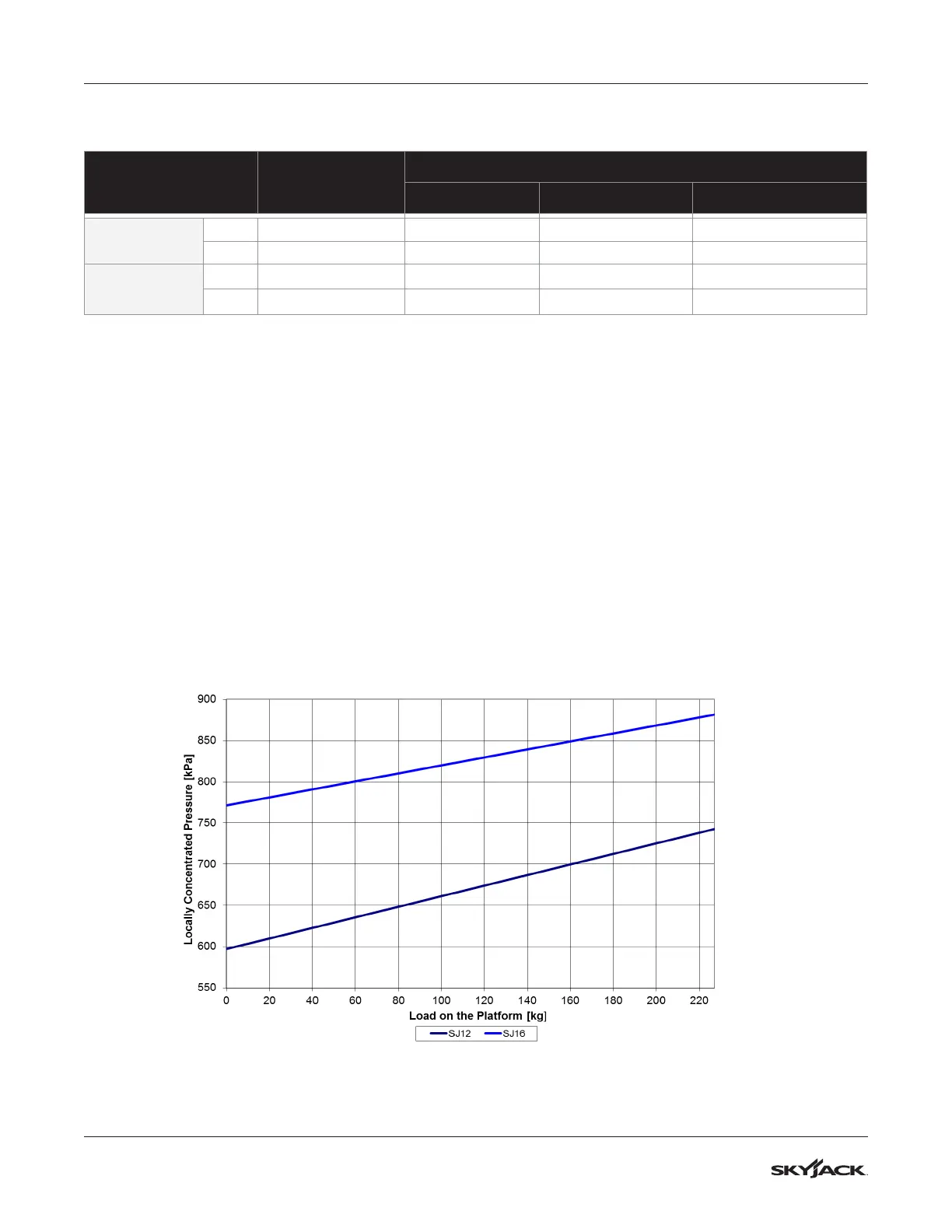

Floor Loading Pressure
SJ16
SJ12

Skyjack SJ16 Specifications

General

Gradeability	25%
Drive Motor	24V DC
Max Gradeability	25%
Platform Height	16 ft
Lift Capacity	500 lbs
Machine Width	0.76 m
Overall Width	0.76 m
Drive Speed (Stowed)	4.8 km/h
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in
Power Source	24V DC Electric
